Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
DWDM Mux Demux
Created with Pixso. Dual Fiber 1x8 Coarse Wavelength Division Multiplexer
Dual Fiber 1x8 Coarse Wavelength Division Multiplexer
  • name

Dual Fiber 1x8 Coarse Wavelength Division Multiplexer

Brand Name: GEZHI or OEM
Model Number: CWDM-1x8-D-1U
MOQ: 1pc
Price: Negotiable
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Product Name:
Dual Coarse WDM
Wavelength:
1470~1610nm
Channel Number:
1x8 CH
Line Type:
Mux & Demux
Connector:
COM:SC/UPC; OTH:LC/UPC
Application:
Cellular Application
Packaging Details:
Paper box
Supply Ability:
100000Channel per month
Highlight:

Dual Fiber CWDM Solution

,

1x8 Coarse WDM

,

8 CH CWDM Mux Demux Module

Product Description



1x8 Coarse WDM Rack Mount Dual Fiber CWDM Solution



GEZHI 1x8 Coarse WDM Rack Mount Dual Fiber CWDM Solution is built-in a 8CH Mux and 8CH Demux in one 19" 1U rack-mount. This 1x8 Coarse WDM Rack Mount Dual Fiber CWDM Solution can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost, low power consumption and small compact, it is widely used in access layer and metro aggregation to do transmission on a short time.



The 1x8 Coarse WDM Rack Mount Dual Fiber CWDM Solution for Short-haul Transmission.  It's protocol and rate transparent supporting such applications as SDH/SONET, 1G/10G Ethernet and 8/4/2/1G Fiber Channel across the same fiber link.



Features

Applications
  • Low insertion loss
  • high channel isolation
  • Wide pass band
  • High stability and reliability
  • Completely passive, no power required
  • WDM network
  • Line monitoring
  • Fiber optical amplifier
  • Cellular Application
  • Access Network
  • Telecommunication



Specification

Parameter 1x8 Coarse WDM
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±6.5
Operating Wavelength (nm) 1470~1610nm
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) <2.5dB
Isolation(dB) Adjacent Channel 30
  Non-Adjacent Channel 45
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -40～85
Connector COM:SC/UPC  OTH:LC/UPC
BOX Package (mm) 19" 1U Rack Mount



Note: 1. Customization is available.

          2. Specification maybe changed without notice.



1x8 Coarse WDM Rack Mount Dual Fiber CWDM Solution​

Filter cascading

Dual Fiber 1x8 Coarse Wavelength Division Multiplexer 0

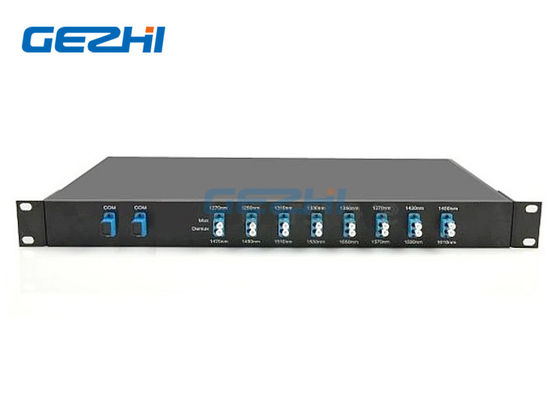

CWDM 19" 1U Rack Mount

Dual Fiber 1x8 Coarse Wavelength Division Multiplexer 1



1x8 Coarse WDM Rack Mount Dual Fiber CWDM Solution

Dual Fiber transmission

Dual Fiber 1x8 Coarse Wavelength Division Multiplexer 2
