Optical Add Drop Multiplexer
Created with Pixso. 8 Channels Dual Fiber Passive DWDM OADM Multiplexer with 1U Rack Mount for Data Center

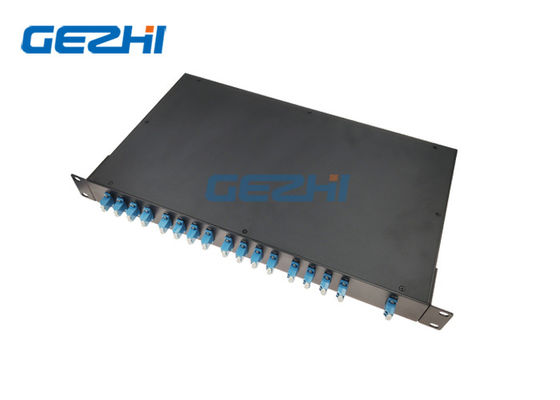

8 Channels Dual Fiber Passive DWDM OADM Multiplexer with 1U Rack Mount for Data Center
  • name

8 Channels Dual Fiber Passive DWDM OADM Multiplexer with 1U Rack Mount for Data Center

Brand Name: GEZHI or OEM
Model Number: 8CH-OADM-D-WE-D-1U
MOQ: 1pc
Price: US$180-US$360
Delivery Time: 5-8 work days
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS ,ISO9001
Product Name:
8CH-OADM-D-WE-D-1U
Wavelength:
C21~C28
Line Type:
Duplex
Channel Passband:
0.8nm (100Ghz)
Application:
Data Center
Package:
1U 19" Rack Mount
Packaging Details:
Paper box
Supply Ability:
100000Channel per month
Highlight:

8 Channels OADMS

,

1x8 oadm optical add drop multiplexer

,

8CH DWDM Mux Demux

Product Description
Fiber Optical Components 1x8 Channels Dual Fiber Passive DWDM OADM Multiplexer
Dual Fiber Passive OADM DWDM Mux Demux Modules
GEZHI DWDM Optical Add/Drop Multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one or multiple DWDM channels into one or two fibers, while allowing the remaining wavelengths to bypass to the required destination. Through DWDM technology, individual channels can be optically extracted from a fiber pair while enabling pass-through traffic to continue unobstructed through the bus or ring network.
Applications
  • Long Haul Networks
  • Dense WDM Systems
  • Wavelength Routing
  • CATV Fiber Optic Links
  • Channel Add/Drop
  • Metro Networks
Features
  • Flexible OADM networking
  • Dual Fiber working
  • High Density
  • 8 channels West & East dual sided
  • 2slot 19" 1U Rackmount
Technical Specifications
Parameter Unit Dual Fiber Passive OADM DWDM
Channel Wavelength nm C21~28
Center wavelength Accuracy nm ITU-T Grid @DWDM
Channel Passband nm 0.8 (100Ghz)
Insertion Loss dB <2.5 | <2.5
Channel Ripple dB 0.5
Isolation - Adjacent dB >30
Isolation - Non-adjacent dB >40
Insertion Loss Temperature Sensitivity dB/℃ <0.005
Wavelength Temperature Shifting nm/℃ <0.002
Polarization Dependent Loss dB <0.15
Polarization Mode Dispersion dB <0.1
Directivity dB >50
Return Loss dB >45
Maximum Power Handling mW 300
Operating Temperature ℃ -20~+70
Storage Temperature ℃ -40~85
Package dimension mm 19" 1U Rack Mount
Filter Cascading Configuration
8 Channels Dual Fiber Passive DWDM OADM Multiplexer with 1U Rack Mount for Data Center 0
Dual Fiber DWDM OADM Add and Drop Module
1x8 Channels Dual Fiber Passive OADM DWDM Mux Demux Modules dual fibers configuration.
8 Channels Dual Fiber Passive DWDM OADM Multiplexer with 1U Rack Mount for Data Center 1
8 Channels OADM Multiplexer West and East Two Fiber 32 filters
8 Channels Dual Fiber Passive DWDM OADM Multiplexer with 1U Rack Mount for Data Center 2
