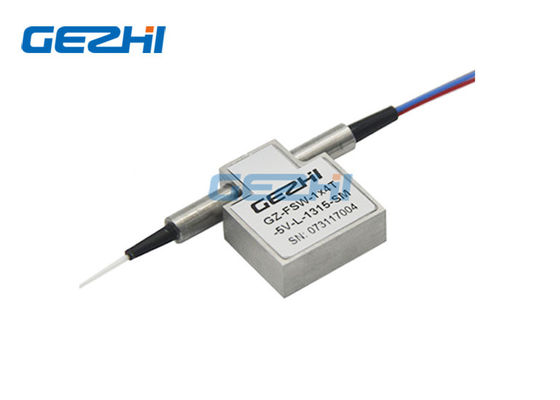

FSW-1x4T Mini Opto-Machanical Optical Switches Bi-directional
GEZHI Series FSW-1x4T Mini Opto-Machanical Optical Switches Bi-directional connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The FSW-1x4T Mini Opto-Machanical Optical Switches Bi-directional has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedentedhighstabilityas wellas unmatchedlowcost.
|
Features |
Applications |
|
|
Specification
| 1x4 T Type Switch | Unit | Typical |
| Operation Wavelength | nm | 850nm or 1310/1490/1550nm |
| Insertion Loss 1 | dB | <0.8 |
| Wavelength Dependent Loss | dB | <0.2 |
| Polarization Dependent Loss | dB | <0.2 |
| Return Loss | dB | SM: >55 MM:>40 |
| Cross Talk | dB | SM: >55 MM:>40 |
| Switching Time | ms | Typical: 4 Max:10 |
| Repeatability | dB | <±0.02 |
| Durability | Cycles | >10 Million |
| Switching Type | Latching / Non-Latching | |
| Optical Power Handling | mW | <500mW |
| Operating Voltage | VDC | 3V or 5V |
| Operating Temperature | ℃ | -5~+70 |
| Storage Temperature | ℃ | -40~+85 |
| Fiber Type | / | SM/MM Fiber |
| Package Dimension | mm | 27L x 23W x 8.2H |
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.
|
Type |
Sta te |
Optical Route |
Electric Drive | Status Sensor | ||||||||||||||
| Relay 1 (Pin) | Relay 2 (Pin) | Relay 1 (Pin) | Relay 2 (Pin) | |||||||||||||||
| 1 | 5 | 6 | 10 | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 | 2-3 | 3-4 | 7-8 | 8-9 | |||
| 1x4 | A | COM-P1 Black | - | - | GND | V+ | V+ | GND | - | - | close | open | open | close | open | close | clsoe | open |
|
Latch ing |
B | COM-P2 Red | V+ | GND | - | - | - | - | GND | V+ | open | close | close | open | close | open | open | close |
| C | COM-P3 Blue | - | - | GND | V+ | - | - | GND | V+ | close | open | open | close | close | open | open | close | |
| D | COM-P4 White | V+ | GND | - | - | V+ | GND | - | - | open | close | close | open | open | close | close | open | |
|
Non- Latch ing |
A | COM-P1 Black | - | - | - | - | V+ | - | - | GND | close | open | open | close | open | close | close | open |
| B | COM-P2 Red | V+ | - | - | GND | - | - | - | - | open | close | close | open | close | open | open | close | |
| C | COM-P3 Blue | - | - | - | - | - | - | - | - | close | open | open | close | close | open | open | close | |
| D | COM-P4 White | V+ | - | - | GND | V+ | - | - | GND | open | close | close | open | open | close | close | open | |
Ordering Information
GZ-FSW-1x4T-x-xx-x-x-xx-xx-x
| X | XX | X | X | XX | XX | X |
| Mode | Wavelength | Voltage Type | Control Model | Fiber Diameter | Fiber Length | Connector |
|
S=SM 9/125 M5=MM 50/125 M6=MM 62.5/125 |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm 760=760nm 1742=1742nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
25=250um 90=900um |
05=0.5m 10=1.0m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
Optical Route
Dimension
