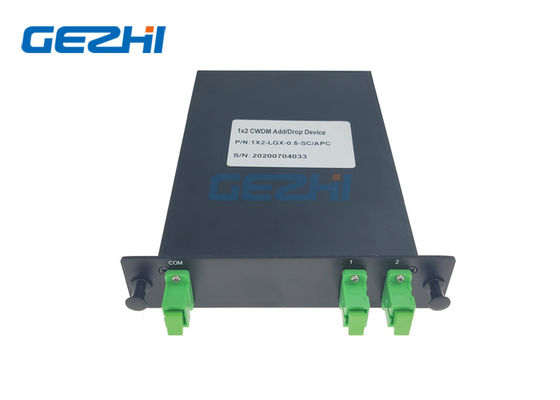

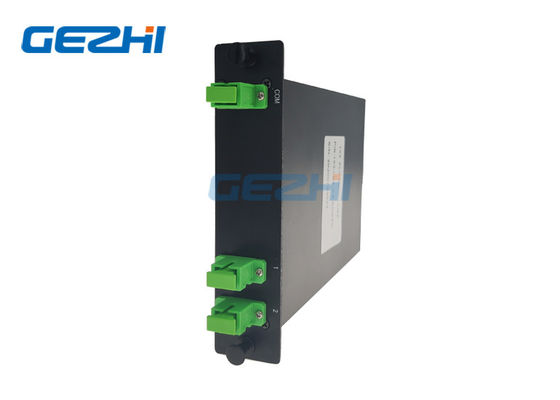

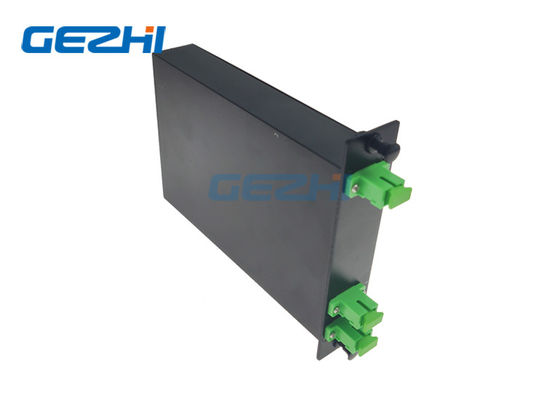

1510nm 1x2 CWDM Single Add Drop Passive Multiplexer Module

Name: 1510nm 1x2 CWDM Single Add Drop Passive Multiplexer Module
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x2-CWDM
Price: 1.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1x2-CWDM
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

CWDM Single Device

Wavelength:

1510nm

Port:

Three Port

Package:

LGX Cassette

Connector:

SC/APC Adaptor

Application:

Channel Add/Drop

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

1x2 CWDM Module

1510nm passive cwdm

CWDM Multiplexer Module

Product Description

1x2 CWDM Single device Add/Drop Passive Multiplexer Module

GEZHI’s 1x2 CWDM Single device Add/Drop Passive Multiplexer Module are based on its unique TFF technology that provides a high quality CWDM device with high channel isolation, low polarization dependent loss, flat and wide passband, and stable environmental performance with competitive price. This 1x2 CWDM Single device Add/Drop Passive Multiplexer Module are epoxy-free in the optical path and are in compliance with RoHS .

The 1x2 CWDM single modules are Course Wave Division Multiplexing (CWDM) Optical Add/Drop Multiplexers (OADM). The 1x2 CWDM single modules add (multiplex) or drop (demultiplex) selected channels, or wavelengths, on both directions of a CWDM common fiber link. Using this modules, network designers can add new access points anywhere on a CWDM network, without impacting the remaining channels traversing the network. Access points can be added to linear, bus, and ring networks, where the Bi-direction ring design provides redundant protected architecture.

Features	Applications
Exceptionally Stable and Reliable Telcordia GR-1221 Compliant Flat and Wide Passband Low Polarization Dependent Loss Thin-Film-Filter based	Expanding Existing CWDM Systems Channel Add/Drop Metro/Access Network Wavelength routing CATV Fiber Optic Links

Specification

Parameter		Specification
Channel Wavelength (nm)		1270 ~ 1610 or 1271 ~ 1611
Center wavelength Accuracy (nm)		±0.5
Channel Spacing (nm)		20
Channel Passband (@-0.5dB bandwidth (nm)		±7.5
Pass Channel Insertion Loss (dB)		≤0.6
Reflection Channel Insertion Loss (dB)		≤0.4
Channel Ripple (dB)		<0.3
Isolation (dB)	Adjacent	>30
	Non-adjacent	>40
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion		<0.1
Directivity (dB)		>50
Return Loss (dB)		>45
Maximum Power Handling (mW)		300
Opterating Temperature (℃)		-20~+75
Storage Temperature (℃)		-40~85
Package		LGX cassette

1x2 CWDM Single device Add/Drop Passive Multiplexer Module

1x2 CWDM Add/Drop Single device filter

1x2 CWDM Add/Drop Single Solution
