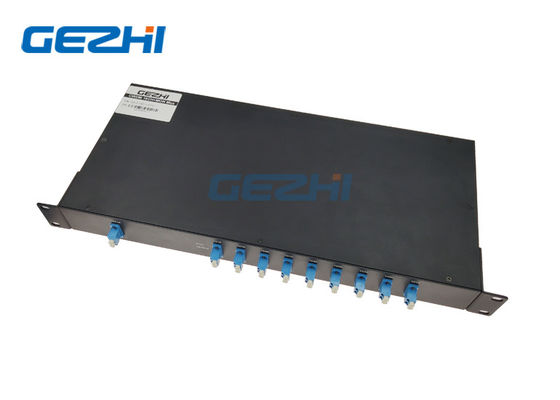

1 Monitor Port Single Fiber 1610nm 16 Channel CWDM Mux Demux

1 Monitor Port Single Fiber 1610nm 16 Channel CWDM Mux Demux
1 Monitor Port Single Fiber 1610nm 16 Channel CWDM Mux Demux

Large Image :  1 Monitor Port Single Fiber 1610nm 16 Channel CWDM Mux Demux

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS FCC,ISO9001
Model Number: 16CH-CWDM-M-1RU
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Product Name: Optical CWDM Equipment Wavelength: 1310~1610nm
Line Type: Single Fiber Connector: LC/UPC Or Customized
Feature: High Channel Isolation Application: Line Monitor
High Light:

1610nm optical cwdm equipment

,

16CH fiber optic cwdm cwdm

,

16 Channel cwdm module



Optical CWDM Equipment 16 Channel with 1% Monitor Port



GEZHI Optical CWDM Equipment 16 Channel with 1% Monitor Port based on dielectric thin-film filter technology which designed for integration in low cost Metro and Access networks. The Optical CWDM Equipment 16 Channel with 1% Monitor Port can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost, low power consumption and small compact, it is widely used in access layer and metro aggregation to do transmission on a short time.



Features

Applications

  • Wide pass band
  • High stability and reliability
  • Low insertion loss
  • High channel isolation
  • Epoxy free on optical path
  • WDM network
  • Fiber optical amplifier
  • Access Network
  • Telecommunication
  • Line monitoring
  • Cellular Application



Specification

Parameter



Unit

16CH CWDM
Mux Demux
Channel Wavelength nm 1310~1610nm

Center wavelength

Accuracy

nm ±0.5
Channel Spacing nm 20

Channel Passband

(@-0.5dB bandwidth

nm >14
Max Insertion Loss dB <4.5 or with Skip <3.5 <4.5 or with Skip <3.5
Mux 1% Monitor dB <24.3
Demux 1% Monitor dB <21.5
Channel Ripple dB 0.3

Isolation

Adjacent dB >30
Non-adjacent dB >40

Inertion Loss Temperature

Sensitivity

dB/℃

<0.005

Wavelength Temperature

Shifting

nm/

<0.002

Polarization Dependent

Loss

dB <0.1

Polarization Mode

Dispersion

dB <0.1
Directivity dB .>50
Return Loss dB >45
Maximum Power Handling mW 300
Opterating Temperature -5~+75
Storage Temperature -40~85
Package dimension mm 19" 1U Rack Mount



Note: 1. Customization is available.

2. Specified with connector



Optical CWDM Equipment 16 Channel with 1% Monitor Port

1 Monitor Port Single Fiber 1610nm 16 Channel CWDM Mux Demux 0



Optical CWDM Equipment 16 Channel with 1% Monitor Port

1 Monitor Port Single Fiber 1610nm 16 Channel CWDM Mux Demux 1



16CH CWDM Mux/Demux Equipment Solution

1 Monitor Port Single Fiber 1610nm 16 Channel CWDM Mux Demux 2
