100Ghz One Fiber 1x16 Optical Passive DWDM Equipment

100Ghz One Fiber 1x16 Optical Passive DWDM Equipment
100Ghz One Fiber 1x16 Optical Passive DWDM Equipment 100Ghz One Fiber 1x16 Optical Passive DWDM Equipment 100Ghz One Fiber 1x16 Optical Passive DWDM Equipment 100Ghz One Fiber 1x16 Optical Passive DWDM Equipment

Large Image :  100Ghz One Fiber 1x16 Optical Passive DWDM Equipment

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS ,ISO9001
Model Number: 16CH-DWDM-M-1U
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable

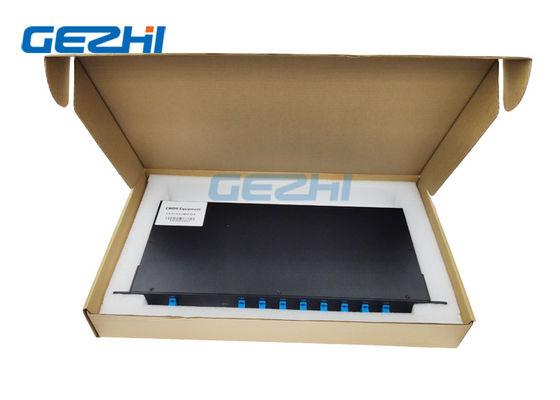

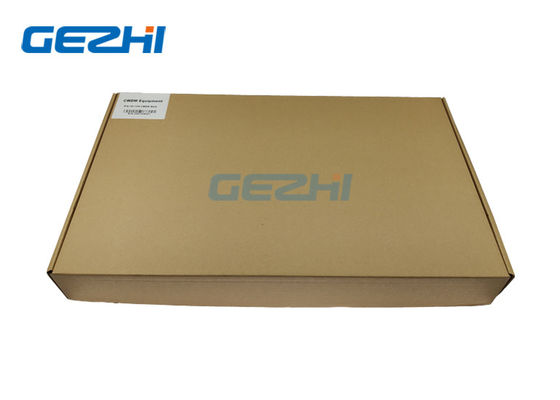

Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Features: Bi-directional Product Name: Passive DWDM Equipment
Wavelength: C21 To C36 Channel Passband: 0.8nm (100Ghz)
Line Type: One Fiber Application: Dense WDM System
High Light:

1x16 passive dwdm mux

,

16CH DWDM Equipment

,

16 Channel DWDM Mux Demux



Optical Passive DWDM Equipment 1x16 Mux Demux one Fiber



GEZHI’ Optical Passive DWDM Equipment 1x16 Mux Demux one Fiber is a low insertion loss, high density passive optical module which based on the thin film coating technology with C21 to C36 wavelength and a express port for future devolopment and fiber extend. The Optical Passive DWDM Equipment 1x16 Mux Demux one Fiber offers an high channel isolation WDM solution for data centers and Metro access applications. Its consist by one Standlone DWDM Muxltiplexer and a Standlone DWDM demultiplexer.  The Optical Passive DWDM Equipment 1x16 Mux Demux one Fiber is ideal for long-haul transport of fiber optic singals all over a single fiber.



Features

Applications

  • 16 channels per fiber
  • Single Fiber Bi-directional
  • standalone in 19" 1U Rack Mount
  • High stability and reliability
  • Access / Enterprise Networks
  • CATV Fiber Optic Links
  • Dense WDM Systems
  • Metro Networks
  • Long Haul Networks



Specification

Parameter Unit 1x16CH Passive Dense WDM
Channel Number -- 16 Channel
Operation Wavelength nm C21~C36
Channel Central Wavelength nm ITU-T Grid @DWDM
Channel Passband nm <5.0 or add Skip <3.2dB
Insertion Loss @PB dB <2.5
Isolation @Adjacent Channel dB >30
Isolation @Non-adjacent Channel dB >40
Isolation @Reflect Channel dB >15
Passband Ripple dB <0.5
Polarization Dependent Loss dB <0.15
Polarization Mode Dispersion ps <0.1
Directivity & Return Loss dB Directivity: >50 Return Loss:>45
Power Handling mW <500
Connector -- LC/UPC
Fiber Type -- SMF-28e or Customized
Operating Temperature -20 ~ +70
Storage Temperature -40 ~ +85
Package Dimension mm 19" 1U Rack Mount



1x16 Optical Passive DWDM Equipment Filter Cascading

100Ghz One Fiber 1x16 Optical Passive DWDM Equipment 0



Rack Mount type 1x18 CH DWDM Mux equipment

100Ghz One Fiber 1x16 Optical Passive DWDM Equipment 1

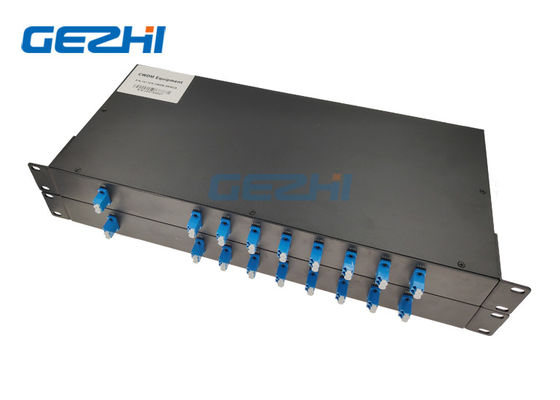

Standlone 1x16 DWDM Mux Demux splitter equipment transmission over Single Fiber

100Ghz One Fiber 1x16 Optical Passive DWDM Equipment 2
