| Features: | Low Polarization Dependent Loss | Product Name: | 5G DWDM OMUX |
|---|---|---|---|
| Wavelength: | CH38~CH43 | Central Wavelength: | 100G ITU CH38~CH43 |
| Connector: | COM&EXT: SC/PC Other: LC/UPC | Application: | 5G Fronthaul |
| High Light: | 5G DWDM OMUX Modules,CH43 dwdm device,1542.94nm dwdm multiplexer |
||

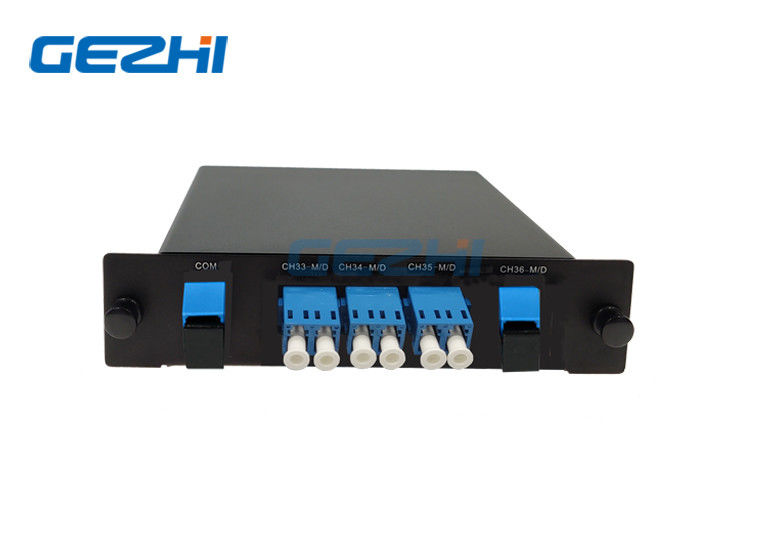

6CH 5G DWDM OMUX Modules
GEZHI's 6CH 5G DWDM OMUX Modules based on TFF technology with 6 low dispersion channels which is suitable for long-distance, large-capacity trunk network, or ultra-large capacity MAN core nodes. This 6CH 5G DWDM OMUX Modules consist by Central Office Terminal (COT) and Remote Terminal (RT). GEZHI 6CH 5G DWDM OMUX Modules features with ultra low loss and super thermal stability, and high reliability, thereby enabling it to be a high capacity, low cost solution for DWDM system or WDM PON network applications.
|
Features |
Applications |
|
|
Specification
| Parameters | Unit | 5G DWDM OMUX | ||
| COT | RT | |||
| Central Wavelength | nm |
C38~C43 1546.92/1546.12/1545.32 1544.53/1543.73/1542.94 |
||
| Insertion Loss | C38 1546.81~1547.03 | dB | <2.4 | <1.7 |
| C39 1546.01~1546.23 | dB | <2.2 | <1.9 | |
| C40 1545.21~1545.43 | dB | <2.1 | <2.0 | |
| C41 1544.42~1544.64 | dB | <2.0 | <2.1 | |
| C42 1543.64~1543.84 | dB | <1.9 | <2.2 | |
| C43 1542.83~1543.05 | dB | <1.7 | <2.4 | |
|
Express 1562.5~1542.25 to 1547.61~1617.5 |
dB | <0.7 | <0.4 | |
| Link Insertion Loss | Channel Port | dB | <4.3 | |
| EXP Port | dB | <1.6 | ||
| Adjacent Channel Isolation | dB | >25 | ||
| Non-Adjacent Channel Isolation | dB | >35 | ||
| EXP Channel Isolation | dB | >10 | ||
| Return Loss | dB | >50 | ||
| Directivity | dB | <50 | ||
| Operating Temperature | °C | -30 to +85 | ||
| Connector Type | / | COM&EXP: SC/UPC; Other: LC/UPC | COM&EXP: SC/APC; Other: LC/APC | |
6CH 5G DWDM OMUX Modules
High Quality TFF Technology
Adopting high quality TFF technology, this 6CH 5G DWDM OMUX Modules provides low insertion loss in a compact package.
Industrial Temperature
The Optical Passive 6CH 5G DWDM OMUX Modules supports industrial temperature -30 ℃ ~ +85 ℃ that is suitable for outdoor application.
Customizable
The LGX module type has a variety of package sizes and wavelength options. It can also be customized according to customer requirements, such as mini size, one-way or two-way, upgrade port, etc.
