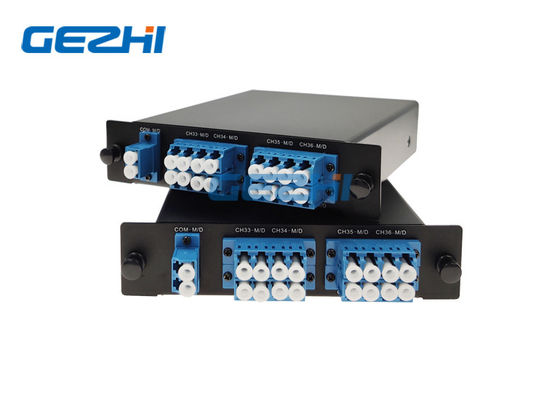

1x8 CWDM Fiber Optical Multiplexer Demultiplexer System

1x8 CWDM Fiber Optical Multiplexer Demultiplexer System
1x8 CWDM Fiber Optical Multiplexer Demultiplexer System

Large Image :  1x8 CWDM Fiber Optical Multiplexer Demultiplexer System

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: 8CH-CWDM-MD-LGX
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Product Name: Fiber Optical Multiplexer Wavelength: 1470~1610
Channel Number: 1x8 Connector: LC/UPC
Line Type: Dual Fiber Application: Cellular Application
High Light:

1x8 Fiber Optic CWDM

,

8CH Fiber Optical Multiplexer

,

8CH CWDM Mux Demux Module



CWDM Fiber Optical Multiplexer Demultiplexer System



The CWDM Fiber Optical Multiplexer and Demultiplexer System is combine and split the multi-wavelength optical signals over dual fiber. GEZHI's  CWDM Fiber Optical Multiplexer Demultiplexer System let operators make full use of available fiber bandwidth in local loop and enterprise architectures. This CWDM Fiber Optical Multiplexer Demultiplexer System with 8 channel wavelength duplex configurations with plug-in LGX cassette package.



Features Applications
  • CWDM Mux/Demux/OADM
  • ITU CWDM Grid
  • Low Loss & Highly Reliable
  • Telecom Networks
  • Metro Networks
  • Optical Add/Drosp Multiplexing



Specification

Parameter 8CH CWDM Mux+Demux
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±6.5
Operating Wavelength (nm) 1470~1610
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) <2.5dB
Isolation(dB) Adjacent Channel 30
  Non-Adjacent Channel 45
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -10~+70
Storage Temperature (℃) -40~85
BOX Package (mm) LGX cassette



CWDM Fiber Optical Multiplexer Demultiplexer System Filter Cascading

1x8 CWDM Fiber Optical Multiplexer Demultiplexer System 0



Optical Passive 8CH CWDM Mux and Demux Plug-in LGX cassette

1x8 CWDM Fiber Optical Multiplexer Demultiplexer System 1



1x8 Channels CWDM mux and demux modules solution

1x8 CWDM Fiber Optical Multiplexer Demultiplexer System 2
