Two Fiber Dual 8 Way C28 Optical DWDM Mux Demux

Two Fiber Dual 8 Way C28 Optical DWDM Mux Demux
Two Fiber Dual 8 Way C28 Optical DWDM Mux Demux

Large Image :  Two Fiber Dual 8 Way C28 Optical DWDM Mux Demux

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS ,ISO9001
Model Number: 8CHDWDM-MD-LGX
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Features: Passive Device Product Name: Optical Mux/Demux Modules
Wavelength: C21 To C28 Line Type: Two Fiber
Connector: LC/PC Adaptor Application: DWDM Networks
High Light:

Optical Mux Demux Modules

,

8 Channel DWDM Mux

,

8CH DWDM Equipment



DWDM DUAL 8 WAY OPTICAL MUX/DEMUX Modules



GEZHI’ DWDM DUAL 8 WAY OPTICAL MUX/DEMUX Modules is a low insertion loss, high density passive optical module which based on the thin film coating technology with C21 to C28 wavelength. The DWDM DUAL 8 WAY OPTICAL MUX/DEMUX Modules offers an high channel isolation WDM solution for data centers and Metro access applications. Its package a 8CH DWDM mux and 8CH DWDM Demux module in a plug-in LGX Cassette with LC/UPC adaptor.  The DWDM DUAL 8 WAY OPTICAL MUX/DEMUX Modules is ideal for long-haul transport of fiber optic singals all over a dual fiber.



Features

Applications

  • High channel Isoltion

  • Epoxy-Free Optical Path

  • Low insertion loss
  • Passive device
  • Bi-directional traffic
  • Dark fiber networks
  • DWDM networks
  • CWDM extension
  • Optical video networks
  • Broadcast contribution network



Specification

Parameter Unit 8ch low loss DWDM equipment
Channel Number -- 8 Channel
Operation Wavelength nm C21~C28
Channel Central Wavelength nm ITU-T Grid @DWDM
Channel Passband nm 0.8 (100Ghz)
Insertion Loss @PB dB <2.5
Isolation @Adjacent Channel dB >30
Isolation @Non-adjacent Channel dB >40
Isolation @Reflect Channel dB >15
Passband Ripple dB <0.5
Polarization Dependent Loss dB <0.15
Polarization Mode Dispersion ps <0.1
Directivity & Return Loss dB Directivity: >50 Return Loss:>45
Power Handling mW <500
Connector -- LC/UPC
Fiber Type -- SMF-28e or Customized
Operating Temperature -20 ~ +70
Storage Temperature -40 ~ +85
Package Dimension mm LGX cassette



DWDM DUAL 8 WAY OPTICAL MUX/DEMUX Modules filter cascading

Two Fiber Dual 8 Way C28 Optical DWDM Mux Demux 0

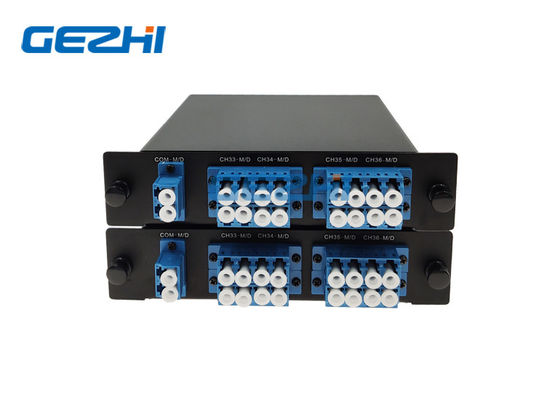

8 WAY DWDM Multiplexer and demultiplexer Plug-in LGX box

Two Fiber Dual 8 Way C28 Optical DWDM Mux Demux 1



8 WAY DWDM Optical Multiplexer and Demultiplexer Modules tansimission over dual fiber

Two Fiber Dual 8 Way C28 Optical DWDM Mux Demux 2
