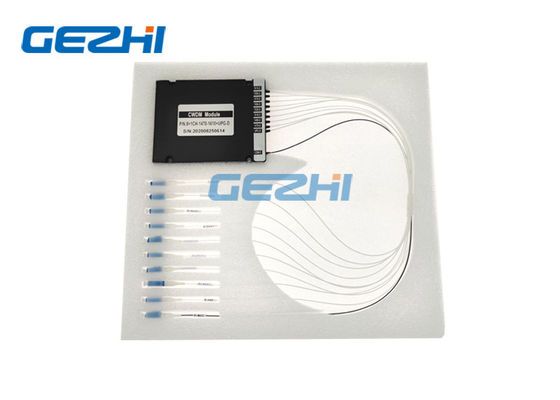

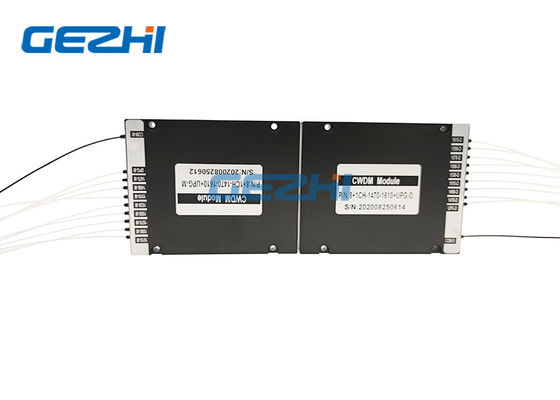

1610nm LC/UPC Connector 8 Channel CWDM Passive Multiplexer

1610nm LC/UPC Connector 8 Channel CWDM Passive Multiplexer
1610nm LC/UPC Connector 8 Channel CWDM Passive Multiplexer 1610nm LC/UPC Connector 8 Channel CWDM Passive Multiplexer

Large Image :  1610nm LC/UPC Connector 8 Channel CWDM Passive Multiplexer

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: CWDM8CH47A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Product Name: Optical Multiplexer Modules Wavelength: 1470~1610nm+UPG
Channel Number: 1x8 Line Type: Mutiplexing
Connector: LC/UPC Application: Access Network
High Light:

8 Channel CWDM Passive Multiplexer

,

UPC Connector CWDM Passive Multiplexer

,

1610nm Optical Multiplexer Modules



8‐channel optical multiplexer modules



GEZHI Photonics Co.,Ltd 's Optical Multiplexing and Distribution of PASSIVE OPTICS



Its used in point to point system can be upgraded by just replacing the transmitter SFP's to CWDM SFP's plus the appropriate multiplexer.

The ease of use and flexible format features make the miniHUB platform the best choice for all advanced installations.


8 Channel CWDM Filter/Mux with Express port for Video and Data applications.



Features

High stability and reliability

high channel isolation

Ultra low insertion loss

Wide pass band

Protocal and rate transparent for applications up to 10Gbps
Completely passive, no power& no cooling required



Applications

WDM network
Fiber optical amplifier

Cellular Application

Access Network

Line monitoring

Telecommunication



Specification

Parameter 8CH Mux or Demux
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±6.5
Operating Wavelength (nm) 1470~1610nm + UPG
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) <2.5dB
Isolation(dB) Adjacent Channel 30
  Non-Adjacent Channel 45
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -40~85
Connector LC/UPC
BOX Package (mm) ABS box 100x80x10



Note: 1. Customization is available.

          2. Specification maybe changed without notice.



8‐channel optical multiplexer modules

Filter cascading

1610nm LC/UPC Connector 8 Channel CWDM Passive Multiplexer 0



8‐channel optical multiplexer modules Solution

1610nm LC/UPC Connector 8 Channel CWDM Passive Multiplexer 1
