Product Name: Fiber Optic Switch Wavelength: 1260~1650nm
Connector: LC/UPC Interface: TTL
Optical Power: 500mW Application: Ring Network
High Light:

TTL Interface Fiber Optical Switches


1650nm Fiber Optical Switches


1x32 Fibre Optic Network Switch


SM Fiber Optic 1x32 Switch


The SM fiber Optic 1x32 Switch from GEZHI Photonics Co.,Ltd provides channel selection between a single input and N output fibers.

The output channel number is customer specified and it can be 1x8, 1x16, 1x32 or others. It comes with the paralled interface (TTL) and drive circuit breakdown self-checking function.  This 1x32 optical switch can be OEM. Its is based on our advanced fiber optics technology which has good repeatability, low insertion loss, low cost and high performance. The operation wavelength can be from single mode 1260 to 1650nm, multimode 850±40 / 1300±40nm or customized wavelength.



Low Loss

High Reliability

Modularized Design


Ring Network

Multi Light Source

Testing of Fiber, Optical Component
Remote Monitoring in Optical Network


GEZHI's 1x32 stepper motor optical switches are a direct fiber to fiber switch technology, that operates by physically pointing one fiber to the other. This is accomplished by utilizing a high resolution stepper motor to precisely rotate and point the common fiber(s) to the selected output fiber(s).


SM Fiber Optic 1x32 Switch Specification

Parameter Parameter Values
Model GZ-FSW-1X32
Insertion Loss ≤0.8 dB
Wavelength Range 1260~1650 nm
Test Wavelength 1310/1550 nm
Fiber Type SM, 9/125um(SMF-28)
Return Loss ≥50 dB
Crosstalk ≥ 70 dB
PDL ≤0.05 dB
WDL ≤0.25 dB
TDL ≤0.25 dB
Repeatability ≤0.02 dB
Lifetime > 107
Switching Time ≤8 ms (Adjacent channel)
Optic Power ≤500 mW
Connector FC/PC
Control Mode TTL
Working Power Supply 5V/500 mA
Product Sze 135 x 64 x 46
Operating Temperature -20 ℃ to +70 ℃
Operating Temperature -40 ℃ to +85 ℃

Note: 1. Customization is available.


Both multimode and single mode versions of this switch are available. They feature high level of
performance required for multi-unit testing in R&D and in manufacturing environments. They are also
highly suitable for applications in telecommunications, manufacturing, and test environments, because of
their low IL and excellent repeatability. In addition to the many standard options available, we also
customize switches to meet the customer’s specific needs


SM Fiber Optic 1x32 Switch​ Pin Specifications

DB-15 male connector
Pin No. I / O Signal Description
2 Input D0


D0~ D5 is channel selection Bit0~Bit5,D0 is low, D5 is high

3 Input D1
4 Input D2
5 Input D3
6 Input D4







TTL, Low level reset to channel 0. High level means channel selection bits are effective.
7 Out READY TTL, Ready (High=Not ready, Low=Ready)
8 Out ERROR TTL, Error OR Failure , (High=Error, Low=No error)
1,9 Power GND Ground
12 Power VCC1 5.0±5% VDC Motor Power Supply (max 500mA)
15 Power VCC2 5.0±5% VDC Circuit Power Supply (max 50mA)
4,6,7,8,10,13,14 NC NC vacancy

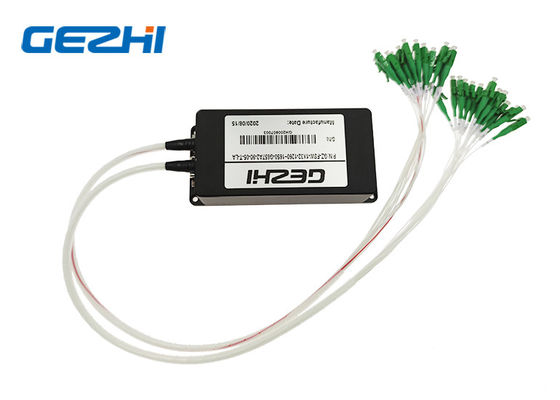

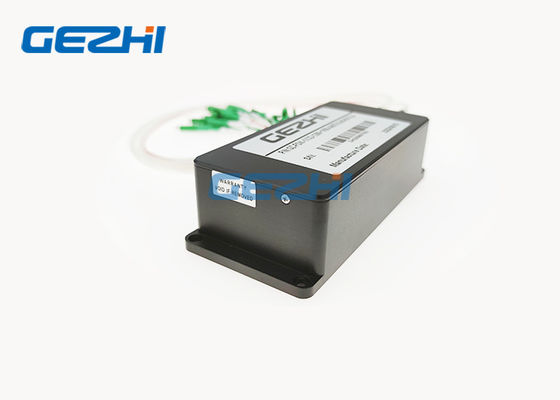

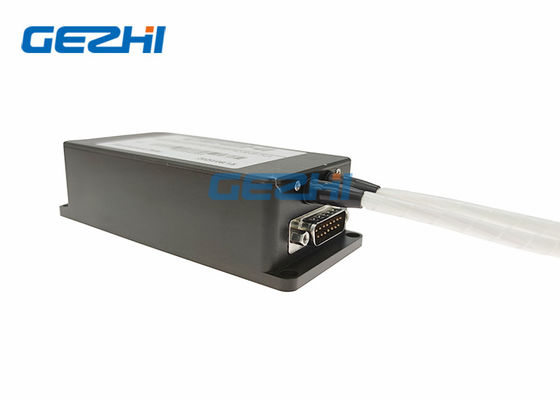

SM Fiber Optic 1x32 Switch​ picture
