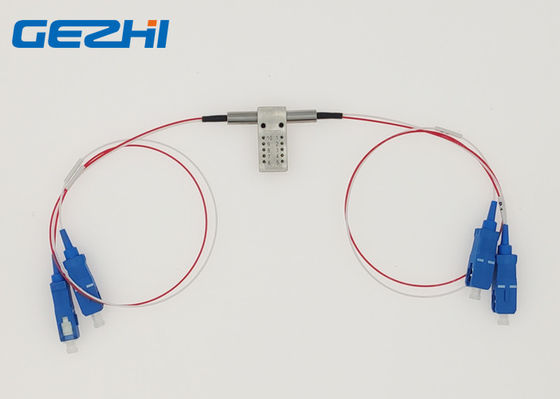

Blocked 1550nm 2x2 Single Optical Bypass Switch SC/UPC

Name: Blocked 1550nm 2x2 Single Optical Bypass Switch SC/UPC
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: Optical Bypass Switch
Price: 360.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	Optical Bypass Switch
MOQ:	1pc
Price:	Negotiable
Delivery Time:	2-7 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

Single Optical Bypass Switch

Wavelength:

1310&1550nm

Control Type:

Blocked

Power Supply:

Connector:

SC/UPC

Application:

Optical Network Protection

Packaging Details:

2pcs in a foam with plastic Box

Supply Ability:

50000pcs per month

Highlight:

2x2 Single Optical Bypass Switch

1550nm Single Optical Bypass Switch

SC/UPC Optical Netrwork Protection Switch

Product Description

Blocked 2x2 Single Optical Bypass Switch in Optical Netrwork Protection/Restoration

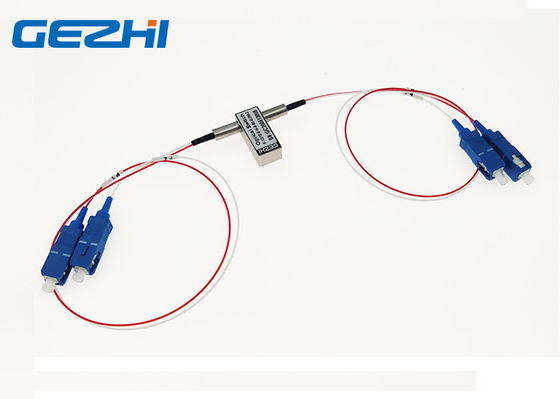

The Blocked 2x2 Single optical Bypass Switch of GEZHI Photonics Co.,Ltd , the optical path through the units is purely optical; i.e. there is no optical to electrical to optical conversion. There is no electrical loss or electrical bandwidth limit on the fiber optic path. The optical path will redirecting an incoming optical signal into a selected output fiber. The 2x2 optical bypass switch with common applications for this device are optical routing, system bypass, ring network restoration, and loop-back testing.

Features

High Channel Isolation
Highly Stable and Reliable

Unmatched Low Cost
Low Insertion Loss
Epoxy Free Optical Path
Blocked or Non-Blocked

Applications

Optical Signal RoutingConfigurable

Optical Add/Drop
Transmitter and Receiver Protection

Optical Netrwork Protection/Restoration
Instrumentation

Network Test Systems

Specification

Parameters		GZ-FSW-2×2B
Wavelength Range	nm	850±40/1300±40	1260～1650
Operating avelength	nm	850/1300	1310/1490/1550/1625/1650
Insertion Loss	dB	Typ:0.8 Max:1.2	Typ:0.6 Max:0.8
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	v	3.0 or 5.0
Lifetime	times	≥10⁷
Switch Time	ms	≤8
Transmission Power	mW	≤500
Operating Temperature	℃	-20～+70
Storage Temperature	℃	-40～+85
Weight	g	16
Dimension	mm	(L)27.0×(W)12.0×(H)8.2 customization is available.

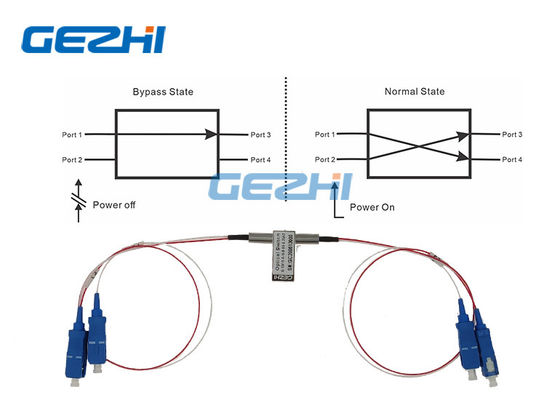

Optical Route

Status One

Status Two

2x2 Bypass Mechanical Fiber Optic Switch 1310 / 1550nm Latching OXC system

Pins

Parameters	Pins	Electric Drive				Status Sensor
2×2B	Optical Path	1	5	6	10	2-3	3-4	7-8	8-9
Non-latching	P1-P3	--	--	--	--	Close	Open	Open	Close
Non-latching	P1-P4,P2-P3	V+	--	--	GND	Open	Close	Close	Open
latching	P1-P3	--	--	GND	V+	Close	Open	Open	Close
latching	P1-P4 P2-P3	V+	GND	--	--	Open	Close	Close	Open

Order Information

GZ-FSW-2×2B

Mode

Wavelength

Voltage Type

Control Model

Fiber Type

Fiber Diameter

Fiber Length

Connector

S=SM
M=MM

85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others

3=3V
5=5V

L=Latching
N=Non- Latching

5=50/125
6=62.5/125
9=9/125
X=Others

25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others

1=1m
2=1.5m
X=Others

0=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC

X=Others
