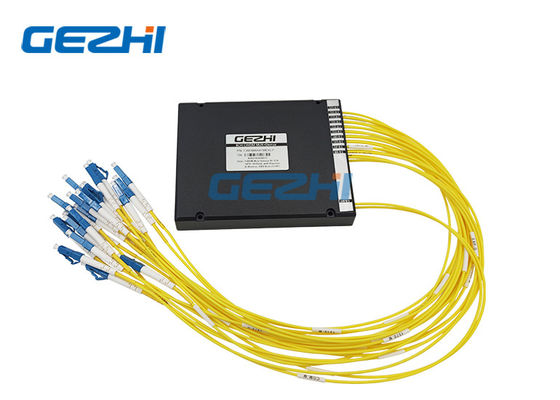

1x8 Bidirectional CWDM Mux Demux Duplex Fiber LC UPC Connector

Brand Name:	GEZHI or OEM
Model Number:	CWDM8CHAME47LP
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Features:

Low Insertion Loss

Product Name:

CWDM Duplex

Wavelength:

1470~1610nm+EXP+MON

Channel Number:

8+1CH

Connector:

LC/UPC

Application:

Data Center

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

Bidirectional CWDM Mux Demux

Duplex Fiber CWDM Mux Demux

LC UPC Optical Mux Demux

Product Description

1% Monitor port 1x8 CWDM Mux Demux duplex fiber

The CWDM Mux demux dual fiber bidirectional solution of GEZHI Photonics supports up to 18 coarse wavelength channels (1270 – 1610nm) for full transmitting and receiving of CWDM signals over duplex singlemode fiber. In this configuration, all 18 CWDM channels are utilized in both directions of the network. This offers a low-cost method for utilizing the bandwidth capacity on existing fiber. GEZHI Photonics passive CWDMs are available with an optional upgrade port to allow for incremental future channel add-ons.

CWDM Mux Demux can be ordered in many options:

2 to 18 Channels (the most common are 4, 8, and 16 Channels)
Upgrade / Express port
Monitor port
ABS Box, LGX Module, Rack-mount
LC/APC, LC/UPC, SC/APC, SC/UPC, FC/APC, FC/UPC etc.

Features	Applications
Low Insertion Loss Fully Passive: No Power Supply or Cooling Protocol & Data Rate neutral 8 CWDM Data Streams over Double SMF	Telecommunication WDM Network Cellular Application Line monitoring

Specification

Parameter		CWDM Mux/Demux Unit
Center Wavelength (nm)		ITU, ITU+1
Passband (nm)		ITU±7.5
Operating Wavelength (nm)		1470~1610nm + 1% MON + EXP
Channel Space (nm)		20
Fiber Type		SMF-28e or customer specified
IL (dB)		<2.5dB
Isolation(dB)	Adjacent Channel	30
	Non-Adjacent Channel	45
PDL (dB)		0.2
PMD (ps)		0.1
Return Loss (dB)		45
Directivity (dB)		50
Maximum Optical Power (mw)		500
Operating Temperature (℃)		-20~+70
Storage Temperature (℃)		-40～85
Connector		LC/UPC
Package (mm)		ABS Box 141x115x18

Note: 1. Customization is available.

2. Specification maybe changed without notice.
