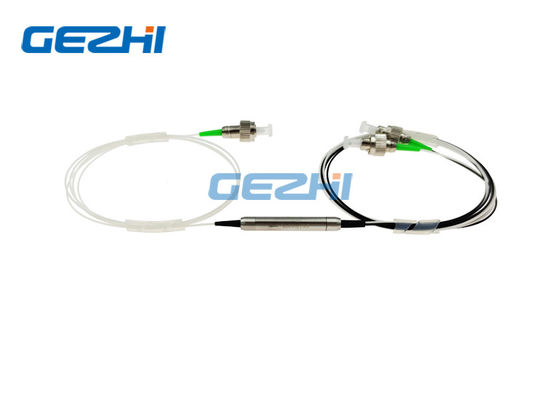

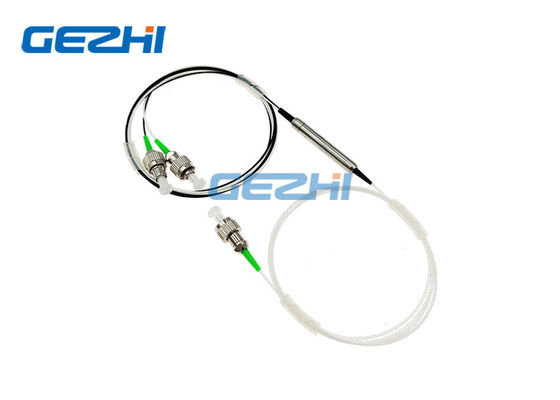

Red Blue Pass MWDM 1x2 DWDM Splitter Filter FC APC Connector

Name: Red Blue Pass MWDM 1x2 DWDM Splitter Filter FC APC Connector
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x2FWDM-R/B
Price: 7.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1x2FWDM-R/B
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

Filter WDM

Pass Channel:

1547~1561nm

Reflect Channel:

1530~1543.2

Package:

Stainless Steel Tube

Connector:

FC/APC

Application:

DWDM Single Fiber Solution

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

MWDM Splitter Filter

DWDM Splitter Filter

FC APC Connector Optical Filter

Product Description

C-Band Red/Blue Pass MWDM 1x2 DWDM Splitter filter

This Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path .

GEZHI Photonics CO.,Ltd's provides customized band filters and connectors to meet special control and applications.The filter units are available with steel tubes, 2-slot 1U rack mounts, Pluggable Module, or ABS boxes.

Features

Application

Wide Operating Wavelength Range
Low Insertion Loss
High Channel Isolation
High Stability and Reliability
Ultra Flat Wide Passband
Epoxy Free Optical Path

WDM System
Fiber Optical Amplifier
Fiberoptic Instruments
Transmitters and Fiber Lasers

Performance Specifications

Type		FWDM
Pass Channel Wavelength	nm	1547~1561 (Red)	1530~1543.2 (Blue)
Reflection channel Wavelength	nm	1530~1543.2 (Blue)	1547~1561 (Red)
Pass Channel insertion loss	dB	≤0.60
Reflection Channel insertion loss	dB	≤0.40
Channel Ripple	dB	≤0.3
Adjacent channel isolation	dB	≥30
Express channel isolation	dB	≥12
PDL	dB	≤0.1
PMD	Ps/nm	≤0.1
Directivity	dB	≥55
Return loss	dB	≥50
Power Handling	mW	300
Operating temperature	℃	-5~+70
Storage temperature	℃	-40~+85
Package Dimensions	mm	φ5.5x35

Note: 1. Customization is available.

2. Insertion loss does not include connector, each connector will add 0.2dB loss.

3. Other wavelength can be made upon customer’s request. For example, L-Band R/B, C/L Band.

Ordering Information

Wavelength

Package Spec

Fiber Type

Fiber Diameter

Fiber Length

Connector

R/B=Red/Blue Wavelength

1= Φ5.5mm×35mm

2= 90×20×10 mm

3=100×80×10.5 mm

4= 120×80×18 mm

5=140×115×18 mm

6=19”1U Rackmount

X= Others

9=9/125

X=Others

25=250um

90=900um

20=2.0mm

30=3.0mm

X=Others

05=0.5m

10=1.0m

15=1.5m

X=Others

OO=None

FP=FC/PC

FA=FC/APC

SP=SC/PC

SA=SC/APC

STP=ST/PC

STA=ST/APC

LP=LC/PC

LA=LC/APC

X=Others

DWDM Single Fiber Solution with Red/Blue C Band Filter

The wavelengths traveling over the dark fiber are split into two spectral bands by using Red/Blue C Band Filter at both ends of the dark fiber. It makes it possible to utilize single fiber strand for both transmitting and receiving, thus significantly maximizing investment and decreasing costs.

Red Blue Pass MWDM 1x2 DWDM Splitter Filter FC APC Connector 0

GEZHI also supply customized wavelength Red/Blue Filter WDM, 100Ghz DWDM Mux Demux, CWDM Module, 40channel AWG Module, 2x2 Bypass Optical Switches etc...
