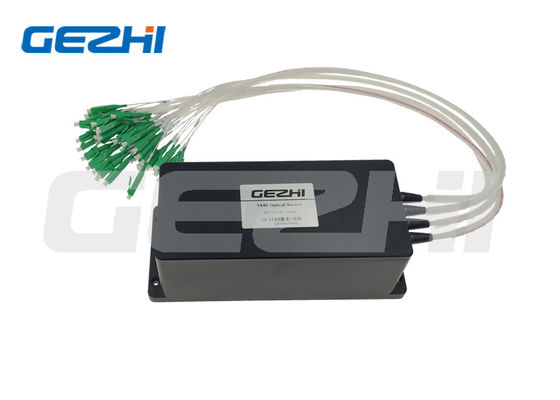

OSW-1x48 Multipath Routing Fiber Optical Switches 1x48 LC APC Connector

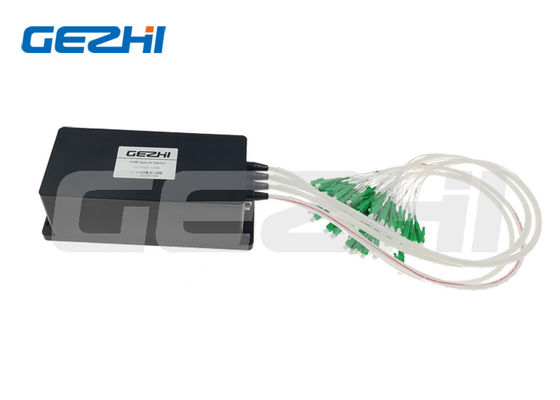

OSW-1x48 Multipath Routing Fiber Optical Switches 1x48 LC APC Connector
OSW-1x48 Multipath Routing Fiber Optical Switches 1x48 LC APC Connector

Large Image :  OSW-1x48 Multipath Routing Fiber Optical Switches 1x48 LC APC Connector

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS FCC,ISO9001
Model Number: GZ-FSW-1x48
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 2pcs in a foam with plastic Box
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 60000pcs per month
Detailed Product Description
Product Name: 1x48 Optical Switch Wavelength: 1310&1550nm
Power Supply: 12V Interface: RS232
Connector: COM: SC/APC OTH: LC/APC Application: R&D In Laboratory
High Light:

Multipath Routing Fiber Optical Switches

,

Fiber Optical Switches 1x48

,

LC APC Mechanical Optical Switches



OSW-1x48 Multipath Routing Optical Switch 1x48 channel LC/APC connector



The OSW-1x48 Multipath Optical Switch is designed to meet the most demanding switching requirements of continuous operation without failure, longevity, operation under shock/vibration environment and large temperature variations. It is an ideal component for OADM,OXC,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.



Features
High Stability, High Reliability
Epoxy-free on Optical Path

Wide Wavelength Range
Low Crosstalk



Applications

OXC

OADM
System Monitoring

R&D in Laboratory




Specification

Parameter Values
Model GZ-FSW-1X48



Insertion Loss

Typ.:0.5 dB

Max.:0.8 dB

Wavelength Range 1260~1650 nm
Test Wavelength 1310/1550 nm
Fiber Type 9/125 um
Return Loss ≥50 dB
Crosstalk ≥ 60 dB
PDL ≤0.05 dB
WDL ≤0.25 dB
TDL ≤0.25 dB
Repeatability ≤0.02 dB
Lifetime >107
Switching Time ≤12 ms (Adjacent channel)
Optic Power ≤500 mW
Connector

Input connector : 1 * SC/APC

Output connectors : 48 * LC/APC

Control Mode RS232, DB-9
Working Power Supply 12V/600 mA
Product Size 184 x 78 x 66
Operating Temperature -20 ℃ to +70 ℃
Storage Temperature -40 ℃ to +85 ℃

Note: 1. Customization is available.

2. Specified without connector, and add an additional 0.2dB loss per connector.


Ordering Information

GZ-FSWM-1xN-x-xx-x-x-xx-xx-x

Channel Fiber Type Test Wavelength Tube Type Fiber Length Connector
1 ~ 128 SM: SM, 9/125
M5: MM, 50/125
M6: MM, 62.5/125
X: Others
850: 850nm
1310: 1310nm
1550: 1550nm
13/15:1310/1550nm
X:Others
90: 900um
20: 2.0mm
30: 3.0mm
X: Others
05: 0.5m
10: 1.0m
15: 1.5m
X: Others
OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
STP: ST/PC
STA: ST/APC
LP: LC/PC
LA: LC/APC
X: Others



Gezhi is a factory of fiber optical passive product located in Shenzhen, China. We comply with ISO9001 standard and all our product comply with RoHS. We produce Optical Switch, WDM, AWG product with stable performance and competetive price.
Optical Switch: 1x1, 1x2, 2x2Bypass, 2x2Full, 1x4, 1x8, 1XN all series optical switches.
WDM: CWDM, DWDM, FWDM, AWG all series WDM product.
