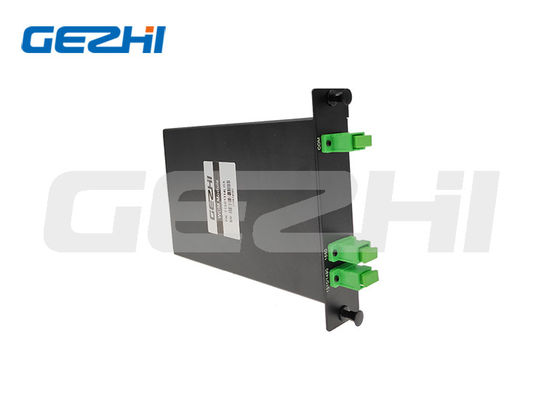

SC APC LGX Cassette FTTH Filter WDM 1550nm Wdm Fiber Optic Multiplexer

SC APC LGX Cassette FTTH Filter WDM 1550nm Wdm Fiber Optic Multiplexer
SC APC LGX Cassette FTTH Filter WDM 1550nm Wdm Fiber Optic Multiplexer

Large Image :  SC APC LGX Cassette FTTH Filter WDM 1550nm Wdm Fiber Optic Multiplexer

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: FWDM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Connector: SC/APC Wavelength: 1310/1490/1550nm
Application: FTTH Package: LGX Cassette
Feature: Low Insertion Loss Port: 3 Port
High Light:

LGX Cassette Filter WDM

,

SC APC FTTH Filter WDM

,

1550nm Wdm Fiber Optic Multiplexer



Specification

Parameters Unit FWDM Device
Operating Wavelength
T: transmission wavelength
R: reflection wavelength
1310±50,1490±10, 1550±10
1610±10, 1625±25, 1650±20
nm 1 T1550 R1310/1490
2 T1490 R1310/1550
3 T1310 R1490/1550
4 T1550/1610 R1310/1490
5 T1550/1625 R1310/1490
6 T1625 R1310/1490/1550
7 T1650 R1310/1490/1550
Insertion Loss of GPON FTTH WDM dB Transmission: ≤ 0.6
Reflection: ≤ 0.4
Transmission Channel Isolation dB ≥ 30
Reflection Channel Isolation dB ≥ 17
PDL of WDM in Optical Fiber dB ≤ 0.1
Wavelength thermal stability nm/℃ ≤ 0.003
Insertion loss thermal stability dB/℃ ≤ 0.005
Return loss dB ≥ 45
Optical Power mW ≤ 500
Operating Temperature -10 ~ +70
Storage Temperature -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm Φ5.5×34 Φ4.2×25 90×20×10
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.





Features and Applications



Features:

Low PDL
RoHS compliant

Low insertion loss
Optical path epoxy free





Applications:

CATV

FTTH

GPON
WDM system



Product Overview



SC APC LGX Cassette FTTH Filter WDM 1550nm Wdm Fiber Optic Multiplexer



1310 1490 1550nm wdm in optical fiber GPON FTTH WDM



GEZHI 1310 1490 1550nm wdm in optical fiber GPON FTTH WDM is based on thin film filter technology. The device features epoxy free optical path, low insertion loss, high extinction ratio, high reliability and high stability.



The 3 port FWDM device packed in a LGX cassette with SC/APC connector. which can use on CATV network.

We can support customized design with several unit combo in a LGX box.






Oder Information

A B C D E
Wavelength Tube Type Fiber Length
(Include connector)
Connector Dimension

T15R13/14=T1550 R1310/1490

T14R13/15=T1490 R1310/1550

T13R14/15=T1310 R1490/1550

T15/16R13/14=T1550/1610R1310/1490

X=Others

25=250um

90=900um 20:2000um

30=3000um

X=Others

05=0.5m±0.05m

10=1.0m±0.05m

15=1.5m±0.05m

X= Others

00=None

FP=FC/PC

FA=FC/APC

SP= SC/PC

SA=SC/APC

STP=ST/PC

STA=ST/APC

LP=LC/PC

LA=LC/APC

X=Others

A1=ABS box 100x80x10mm

A2=ABS box 120x80x18mm

A3=ABS box 140x115x18mm

L1=LGX 129*29*130mm

L2=LGX insert in 2slot Rack

L4=LGX insert in 4slot Rack

R1=19" 1 U Rack

R2=2slot 19″1U Rack

R4=4slot 19″1U Rack

S=Specify
