500mW DWDM Mux Demux LC UPC 19" 1U Rackmount 0.8nm 1x8

Name: 500mW DWDM Mux Demux LC UPC 19" 1U Rackmount 0.8nm 1x8
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: DWDM8AC21RLP
Price: 1.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	DWDM8AC21RLP
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS ,ISO9001

Features:

High Channel Isolation

Product Name:

DWDM Fiber Optic Over Cwdm

Wavelength:

C21 To C28 Or Customized

Channel Passband:

0.8nm (100Ghz)

Connector:

LC/UPC Adaptor

Application:

Metro Dwdm

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

500mW DWDM Mux Demux

DWDM Mux Demux LC UPC

0.8nm Mux Demux Module

Product Description

DWDM fiber optic over cwdm 1x8 DWDM transport in 19" 1U Rackmount

DWDM fiber optic over cwdm 1x8 DWDM transport in 19" 1U Rackmount. The DWDM channels: C21, C22, C23, C24, C25, C26, C27,C28 and transmission over CWDM bandpass module. it is fully data rate or line protocol neutral – it is possible to use with colored transceivers supporting such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel. It’s simple to install, requires no configuration or maintenance.

Features	Applications
Protocol & Data Rate neutral Low Insertion Loss Easy Installation & Expansion 8 CWDM Data Streams over Double SMF	Long Haul Networks Wavlength Routing Channel Add/Drop

DWDM fiber optic over cwdm 1x8 DWDM transport in 19" 1U Rackmount

Specification

Parameter	Unit	DWDM Fiber Optic Over CWDM
Channel Number	--	1x8
Operation Wavelength	nm	C21~C28
Channel Central Wavelength	nm	ITU-T Grid @DWDM
Channel Passband	nm	0.8 (100Ghz)
Insertion Loss @PB	dB	<2.8
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>40
Isolation @Reflect Channel	dB	>15
Passband Ripple	dB	<0.5
Polarization Dependent Loss	dB	<0.15
Polarization Mode Dispersion	ps	<0.1
Directivity & Return Loss	dB	Directivity: >50 Return Loss:>45
Power Handling	mW	<500
Connector	--	LC/UPC
Fiber Type	--	SMF-28e or Customized
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85
Package	mm	Standard 19" 1U Rackmount

Ordering Information

DWDM

Number of Channels

Configuration

First Channel

Last Channel

Module type

Cable type

Fiber length

Connector

DWDM

100G=100Ghz

200G=200Ghz

01=1 CH
02=2 CH
03=3 CH
......
16=16CH
17=17CH
18=18CH

......

M=Mux

D=Demux

A=Mux+Demux

C21=C21

C22=C22

C21=C23

......

C59=C53

C60=C60

C61=C61

S=Specify

C21=C21

C22=C22

C21=C23

......

C59=C53

C60=C60

C61=C61

S=Specify

A1=ABS box 100x80x10mm

A2=ABS box 120x80x18mm

A3=ABS box 140x115x18mm

L1=LGX 129*29*130mm

L2=LGX insert in 2slot Rack

L4=LGX insert in 4slot Rack

R1=19" 1 U Rack

R2=2slot 19″1U Rack

R4=4slot 19″1U Rack

S=Specify

09=900um loose tube
20=2.0mm
30=3.0mm

05=0.5m

10=1.0m
15=1.5m
S=Specify

00=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
S=Specify

DWDM fiber optic over cwdm 1x8 DWDM transport in 19" 1U Rackmount

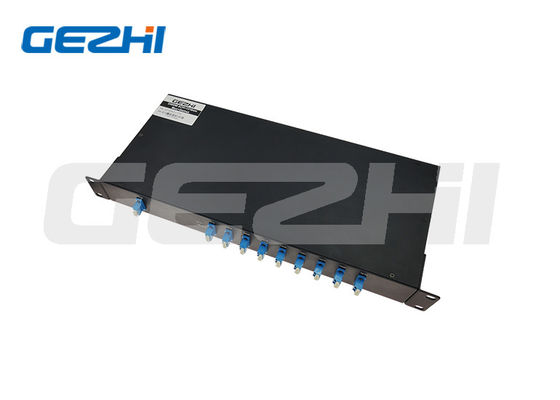

500mW DWDM Mux Demux LC UPC 19" 1U Rackmount 0.8nm 1x8 0

DWDM fiber optic over cwdm 1x8 DWDM transport in 19" 1U Rackmount

500mW DWDM Mux Demux LC UPC 19" 1U Rackmount 0.8nm 1x8 1

DWDM fiber optic over cwdm 1x8 DWDM transport in 19" 1U Rackmount

500mW DWDM Mux Demux LC UPC 19" 1U Rackmount 0.8nm 1x8 2
