Created with Pixso. 1310nm Latching Mechanical Optical Switch 500mW for Fiber Optic Channel Blocking

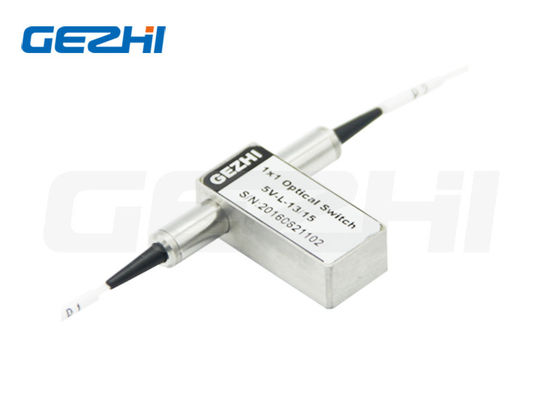

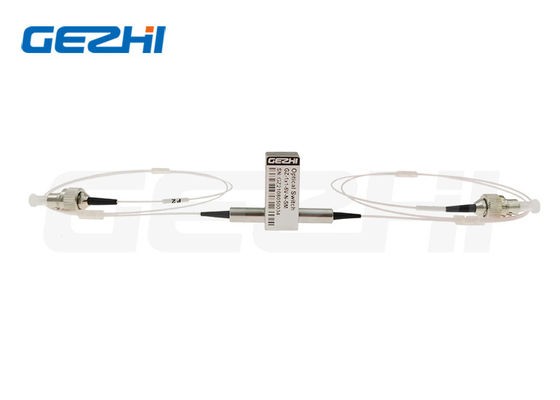

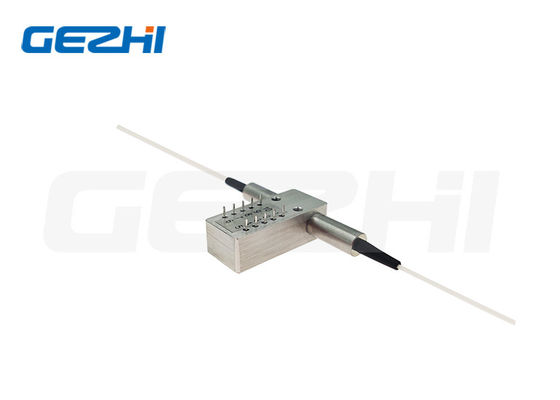

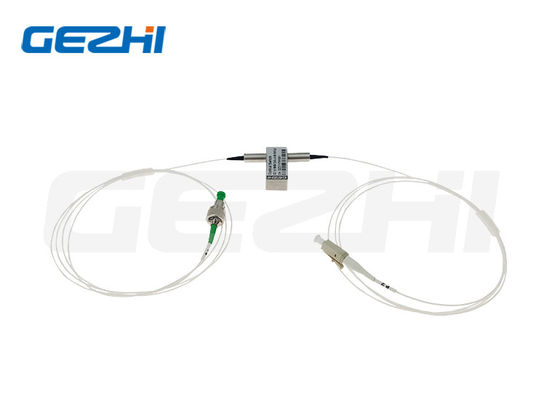

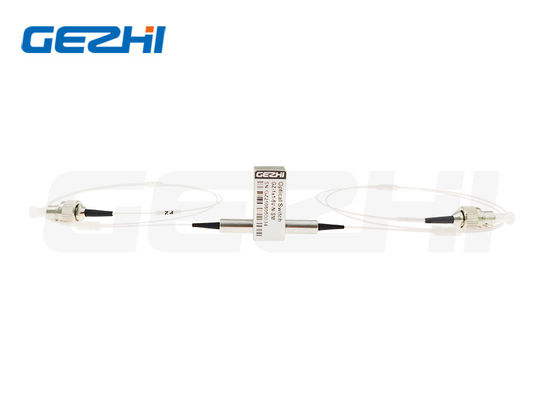

1310nm Latching Mechanical Optical Switch 500mW for Fiber Optic Channel Blocking
  • name
  • name
  • name
  • name
  • name

1310nm Latching Mechanical Optical Switch 500mW for Fiber Optic Channel Blocking

Brand Name: GEZHI or OEM
Model Number: GZ-1x1-13/15
MOQ: 1pc
Price: US$18-US$25
Delivery Time: 2-7 work days
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Product Name:
1x1 Optical Switches
Wavelength:
1310/1550nm
Feature:
High Reliability
Control Type:
Non-Latching
Voltage:
5V Or 3V
Connector:
FC/UPC Or Customized
Packaging Details:
2pcs in a foam with plastic Box
Supply Ability:
50000pcs per month
Highlight:

Blocked Latching Mechanical Optical Switch

,

LC UPC Mechanical Optical Switch

,

500mW Ethernet Fiber Switch

Product Description
Blocked Latching Mechanical Optical Switch
1x1 Opto-Mechanical Bi-directional Fiber Optic Switch with 1310nm wavelength, LC connectors, UPC/APC interfaces, 3V/5V operation, and 500mW optical power rating.
Product Overview
Gezhi 1x1 Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting incoming optical signals into output fibers using an opto-mechanical configuration activated via electrical control signals. The switch features integrated electrical position sensors and utilizes thin film filter technology for robust light path alteration.
This innovative design offers a simplified platform configuration with high reliability and low production cost, significantly reducing moving part position sensitivity while providing unprecedented stability.

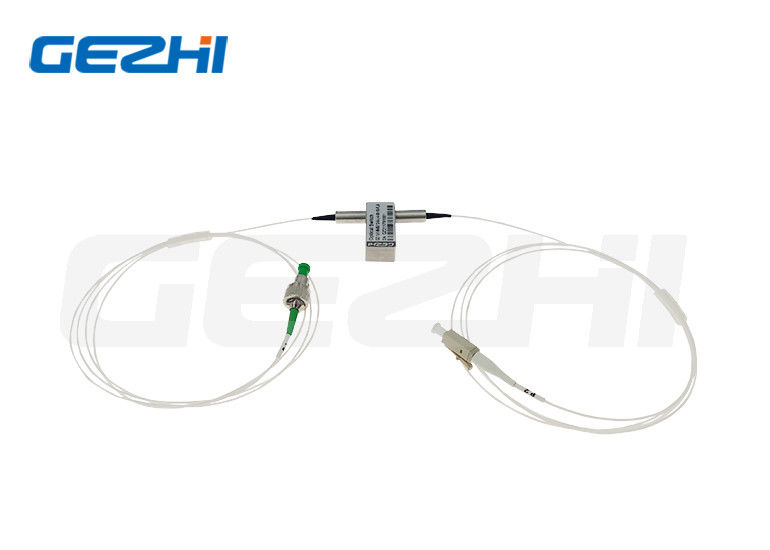

1310nm Latching Mechanical Optical Switch 500mW for Fiber Optic Channel Blocking 0
Optical Route Configuration
1310nm Latching Mechanical Optical Switch 500mW for Fiber Optic Channel Blocking 1 1310nm Latching Mechanical Optical Switch 500mW for Fiber Optic Channel Blocking 2
Mechanical Drawing
1310nm Latching Mechanical Optical Switch 500mW for Fiber Optic Channel Blocking 3
Key Features
  • Fail-Safe Latching Operation
  • Competitive Low Cost Solution
  • Minimal Optical Distortions
  • Epoxy-Free Optical Path Design
  • High Reliability Performance
Applications
  • Channel Blocking Systems
  • Configurable Add/Drop Modules
  • Network System Monitoring
  • Test and Measurement Instrumentation
Technical Specifications
Parameter Specification Unit
Operating Wavelength 1260~1620 (SM) nm
Insertion Loss ≤1.0 dB
Wavelength Dependent Loss ≤0.25 dB
Polarization Dependent Loss ≤0.05 dB
Temperature Dependent Loss ≤0.20 dB
Return Loss SM≥50 dB
Cross Talk SM≥55 dB
Switch Time ≤8 ms
Repeatability ≤±0.02 dB
Durability ≥10⁷ times
Operating Voltage 3 or 5 V
Switch Type Non-Latching/Latching
Operating Temperature －20~＋70 ℃
Storage Temperature －40~＋85 ℃
Optical Power ≤500 mW
Dimension 27.0L*12.5W*8.4H mm
Pin Configuration
Type Optical Route Electric Drive State Sensor
Non-Latching CUT Pin 5 Pin 6
P1-P2 V＋ Open/Close
Latching CUT GND Open/Close
P1-P2 V＋ GND Open/Close
Ordering Information
Model: GZ-1*1-13/15
Mode Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector
S=SM
M=MM		 85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others		 3=3V
5=5V		 L=Latching
N=Non-Latching		 5=50/125
6=62.5/125
9=9/125
X=Others		 25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others		 1=1m
2=1.5m
X=Others		 0=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC
X=Others
Tags:

Latching Optical Switch

1550nm Fiber Optical Switches

2x2 Fiber Bypass Switch
