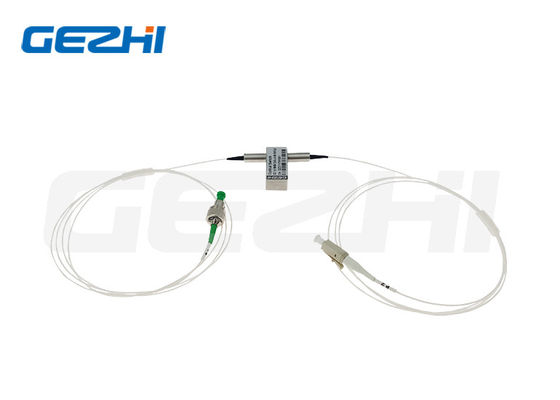

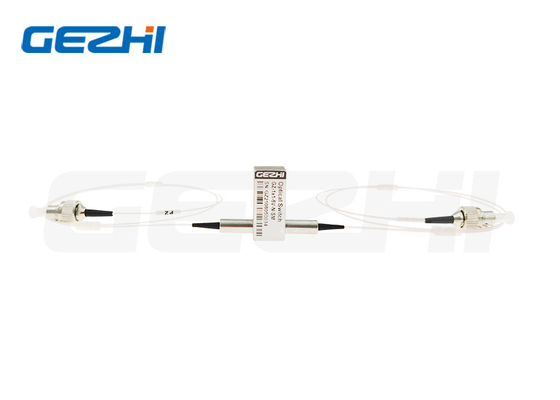

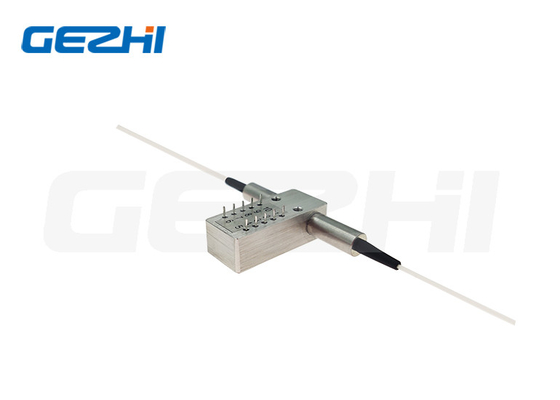

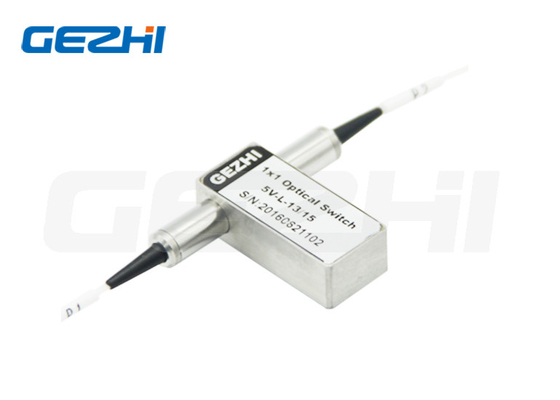

Blocked Latching Mechanical Optical Switch 1310nm LC UPC APC 3V 5V 500mW

Name: Blocked Latching Mechanical Optical Switch 1310nm LC UPC APC 3V 5V 500mW
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-1x1-13/15
Price: 360.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GZ-1x1-13/15
MOQ:	1pc
Price:	Negotiable
Delivery Time:	2-7 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

1x1 Optical Switches

Wavelength:

1310/1550nm

Feature:

High Reliability

Control Type:

Non-Latching

Voltage:

5V Or 3V

Connector:

FC/UPC Or Customized

Packaging Details:

2pcs in a foam with plastic Box

Supply Ability:

50000pcs per month

Highlight:

Blocked Latching Mechanical Optical Switch

LC UPC Mechanical Optical Switch

500mW Ethernet Fiber Switch

Product Description

Blocked Latching Mechanical Optical Switch 1310nm LC UPC APC 3V 5V 500mW

1x1 Optical Switches

Gezhi 1x1 Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 1 incoming optical signals into 1 output fibers. This is achieved using a opto-mechanical configuration and activated via an electrical control signal. The switch has integrated electrical position sensors.

Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.

Blocked Latching Mechanical Optical Switch 1310nm LC UPC APC 3V 5V 500mW 0

Optical Route

Blocked Latching Mechanical Optical Switch 1310nm LC UPC APC 3V 5V 500mW 1

Blocked Latching Mechanical Optical Switch 1310nm LC UPC APC 3V 5V 500mW 2

Mechanical Drawing

Features

Fail-Safe Latching

Unmatched Low Cost
Low Optical Distortions

Epoxy-Free Optical Path

High Reliability

Applications

Channel Blocking

Configurable Add/Drop

System Monitoring

Instrumentation

Specification

Parameters	Specifications	Unit
Operating Wavelength	1260~1620(SM)	nm
Insertion Loss	≤1.0	dB
Wavelength Dependent Loss	≤0.25	dB
Polarization Dependent Loss	≤0.05	dB
Temperature Dependent Loss	≤0.20	dB
Return Loss	SM≥50	dB
Cross Talk	SM≥55	dB
Switch Time	≤8	ms
Repeatability	≤±0.02	dB
Durability	≥10⁷	times
Operating Voltage	3 or 5	V
Switch Type	Non-Latching/Latching
Operating Temperature	－20~＋70	℃
Storage Temperature	－40~＋85	℃
Optical Power	≤500	mW
Dimension	27.0L×12.5W×8.4H	mm

Pins

Type	Optical Route	Electric Drive				State Sensor
1×1	Optical Route	Pin 1	Pin 5	Pin 6	Pin 10	Pin 2-3	Pin 3-4	Pin 7-8	Pin 8-9
Non-Latching	CUT	--	--	--	--	Close	Open	Open	Close
Non-Latching	P1-P2	V＋	--	--	GND	Open	Close	Close	Open
Latching	CUT	--	--	GND	--	Close	Open	Open	Close
Latching	P1-P2	V＋	GND	--	--	Open	Close	Close	Open

Order Information

GZ-1×1-13/15

Mode

Wavelength

Voltage Type

Control Model

Fiber Type

Fiber Diameter

Fiber Length

Connector

S=SM
M=MM

85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others

3=3V
5=5V

L=Latching
N=Non- Latching

5=50/125
6=62.5/125
9=9/125
X=Others

25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others

1=1m
2=1.5m
X=Others

0=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC

X=Others
