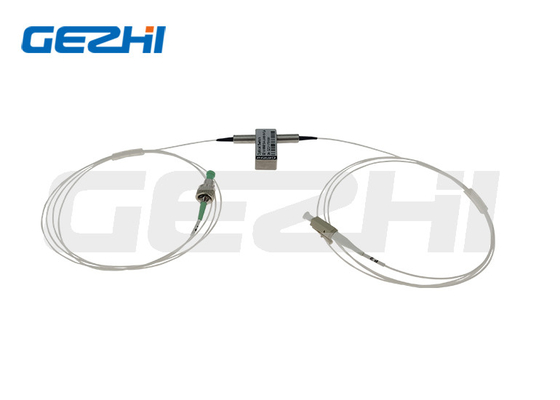

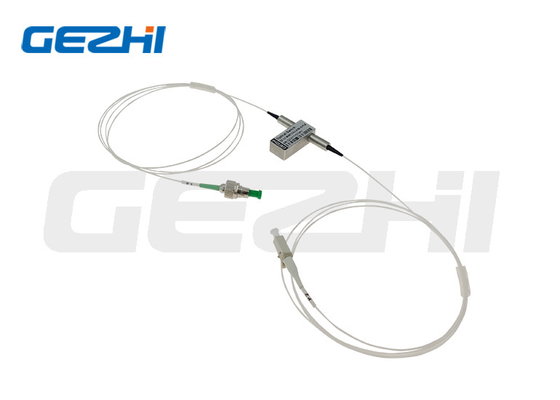

1625/1650nm Mechanical Optical Switch Low Crosstalk 1x1 FC APC

1625/1650nm Mechanical Optical Switch Low Crosstalk 1x1 FC APC
1625/1650nm Mechanical Optical Switch Low Crosstalk 1x1 FC APC 1625/1650nm Mechanical Optical Switch Low Crosstalk 1x1 FC APC

Large Image :  1625/1650nm Mechanical Optical Switch Low Crosstalk 1x1 FC APC

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: GZ-1x1-13/15
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 2pcs in a foam with plastic Box
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 50000pcs per month
Detailed Product Description
Product Name: 1x1 Optical Switches Control Type: Non-Latching/Latching
Wavelength: 1260~1650nm Voltage: 5V Or 3V
Feature: High Reliability Connector: FC/APC-LC/UPC Or Customized
Place Of Origin: China Operating Temperature:: -20~70℃
High Light:

1650nm Mechanical Optical Switch

,

Low Crosstalk Mechanical Optical Switch

,

FC APC Fiber Optic Switch



1x1 Optical Switches



Gezhi Optical Swiches are designed based on refraction optical principle which reduces moving part position sensitivity. It features excellent mechanical and optical performance and unify different switch configuration of 1x1, 1x2, 2x2 Bypass, 2x2, Dual 1x2, Dual 2x2 Bypass, Dual 2x2 onto the similar compact package. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.



Features

Fail-Safe Latching
Unmatched Low Cost
Low Optical Distortions
Epoxy-Free Optical Path
High Reliability

Applications

Channel Blocking

Configurable Add/Drop
System Monitoring
Instrumentation



Specification



Parameters Specifications Unit
Operating Wavelength 1260~1620(SM) nm
Insertion Loss ≤1.0 dB
Wavelength Dependent Loss ≤0.25 dB
Polarization Dependent Loss ≤0.05 dB
Temperature Dependent Loss ≤0.20 dB
Return Loss SM≥50 dB
Cross Talk SM≥55 dB
Switch Time ≤8 ms
Repeatability ≤±0.02 dB
Durability ≥107 times
Operating Voltage 3 or 5 V
Switch Type Non-Latching/Latching
Operating Temperature -20~+70
Storage Temperature -40~+85
Optical Power ≤500 mW
Dimension 27.0L×12.5W×8.4H mm


Pins

Type Optical Route Electric Drive State Sensor
1×1 Pin 1 Pin 5 Pin 6 Pin 10 Pin 2-3 Pin 3-4 Pin 7-8 Pin 8-9
Non-Latching CUT -- -- -- -- Close Open Open Close
P1-P2 V+ -- -- GND Open Close Close Open
Latching CUT -- -- GND -- Close Open Open Close
P1-P2 V+ GND -- -- Open Close Close Open


Order Information

GZ-1×1-13/15

Mode Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector
S=SM
M=MM
85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others
3=3V
5=5V
L=Latching
N=Non- Latching
5=50/125
6=62.5/125
9=9/125
X=Others
25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others
1=1m
2=1.5m
X=Others

0=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC

X=Others



Optical Route

1625/1650nm Mechanical Optical Switch Low Crosstalk 1x1 FC APC 0



     1625/1650nm Mechanical Optical Switch Low Crosstalk 1x1 FC APC 1



Mechanical Drawing

1625/1650nm Mechanical Optical Switch Low Crosstalk 1x1 FC APC 2
