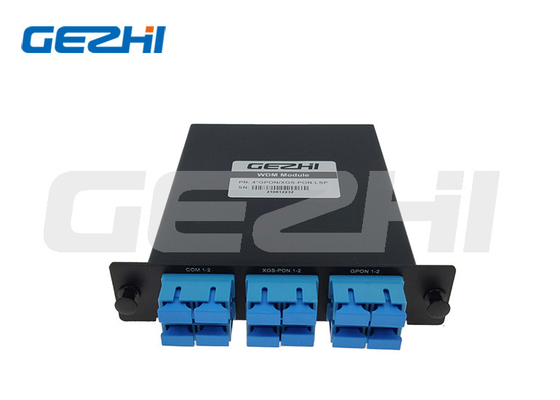

XWDM/XPON WDM1r Multiplexers LGX Module For Next Generation Passive Optical Networks

XWDM/XPON WDM1r Multiplexers LGX Module For Next Generation Passive Optical Networks
XWDM/XPON WDM1r Multiplexers LGX Module For Next Generation Passive Optical Networks XWDM/XPON WDM1r Multiplexers LGX Module For Next Generation Passive Optical Networks XWDM/XPON WDM1r Multiplexers LGX Module For Next Generation Passive Optical Networks

Large Image :  XWDM/XPON WDM1r Multiplexers LGX Module For Next Generation Passive Optical Networks

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS ,ISO9001
Model Number: WDM1R-4MUX
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Features: High Stability Product Name: WDM1R
Wavelength: 1310/1490 & 1270/1577 Fiber: 4 Set
Adaptor: SC/UPC Application: NG-PON
High Light:

Passive module WDM1R

,

xWDM xPON WDM1R

,

multiplexers LGX Module


xWDM/xPON WDM1r series multiplexers LGX cassette Module for Next Generation Passive Optical Networks

Describtion of xWDM/xPON WDM1R Multiplexer

GEZHI Photonics WDM1r module is a WDM combination of GPON 1290~1330&1490~1550 and XGS-PON 1260~1280&1575~1580nm wavelength. Each WDM1r module supports Four channels of multiplexed GPON 1310/1490 and XGS-PON 1270/1577  signals. The WDM1r can be installed in either the OLT cabinet or a separate cabinet.
GEZHI Photonics provides various type packages like ABS pigtailed box, ABS plug-in module, LGX cassette module, 19" 1U Rackmount, 3slot 1U Rackmount and 3U rackmount cabinet which you can install 12 or 14x WDM1r plug-in module.



Features of xWDM/xPON WDM1R Multiplexer

  •  Ultra-Low Insertion Loss
  •  TFF Free-space Technology
  •  Passive module, no need electrical power
  •  Stable Operating Temperatures
  •  Customized Bands Combination



Application of xWDM/xPON WDM1R Multiplexer

  •  FTTx
  •  PON Optical Networks
  •  5G Networks


Specification of xWDM/xPON WDM1R Multiplexer

Parameter Unit WDM1R 4 Multiplexer
Channel Number / 8
Center Wavelength nm

GPON Port: 1290~1330&1480~1500
XGS-PON Port: 1260~1280&1575~1580

Insertion Loss dB ≤1.2
Isolation dB ≥30
Returen Loss dB ≥45
Directivity dB ≥50
Polarization Dependent Loss dB ≤0.2
PMD ps ≤0.15
Power Handling mW ≤500
Package / LGX cassette
Operating Temperature -5 to +75
Storage Temperature -40 to +85




GEZHI Photonics supply customzied xWDM/xPON WDM1R Multiplexer with GPON/XGS-PON/RF Video/NG-PON2/OTDR etc. Like below wavelength:

  •  XGS-PON : 1260-1280 &1575-1580
  •  GPON : 1290-1330 & 1480-1500nm
  •  NG-PON2 : 1524-1544 & 1596-1603nm
  •  OTDR : 1625-1650nm
  •  RF Video : 1550-1560nm


For more detail information of xWDM/xPON WDM1R Multiplexer, please call or email to us. We will offer detail specifications of the Coexistence Element WDM mux module.

FAQ
Q: Are you trading company or manufacturer?

A: We are original manufacturer Of
xWDM/xPON WDM1R Multiplexer. We can do OEM/ODM business.
Q: How long is your delivery time?
A: General delivery time: 5~14 days.
Q: What is the warranty ?
A: 3years warrangty time.

Q: What is your terms of payment?
A: 100% T/T inadvance.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;
