GPON/XGS-PON/RFoG WDM Filter Module Optical Coexistence Module

GPON/XGS-PON/RFoG WDM Filter Module Optical Coexistence Module
GPON/XGS-PON/RFoG WDM Filter Module Optical Coexistence Module GPON/XGS-PON/RFoG WDM Filter Module Optical Coexistence Module

Large Image :  GPON/XGS-PON/RFoG WDM Filter Module Optical Coexistence Module

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS ,ISO9001
Model Number: GPON/XGS-PON/RFoG WDM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Features: Low Insertion Loss Product Name: GPON/XGS-PON/RFoG WDM
Wavelength: GPON/XGS-PON/1550/1610 Fiber: Single Fiber
Connector: SC/APC Application: PON Networks
High Light:

GPON WDM Filter Module

,

RFoG WDM Filter Module

,

WDM Optical Coexistence Module





GPON/XGS-PON/RFoG WDM Filter Module Optical Coexistence Module



GEZHI Photonics' GPON/XGS-PON RFoG WDM filter module is based on thin film technology, and is designed to allow GPON wavelengths (1310 nm/1490 nm), XGS-PON wavelengths (1270 nm / 1577 nm and RFoG wavelengths (1550 nm/1610 nm) to coexist on a single fiber. This filter features low loss, excellent port-to-port isolation and unparalleled reliability. It is available in various package options: an ABS package with fiber pigtails, an LGX module with SC/APC connectors, 19" 1U rackmount or customized sized package. GEZHI Photonics supply customized combination WDM optical coexistence Module.





Features of GPON/XGS-PON RFoG WDM filter module

  •  Compact design
  •  High isolation
  •  Low insertion loss
  •  Low Polarization Dependent Loss (PDL)
  •  Good channel-to-channel uniformity
  •  Operating Temperature: -40°C to +70°C (-40°F to +158°F)
  •  High reliability & stability
  •  Telcordia GR-1209-CORE & GR-1221-CORE-compliant
  •  RoHS-compliant

Applications of GPON/XGS-PON RFoG WDM filter module

  •  WDM systems
  •  PON networks
  •  CATV links


Specification

Parameter Unit GPON/XGS-PON/RFoG WDM Filter Module
Channel Number / 5
Center Wavelength nm

XGS-PON Port: 1260~1280&1575~1580

GPON Port: 1290~1330&1480~1500

1550 Port: 1530~1560

1610 Port: 1600~1620

Insertion Loss dB ≤1.6
Isolation dB ≥30
Returen Loss dB ≥45
Directivity dB ≥50
Polarization Dependent Loss dB ≤0.2
PMD ps ≤0.15
Power Handling mW ≤500
Package mm LGX: 129x29x130
Operating Temperature -5 to +75
Storage Temperature -40 to +85



Describtion of GPON/XGS-PON RFoG WDM filter module

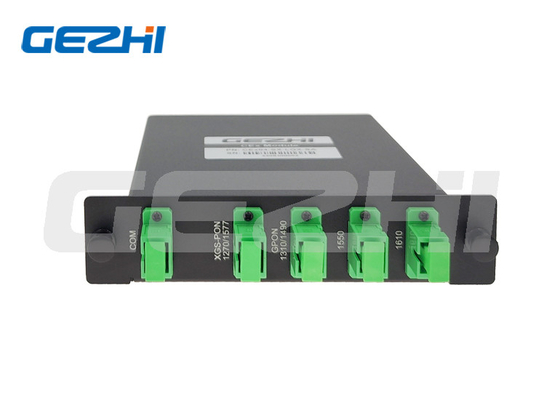

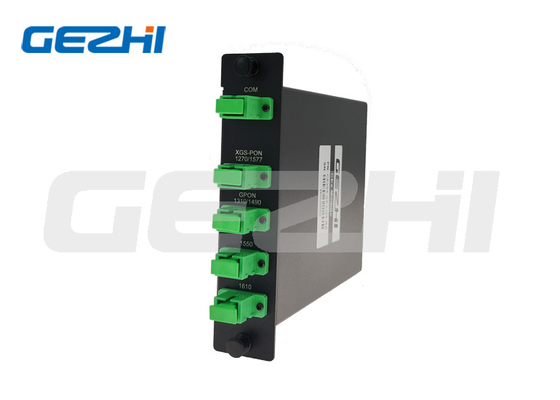

GPON/XGS-PON/RFoG WDM filter module with 4 ports, GPON 1310/1490, XGS-PON 1270/1577, RFoG 1550 Port & 1610 nm Port, single fiber in a LGX cassette Module with SC/APC connectors





GEZHI Photonics supply various pacakge of GPON/XGS-PON RFoG WDM filter module

GPON/XGS-PON/RFoG WDM Filter Module Optical Coexistence Module 0
