Product Details:
Payment & Shipping Terms:
|
| Features: | Low PDL | Product Name: | GPON+XGS-PON+RF Video+OTDR |
|---|---|---|---|
| Wavelength: | GPON+XGS-PON+RF Video+OTDR | Fiber: | Dual Fiber |
| Connector: | LC/APC | Application: | CATV Links |
| High Light: | OTDR CEx Module,Low PDL CEx Module,GPON CEx Module |
||

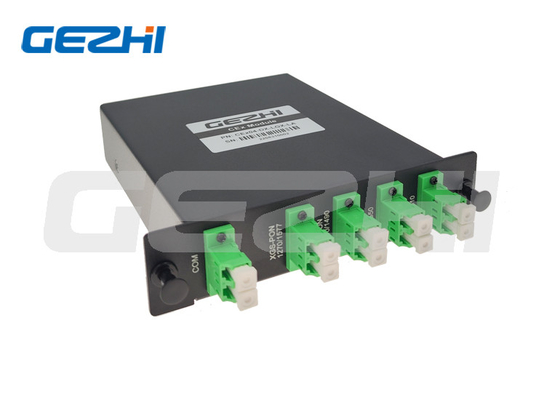

CEx Module GPON + XGS-PON + RF Video + OTDR dual LC/APC adaptor
GEZHI Photonics' CEx Module GPON + XGS-PON + RF Video + OTDR dual LC/APC adaptor is based on thin film technology, and is designed to allow GPON wavelengths (1310 nm/1490 nm), XGS-PON wavelengths (1270 nm / 1577 nm, RF video wavelengths (1550 nm) and OTDR wavelength (1610nm) to coexist on a dual fiber. This GPON/XGS-PON/RF Video/OTDR CEx Dual LC/APC moudle are features low loss, excellent port-to-port isolation and unparalleled reliability.
the GPON/XGS-PON/RF Video/OTDR CEx Dual LC/APC moudle is available in various package options: an ABS package with fiber pigtails, an LGX module with SC/APC connectors, 19" 1U rackmount or customized sized package. GEZHI Photonics supply customized combination WDM optical coexistence Module.
Features of GPON / XGS-PON / RF Video / OTDR CEx Module
Applications of GPON / XGS-PON / RF Video / OTDR CEx Module
Specification
| Parameter | Unit | GPON/XGS-PON/RF Video/OTDR |
| Channel Number | / | 5 |
| Center Wavelength | nm | XGS-PON Port: 1260~1280&1575~1580 |
| Insertion Loss | dB | ≤1.6 |
| Isolation | dB | ≥30 |
| Returen Loss | dB | ≥45 |
| Directivity | dB | ≥50 |
| Polarization Dependent Loss | dB | ≤0.2 |
| PMD | ps | ≤0.15 |
| Power Handling | mW | ≤500 |
| Connector | / | LC/APC |
| Package | mm | LGX: 129x29x130 |
| Operating Temperature | ℃ | -5 to +75 |
| Storage Temperature | ℃ | -40 to +85 |
GEZHI Photonics supply various pacakge of GPON/XGS-PON RFoG WDM filter module
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer Of GPON + XGS-PON + RF Video + OTDR CEx Module. We can do OEM/ODM business.
Q: How long is your delivery time?
A: General delivery time: 5~14 days.
Q: What is your terms of payment?
A: 100% T/T inadvance.
Q: What is the warranty ?
A: 3years warrangty time.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;
Any questions,please feel free to contact us,we will provide quality services for you
