18CH 1610nm Low Loss BIDI CWDM Mux Demux Module For Telecommunication


18CH CWDM Mux Demux Module 1270~1610nm low loss BIDI CWDM

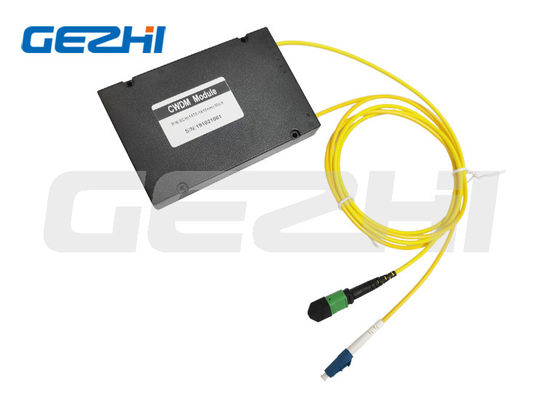

GEZHI 18CH low loss BIDI CWDM based on dielectric thin-film filter technology which designed for integration in low cost access and metro networks. GEZHI 18CH CWDM is an optical multiplexer that can multiplex up to 18 CWDM sources on a single optical fiber with only 3.5dB link insertion loss. Its package by 120*80*18mm ABS box with 900um loose tube, 1meter, COM-SC/UPC connector, other output with LC/UPC connector. The 18CH CWDM filter has high channel isolation and can therefore be used in a bi-directional system. The module can be used as a multiplexer or de-multiplexer and uses a single slot in a frame or can be used, standalone, in an N-box.

Features


- Good uniformity and low insertion loss

- Low Polarization Dependent Loss

- Excellent Environmental Stability


Applications

• Fiber to The Home (FTTH)
• Passive optical networks (PON)
• Local Area Networks (LAN)
• Cable Television (CATV)
• Test Equipment
• FTTX Systems
• PON Networks
• CATV Links
• Optical Signal Distribution

Specification

Note: 1. Customization is available.

2. Specified with connector


Ordering Information

Filter Cascading

18CH BIDI CWDM package

18CH BIDI CWDM module
