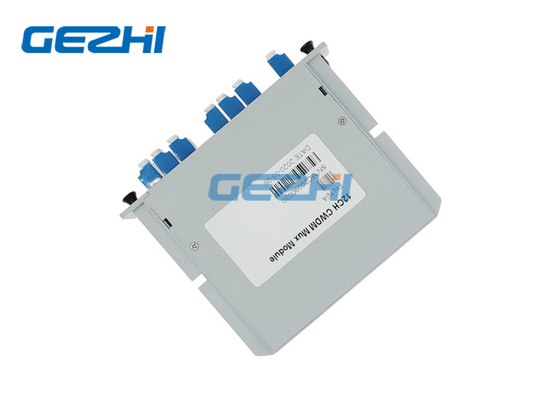

12CH MUX Fiber CWDM Module Low PDL LC UPC Connector Plastic Cassette

Name: 12CH MUX Fiber CWDM Module Low PDL LC UPC Connector Plastic Cassette
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: CWDM12CH27LPAC
Price: 399.98 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	CWDM12CH27LPAC
MOQ:	1pcs
Price:	Get Latest Price
Delivery Time:	5-8 work days
Payment Terms:	T/T, Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/RoHS/ISO9001

Features:

Low PDL

ITEM Name:

CWDM Cassette Module

Wavelength:

1271~1371&1471~1571nm

Connector:

LC/PC

Package:

Plastic Cassette

Application:

CWDM System

Packaging Details:

paper box with foam

Supply Ability:

100000Channel per month

Highlight:

12CH CWDM Module

CWDM Module Low PDL

Product Description

12CH MUX Fiber CWDM Cassette Module Box LC UPC

GEZHI 12CH MUX Fiber CWDM Cassette Module Box LC UPC provide up to 18-channel Multiplexing on a single fiber. Due the the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: ABS box package, LGX pakcage and 19” 1U rackmount.

Features	Applications
Low Insertion Loss High Isolation Low PDL Good channel-to-channel uniformity	CWDM System PON Networks CATV Links

Specifications

Parameters	Unit	Value
Operating Waveleng	nm	1260~1620nm
Channel Number	/	12
Center Wavelength	nm	1271,1291,1311,1331,1351,1371 1471,1491,1511,1531,1551,1571
Channel Spacing	nm	20
Channel Passband	nm	±7.5
Wavelength Accuracy	nm	±3.2
Insertion Loss	dB	≤4.8
Channel Ripple	dB	≤0.5
Adjacent Channel Isolation	dB	≥30
Non-adjacent Channel Isolation	dB	≥40
IL Thermal Stabilty	dB/℃	≤0.005
Wavelength Thermal Stabilty	nm/℃	≤0.002
PDL	dB	≤0.2
PMD	dB	≤0.2
Return Loss	dB	≥45
Directivity	dB	≥45
Operating Temperature	℃	-20~+70
Storage Temperature	℃	-40~+85

Above Specification are include connector
