8CH CWDM Fiber Optic Modules Low IL High Isolation Duplex Fiber

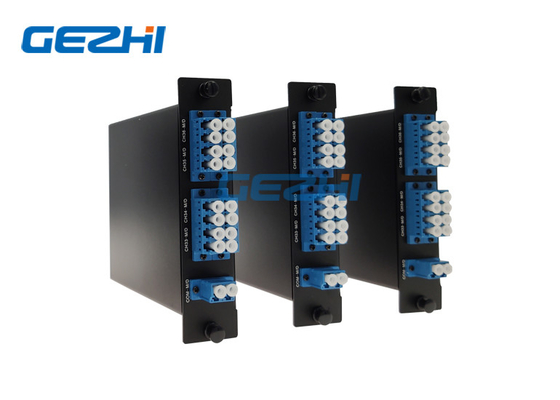

Large Image : 8CH CWDM Fiber Optic Modules Low IL High Isolation Duplex Fiber

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE RoHS,ISO9001
Model Number:	CWDM8CHMD47LPLGX

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Get Latest Price
Packaging Details:	paper box with foam
Delivery Time:	5-8 work days
Payment Terms:	T/T, Paypal,Western Union
Supply Ability:	100000 Channel per month

Contact Now

Detailed Product Description

Features:	Low IL	Product Name:	Fiber Optic Modules
Wavelength:	1471~1611	Channel:	1x8
Type:	Duplex Fiber	Application:	CWDM System
High Light:	Low IL CWDM Module , CWDM Fiber Optic Modules , 8CH Fiber Optic Modules

8CH CWDM Fiber Optic Modules

The 8CH CWDM Fiber Optic Modules is designed and manufactured to Telcordial standard. The devices use environmentally stable Thin Film Filters and advanced packaging technology to achieve a wide pass band, low insertion loss, high channel isolation and excellent environmental stability. They can be used individually to perform single channel add or drop functions or can be cascaded into sequence for multi-channel applications in CWDM systems.

Features	Applications
High Isolation Low Insertion Loss High Stability and reliability	Cellular Application Fiber Optical amplifier Access Network Line Monitoring WDM network Telecommunication

Specification

Parameter	Unit	Value
Channels Number	-	2	4	8	16
Channel Space	nm	20
Central Wavelength	nm	1271~1611
Operating wavelength	nm	1260-1460 or 1460-1620 or 1260-1620
Passband	nm	λITU±6.5
Pass band Flatness	dB	≤0.5
Insertion Loss (Typ.)	dB	0.8	1.3	2.3	4.6
Insertion Loss (Max.)	dB	0.9	1.5	2.5	5.0
Adjacent Channel Isolation	dB	≥30
Non-adjacent Channel Isolation	dB	≥40
Polarization Mode Dispersion	ps	≤0.1	≤0.1	≤0.15	≤0.15
Polarization Dependent Loss	dB	≤0.1	≤0.15	≤0.2	≤0.25
Return Loss	dB	≥50
Directivity	dB	≥50
Insertion Loss Temperature Sensitivity	dB/°C	0.005	0.005	0.007	0.007
Wavelength Temperature Shifting	nm/°C	0.002
Operation Temperature	°C	-20~+70
Storage Temperature	°C	-40~+85
