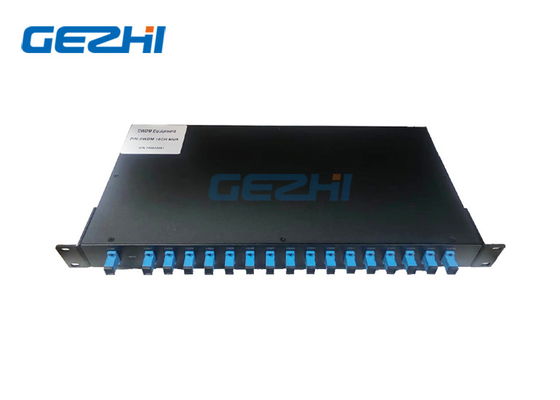

1x16 SC/UPC Connector CWDM Mux Demux For Optical Networking System

Brand Name:	GEZHI or OEM
Model Number:	/
MOQ:	1pcs
Price:	Get Latest Price
Delivery Time:	5-10 work days
Payment Terms:	T/T, Paypal,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE/RoHS/ISO9001

Product Name:

SC/UPC CWDM

Wavelength:

CWDM Band

Spacing:

20nm

Bandwith:

+/-7.5nm

Connector:

SC/UPC

Application:

Optical Networking System

Packaging Details:

paper box with foam

Supply Ability:

100000 Piece/Pieces per Month

Highlight:

1x 16 CWDM Mux Demux

SC UPC CWDM Mux Demux

1x 16 CWDM Module

Product Description

1x16 SC/UPC Connector CWDM

Item Details:

Com port is simplex
Passive, no electric power required. (MTBF ca. 500 years)
Low insertion loss
Simple to install, requires no configuration or maintenance
ISO 9001 manufacturing facility

Wavelength Division Multiplexing (WDM) is the driving force behind today’s networks. WDM transmission systems use multiple wavelengths (colors of light) to transport information over a single fiber. Every wavelength (color) carries an individual signal that does not interfere with the other wavelengths (colors). In simple terms: WDM creates virtual fibers – the best and simplest way to multiply fiber capacity.

Specification:

Parameter		4 Channel		8 Channel		16 Channel
		Mux	Demux	Mux	Demux	Mux	Demux
Channel Wavelength (nm)		1270~1610
Center wavelength Accuracy (nm)		±0.5
Channel Spacing (nm)		20
Channel Passband (@-0.5dB bandwidth (nm)		>13
Insertion Loss (dB)		≤1.0		≤2.5		≤4.5
Channel Uniformity (dB)		≤0.6		≤1.0		≤1.5
Channel Ripple (dB)		0.3
Isolation (dB)	Adjacent	N/A	>30	N/A	>30	N/A	>30
	Non-adjacent	N/A	>40	N/A	>40	N/A	>40
Inertion Loss Temperature Sensitivity (dB/℃)		<0.005
Wavelength Temperature Shifting (nm/℃)		<0.002
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion		<0.1
Directivity (dB)		>50
Return Loss (dB)		>45
Maximum Power Handling (mW)		300
Opterating Temperature (℃)		-5~+75
Storage Temperature (℃)		-40~85
Package dimension (mm)		L100 x W80 x H10L140 x W115 x H18

Specification may change without notice.

Above specification are for device without connector.

Ordering Information

CWDM

Number of Channels

Confi

-guration

1st Channel

Fiber Type

Fiber Length

In/Out Connector

04=4 Channel

08=8 Channel

16=16 Channel

18=18 Channel

N=N Channel

M=Mux

D=Demux

MD=Mux+Demux

O=OADM

27=1270nm

……

47=1470nm

49=1490nm

……

61=1610nm

SS=special

1=Bare fiber

2=900um loose tube

3=2mmCable

4=3mmCable

1=1m

2=2m

S=Specify

0=None

FA=FC/APC

FP=FC/PC

SA=SC/APC

SP=SC/PC

LA=LC/APC

LP=LC/PC

S=Specify
