18CH Dual Fiber CWDM Module Passive With LC / SC / FC / ST Connector
  • name
  • name
  • name

18CH Dual Fiber CWDM Module Passive With LC / SC / FC / ST Connector

Brand Name: GEZHI or OEM
Model Number: GZ-18CH CWDM Rackmount
MOQ: 1
Price: Get Latest Price
Delivery Time: 2~7working days
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE/FCC/RoHS/TUV/UL
Product Name:
CWDM Mux Demux Rackmount Module
Channel Number:
18 Channels
Wavelength:
1270~1610nm
Connector:
LC/SC/FC/ST (PC Or APC)
Fiber Type:
Duplex
Application:
Optical Transport Networking System
Packaging Details:
1pcs in a foam with paper box
Supply Ability:
80000Channel per month
Highlight:

18CH CWDM Module

,

Dual Fiber CWDM Module

,

18CH Passive CWDM Mux Demux

Product Description

18CH Dual Fiber CWDM Module Passive With LC / SC / FC / ST Connector



Coarse Wavelength Division Multiplexing units are a flexible plug-and-play network solution that allows network operators to cost effectively implement point to point or ring based WDM optical networks.
Our CWDM MUX DEMUX are perfectly suited to transport PDH, SDH/SONET, ETHERNET services over WWDM, CWDM and DWDM in optical metro edge and access networks.

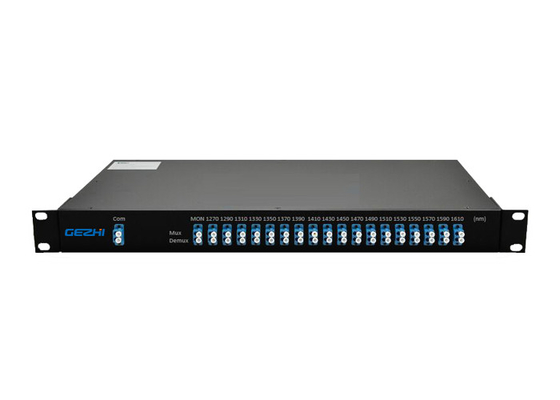

Front panel of 18ch 1270-1610nm CWDM Mux Demux, W/ Monitor Port
18CH Dual Fiber CWDM Module Passive With LC / SC / FC / ST Connector 0
Features
  • Passive, no electric power required
  • Standard 18-channel CWDM band 1270–1610 nm on a pair of fiber, 20 nm spacing
  • Monitor ports ensures easy troubleshooting without downtime
  • Duplex LC/UPC connectors, easily support duplex patch cables between the transceiver and passive unit
  • 1RU Rack-Mount Chassis
  • Channel Insertion Loss: < 4.9dBReturn Loss: ≥ 45dB
  • Operating Temperature: -10~70°C

GEZHI Photonics quality assurance by using high-quality CWDM multiplexers, Our components fulfill or exceed standard market specifications for optical components. It may still not be entirely obvious how different parameters like isolation are more closely defined. The following diagram illustrates the most important parameters, following the "red box model", in accordance with ITU. The channel, including its bandwidth and isolation as defined by the component specifications, delineates a box. The measured transmission spectrum of each channel has to be above the box. Under no circumstances can it interfere with any neighboring box (channel). Therefore, isolation and insertion losses have to be maintained within the borders set out by the defined center wavelengths and bandwidth.

Fs 20160422174336_142.jpg
