4 Channels CWDM Mux Demux Photonics Duplex CWDM OADM For East And West Traffic

Name: 4 Channels CWDM Mux Demux Photonics Duplex CWDM OADM For East And West Traffic
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-4CH CWDM OADM
Price: 399.98 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GZ-4CH CWDM OADM
MOQ:	1
Price:	Get Latest Price
Delivery Time:	2~7working days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/FCC/RoHS/TUV/UL

Product Name:

CWDM OADM

Channel Number:

2 Channels

Wavelength:

1270~1610nm

Connector:

LC/SC/FC/ST (PC Or APC)

Fiber Type:

Duplex

Application:

Channel Add/Drop

Packaging Details:

1pcs in a foam with paper box

Supply Ability:

80000Channel per month

Highlight:

4 Channels CWDM Mux Demux

Duplex CWDM Mux Demux

Photonics Duplex CWDM OADM

Product Description

4 Channels CWDM Mux Demux , Duplex East CWDM OADM Optical Add / Drop

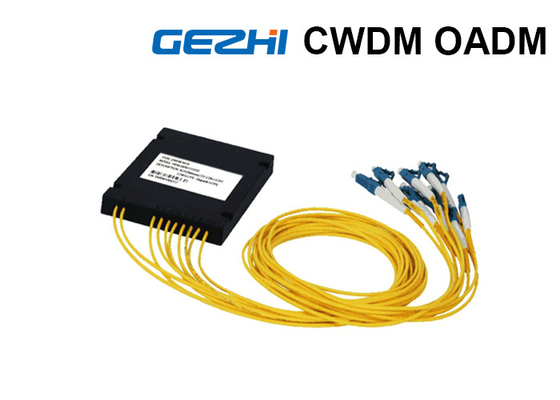

GEZHI Photonics Duplex CWDM OADM for East-and-West Traffic

The Duplex CWDM/AD modules add (multiplex) and drop (demultiplex) selected wavelengths over dual fiber Duplex CWDM MUX & DEMUX link for East-and-West Traffic.

GEZHI PHOTONICS CWDM OADM ( CWDM/AD) modules are Course Wave Division Multiplexing (CWDM) Optical Add and Drop Multiplexers (OADM). "Add" and "drop" here refer to the capability of the device to add one or more new wavelength channels to an existing multi-wavelength WDM signal, and to drop (remove) one or more channels, passing those signals to another network path.

The CWDM/AD is a passive optical add/drop multiplexer designed for point-to-point, ring, or bus configurations' applications that provides the ideal solution for the increasing bandwidth demand on enterprise and metro access networks and delivers dramatic cost savings to network equipment manufacturers, enabling them to develop metro access systems that are lower in cost, easier to provision and simpler to operate.

Added/dropped channels are interfaced to any of GEZHI PHOTONICS CWDM transceivers on the equipment side, and we also provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

Front Panel Details

A Common port:

Trunk input and output in both west and east traffic.
LC, SC, ST and FC connectors available.

B Add/Drop port on west:

Add and Drop on west.
LC, SC, ST and FC connectors available .
Compliant to ITU-T G.657A1 CWDM standard from 1270nm to 1610nm, with 20nm increase

C Add/Drop port on east:

Add and Drop on east.
LC, SC, ST and FC connectors available.
Compliant to ITU-T G.657A1 CWDM standard from 1270nm to 1610nm, with 20nm increase

NOTE:
Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the sameWe also provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice, When using with 1310nm legacy SDH/SONET, CWDM wavelengths 1270, 1290, 1310, 1330 and 1350nm should not be used. When using with 1550nm legacy SDN/SONET, CWDM wavelengths 1510, 1530, 1550, 1570 and 1590nm should not be used.

Item Details

4 channels CWDM OADM
2 x Common ports for West and East traffic: Simplex Connector
All Add/Drop Channels for West and East traffic: Simplex Connector;
Channel separation 20nm from 1270nm to 1610nm
2 x ABS Pigtailed box housing, one is for Add, the other is for Drop
OADM complement to the express CWDM product line
Compliant to ITU-T G.657A1 CWDM standard
Protocol and rate transparent for applications up to 10Gbp
Low-cost transceivers applicable, existing equipment can still be used
It is equipped with configuration ports like Monitor, Express port according to customer choice
Front panel is equipped with adapters according to customer choice (see options)
ISO 9001 manufacturing facility

Separate mux & demux(as default) Combinative mux & demux

For duplex mux & demux, GEZHI Photonics make separate ABS package as default. there are two separate ABS boxes, one is for packaging the wavelength channels of mux, and the other for the wavelength channels of demux.

While we can also provide combinative ABS package, mux and demux are packaged all together in one ABS box which save space without affecting the usage and function.It’s very convenient to package mux & demux in one ABS box for duplex wavelength channels like 2 channels, 4 channels...9 channels, but for 16 channels and 18 channels, we recommend you choosing 1U rack mount since ABS box may not be enough for packaging so much channels.

Mechanical Details for Housing

Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
