Passive CWDM Mux Demux 8CH Module 4pcs LGX Box 19" 1U Rackmount

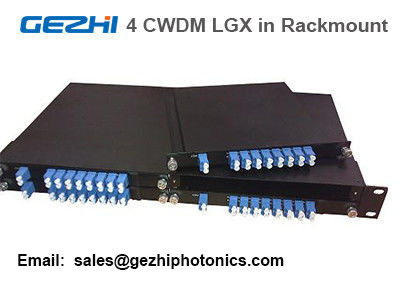

Large Image : Passive CWDM Mux Demux 8CH Module 4pcs LGX Box 19" 1U Rackmount

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	GZ-8CH CWDM dual Fiber

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get Latest Price
Packaging Details:	1pcs in a foam with paper box
Delivery Time:	2~7working days
Supply Ability:	80000Channel per month

Contact Now

Detailed Product Description

Product Name:	CWDM Mux Demux Rack	Channel Number:	4x 8 CH Mux&demux
Wavelength:	1270~1610nm Available	Connector:	LC/SC/FC/ST (PC Or APC)
Fiber Type:	Duplex	Application:	CATV Networking
Highlight:	CATV Networking CWDM Mux Demux , 1U Rackmount CWDM Mux Demux , 8CH Passive CWDM Mux Demux

Passive CWDM Mux Demux 8CH Module by 4pcs LGX Box in one 19" 1U Rackmount

The GEZHI CWDM Mux Demux is 8Channel Mux & Demux each at 4pcs LGX Chassis packed in one 19" 1u Rackmount. Its saves much place for customer.

Channel: 8 Channel

Wavelength: 1470~1610nm (customized is available)

Adaptor: LC/PC Duplex

Monitoring: Available.

Packing: 8ch Mux&Demux in LGX chassis, 4pcs LGX in one 19"

GEZHI Photonics CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.

GEZHI Photonics provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

Feature:

2, 4, 8, 16 or 18 CWDM ( Coarse Wavelength Division Multiplexer ) Wavelengths Optional
Color Coded Equipment Pors for Ease of Installation
Reliable Passive Thin Film Filter WDM Optical Technology
Low Optical Insertion Loss, Expoxy-Free in Optical Path
Telcordia (Bellcore) GR-1221-CORE
Mux+Demux Fits in 1RU 19 Rack-mount Chassis Optional
RoHS Complaint

Passive CWDM and OADM Devices

Passive CWDM device, ABS Box, 4 Channels from 1470~1610nm with SC/ FC/ LC/ ST connectors

Passive CWDM device, ABS Box, 8 Channels from 1470~1610nm with SC/ FC/ LC/ ST connectors

Passive CWDM device, ABS Box, 8 Channels from 1270~1610nm with SC/ FC/ LC/ ST connectors

Passive CWDM device, ABS Box, 16 Channels from 1270~1610nm with SC/ FC/ LC/ ST connectors

Passive CWDM device, 19" rack type, 4 Channels from 1470~1610nm with SC/ FC/ LC/ ST connectors

Passive CWDM device, 19" rack type, 8 Channels from 1470~1610nm with SC/ FC/ LC/ ST connectors

Passive CWDM device, 19" rack type, 8 Channels from 1270~1610nm with SC/ FC/ LC/ ST connectors

Passive CWDM device, 19" rack type, 16 Channels from 1270~1610nm with SC/ FC/ LC/ ST connectors

Passive CWDM device, 19" rack type, 32 Channels, from 1270~1610nm with SC/ FC/ LC/ ST connectors

Passive OADM device, ABS Box, 1 Channel without connectors (such as 1310 Add / 1310 Drop)

Passive OADM device, ABS Box, 2 Channels without connectors (such as 1310 Add / 1470 Drop)

Passive OADM device, ABS Box, 4 Channels without connectors (such as 1310,1470 Add / 1470,1510 Drop or 1310,1370 Add / 1310,1370 Drop)

Passive OADM device, ABS Box, 8 Channels without connectors (such as 1310,1330,1350,1370 Add / 1410,1430,1450,1470 Drop or 1310,1330,1350,1370 Add / 1310,1330,1350,1370 Drop)

Passive OADM device, ABS Box, 16 Channels without connectors (17 connectors)
