Product Details:
Payment & Shipping Terms:
|
| Product Name: | CWDM Modules | Wavelength: | 1270~1570nm |
|---|---|---|---|
| Length: | 1meter | Connector: | LC/UPC |
| Cable: | 2.0mm | Port: | 16 Channel |
| High Light: | Low PDL CWDM Module,1570nm CWDM Module,Single Width 16 channel cwdm module |
||
The Wavelength Division Multiplexer (WDM) is based on thin film filter technology. The device features low insertion loss, epoxy free optical path, high extinction ratio, high reliability and high stability. CWDM series modules are used to add or drop a particular wavelength and are ideal for telecommunications and networking.
|
Features |
Applications |
|
|

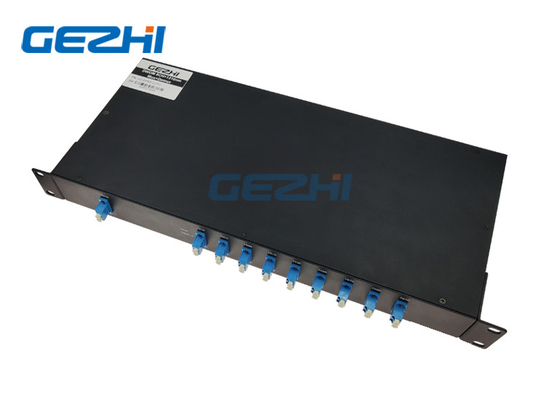

16 Channel single‐width CWDM modules
Specifications
| Central Wavelength | 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570 |
| Pass Bandwidth | ± 7.5 nm |
| Insertion Loss | <4.5dB or <3.5dB with skip |
| Isolation (Adjacent Channel) | > 30dB |
| Isolation (Non Adjacent Channel) | > 40dB |
| PDL | ≤ 0.2 dB |
| Insertion loss thermal stability | ≤ 0.007 (dB/°C) |
| Directivity | > 50 dB Min |
| Return Loss | > 45dB |
| Maximum Power Handling | < 500mw |
| Operating Temperature | -20 ~ 75 ºC |
| Storage Temperature | -40 ~ 85 ºC |
| Standard Size | 19" 1U Rack Mount |
| Fiber Type | Single mode fiber SMF-28 or G652D |
16 Channel single‐width CWDM modules
Ordering Information
| CWDM | XXX | XX | XX | XX | XX | XX |
| Number of Channels | Module type | Cable type | Fiber length | Input connector |
Output connector |
|
| M=Mux D=Demux MD=Mux+Demux |
01=1Channel 02=2 Channel 03=3 Channel 04=4 Channel ...... 16=16Channel 17=17Channel 18=18Channel |
0=100x80x10 mm 1=142x102x14.5 mm 2=LGX Box 3=19″1U Rack 4=2card Lgx in 1U Rack-mount 5=4card in 1U Rack-mount X=Others |
00=none 09=900um Loose tube 20=2.0mm 30=3.0mm |
05=0.5m 10=1.0m 15=1.5m 30=3.0m 40=4.0m 50=5.0m ...... |
0=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC X=Customized |
0=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC X=Customized |
