Detailed Product Description
Product Name: CWDM Mux Demux Wavelength: 1270~1610nm+ Upgrade Port
Fiber Type: Simplex Fiber Lenght: Customized
Package Type: ABS, LGX, 1U Rackmount Channel Number: 16Channels
Connector: LC/SC/FC/ST (PC Or APC)
High Light:

1 X 16 CWDM Mux Demux

,

CATV System CWDM Mux Demux

,

Passive 16 channel cwdm module

Passive device 1x16 CWDM Mux Demux for WDM Nettwork,CATV system.



Product Description



GEZHI Photonics offers a full range of CWDM Mux-Demux and Optical Add Drop Multiplexer (OADM) units to suit all kinds applications and network solutions. Some most common ones are: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV.



GEZHI's Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.



Our CWDM Mux Demux products provide up to 16channel or even 18-channel Multiplexing on a single fiber. Due the the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: ABS box package, LGX pakcage and 19” 1U rackmount.



Features

♦ Low Insertion loss

♦ Wide Wavelength Range

♦ Low Crosstalk

♦ High Stability, High Reliability

♦ Epoxy-free on Optical Path

♦ Latching and Non-latching



Applications

♦ Line Monitoring

♦ WDM Network

♦ Telecommunication

♦ Cellular Application

♦ Fiber Optical amplifier

♦ Acess Network



Technical Parameter

Parameter Unit 1x2 1x4 1x8 1x16
Mux Demux Mux Demux Mux Demux Mux Demux
Channel Wavelength nm 1270~1610nm and 1271~1611
Center wavelength Accuracy nm ±0.5
Channel Spacing nm 20
Channel Passband (@-0.5dB bandwidth) nm >13
Insertion Loss dB 0.8 1.5 2.5 & 1.8 5.2 & 3.5
Channel Ripple dB 0.3
Isolation Adjacent dB N/A >30 N/A >30 N/A >30 N/A >30
Non-adjacent dB N/A >40 N/A >40 N/A >40 N/A >40
Inertion Loss Temperature Sensitivity dB/ <0.005
Wavelength Temperature Shifting nm/ <0.002
Polarization Dependent Loss dB <0.1
Polarization Mode Dispersion dB <0.1
Directivity dB >50
Return Loss dB >45
Maximum Power Handling mW 300
Opterating Temperature -5~+75
Storage Temperature -40~85
Package dimension mm L100xW80xH10 L141xW115xH18



Product Picture

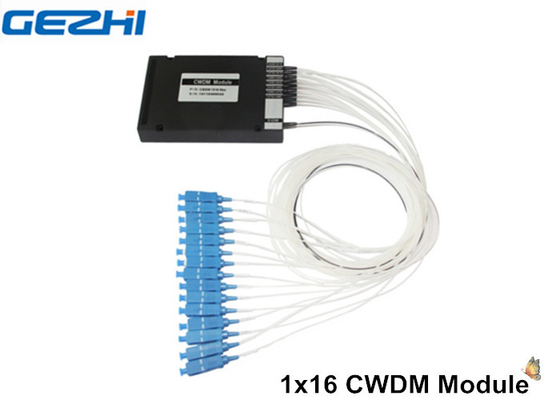

Passive Device 1 X 16 CWDM Mux Demux For WDM Network / CATV System 0



CWDM Mux Demux Passive System

Passive Device 1 X 16 CWDM Mux Demux For WDM Network / CATV System 1

Ordering Information



CWDM XX X XX X X XX
  Number of Channels

Confi

-guration

1st Channel Fiber Type Fiber Length In/Out Connector



04=4 Channel

08=8 Channel

16=16 Channel

18=18 Channel

N=N Channel



M=Mux

D=Demux

O=OADM



27=1270nm

……

47=1470nm

49=1490nm

……

61=1610nm

SS=special



1=Bare fiber

2=900um loose tube

3=2mmCable

4=3mmCable



1=1m

2=2m

S=Specify



0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST

6=LC

S=Specify
