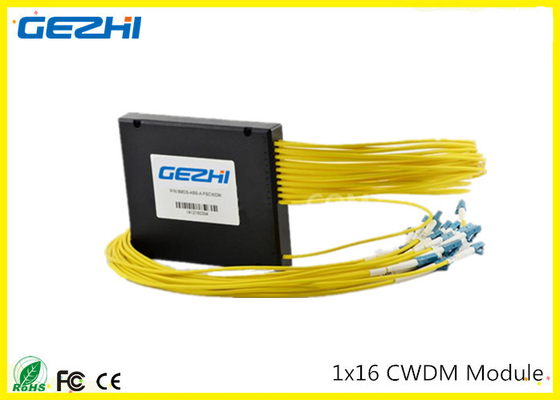

1x16CH CWDM Mux/Demux Module
Description:
CWDM and DWDM technologies provide an effective way to share one pair of fiber strands and put together various communications interfaces like: 10G, SONET OC-192, STM-64, Fiber Channel 1G/2G/4G, Gigabit Ethernet, OC3/OC12 or OC48 and E1/T1, just by using different wavelengths of light for each channel.
Our product range includes very affordable solutions for CWDM and DWDM technologies, with minimum or no management, but also carrier class professional solutions with complete management and monitoring functions, redundancy on fiber and power supplies and Telco grade specifications that can go up to 80 channels of DWDM 10G capacity on a single fiber circuit.
Our WDM Optical Mux products are flexible with a low-cost solution that enables the expansion of existing fiber capacity, and available with the Plastic ABS module cassette, 19" Rack Mountable box and standard LGX packaging. No matter what kind of connectors, like FC, ST, SC, LC, etc., are all available, and we can also mix different connectors on one device.
CWDM Mux Demux Application:
Specification:
| Parameter | Unit | 1x2 | 1x4 | 1x8 | 1x16 | ||||||
| Mux | Demux | Mux | Demux | Mux | Demux | Mux | Demux | ||||
| Channel Wavelength | nm | 1270~1610nm and 1271~1611 | |||||||||
| Center wavelength Accuracy | nm | ±0.5 | |||||||||
| Channel Spacing | nm | 20 | |||||||||
| Channel Passband (@-0.5dB bandwidth) | nm | >13 | |||||||||
| Insertion Loss | dB | 0.8 | 1.5 | 2.5 & 1.8 | 5.2 & 3.5 | ||||||
| Channel Ripple | dB | 0.3 | |||||||||
| Isolation | Adjacent | dB | N/A | >30 | N/A | >30 | N/A | >30 | N/A | >30 | |
| Non-adjacent | dB | N/A | >40 | N/A | >40 | N/A | >40 | N/A | >40 | ||
| Inertion Loss Temperature Sensitivity | dB/℃ | <0.005 | |||||||||
| Wavelength Temperature Shifting | nm/℃ | <0.002 | |||||||||
| Polarization Dependent Loss | dB | <0.1 | |||||||||
| Polarization Mode Dispersion | dB | <0.1 | |||||||||
| Directivity | dB | >50 | |||||||||
| Return Loss | dB | >45 | |||||||||
| Maximum Power Handling | mW | 300 | |||||||||
| Opterating Temperature | ℃ | -5~+75 | |||||||||
| Storage Temperature | ℃ | -40~85 | |||||||||

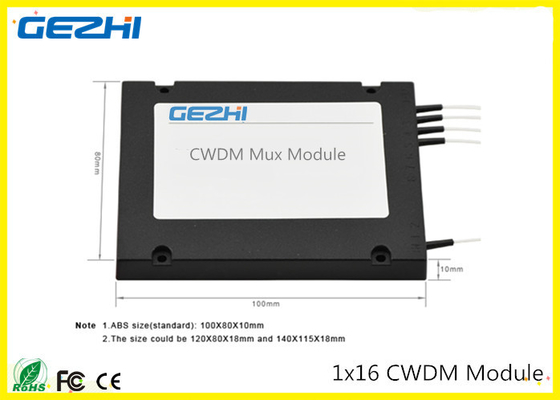

| Package dimension | mm | L100xW80xH10 | L141xW115xH18 | ||||||||
Note:
1. Specified without connectors. Add an additional 0.2dB loss per connector.
2. We can make low insertion loss solution as well. For more information, please email to shirley@gezhiphotonics.com
Front Panel Details:
Picture of 4CH Dual fiber CWDM, as a reference
① Common port:
SC,FC,LC,ST with UPC/APC connectors available.
② Monitor port:
Monitor Port,different tap percentage for your choice (5%,1%)
SC,FC,LC,ST with UPC/APC connectors available.
③ Upgrade Port:
Upgrade Port,different isolation for your choice(<15dB,15dB~30dB,30dB~40dB,50dB)
SC,FC,LC,ST with UPC/APC connectors available.
④ Standard port 1310nm/1550nm:
1310nm passband port: different isolation for your choice(15dB~30dB,30dB~40dB),meanwhile different bandwidth for your choice(±50nm,±6.5nm)
1550nm passband port: different isolation for your choice(15dB~30dB,30dB~40dB),meanwhile different bandwidth for your choice(±50nm,±6.5nm)
SC,FC,LC,ST with UPC/APC connectors available.
⑤ Mux/Demux port for specific wavelengths:
There are eighteen center wavelengths available from 1270nm to 1610nm, with each step 20nm for your choice.
SC,FC,LC,ST with UPC/APC connectors available.
Ordering Information:
| CWDM | XX | X | XX | X | X | XX |
| Number of Channels |
Confi -guration |
1st Channel | Fiber Type | Fiber Length | In/Out Connector | |
|
04=4 Channel 08=8 Channel 16=16 Channel 18=18 Channel N=N Channel |
M=Mux D=Demux O=OADM |
27=1270nm …… 47=1470nm 49=1490nm …… 61=1610nm SS=special |
1=Bare fiber 2=900um loose tube 3=2mmCable 4=3mmCable |
1=1m 2=2m S=Specify |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
|
|
