| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-Red/Blue WDM |
| MOQ: | 1 |
| Price: | Get Latest Price |
| Delivery Time: | 2~7working days |

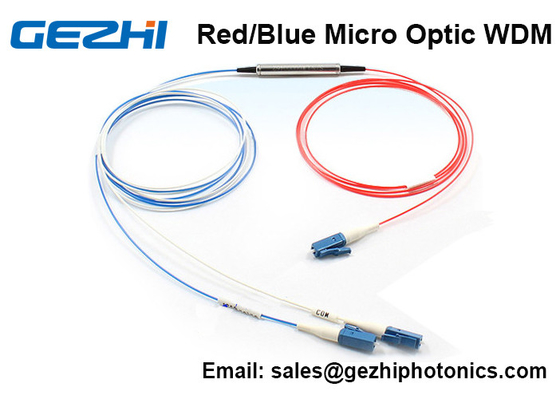

Micro-Optic WDM 3 port C Band Red/Blue filter in DWDM System
GEZHI 1x2 DWDM Red/Blue Band Filter is a passive micro optics device based on environmentally stable thin film filter technology. It is mainly used to separate or combine Red band wavelength signals and Blue band wavelength signals in C Band, in single fiber Bi-directional DWDM systems and high power amplification system . The components are characterized with wide passband, low insertion loss, high return loss, excellent environmental stability and high power handling capability.
In a DWDM module, which uses a Red/Blue filter, a Mux may be combined with a Demux. For example, the Mux combines DWDM channels in the Red band, while the Demux separates DWDM channels in the Blue Band. Using a Red/Blue filter, one can combine the Red Transmit channels and the Blue Receive channels onto a single fiber.
Features
Application
Performance Specifications
| Type | MWDM | ||
| Pass Channel Wavelength | nm | 1549.12~1562.83 (Red) | 1530.13~1541.55 (Blue) |
| Reflection channel Wavelength | nm | 1530.13~1541.55 (Blue) | 1549.12~1562.83 (Red) |
| Pass Channel insertion loss | dB | ≤0.50 | |
| Reflection Channel insertion loss | dB | ≤0.40 | |
| Channel Ripple | dB | ≤0.3 | |
| Adjacent channel isolation | dB | ≥30 | |
| Express channel isolation | dB |
≥15
|
|
| PDL | dB | ≤0.1 | |
| PMD | Ps/nm | ≤0.1 | |
| Thermal Stability | dB/℃ | ≤0.005 | |
| Directivity | dB | ≥50 | |
| Return loss | dB | ≥45 | |
| Power Handling | mW | 300 | |
| Operating temperature | ℃ |
-30~+80
|
|
| Storage temperature | ℃ | -40~+85 | |
| Max. Tensile Load | N | 5 | |
| Package Dimensions | mm | Φ5.5xL34(250um)/Φ5.5xL38(900um) | |
Note: 1. Insertion loss does not include connector, each connector will add 0.2dB loss.
2. Other wavelength can be made upon customer’s request. For example, L-Band R/B, C/L Band.
Ordering Information
| Wavelength | Package Spec | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| R/B=Red/Blue Wavelength |
1= Φ5.5mm×34mm 2= 90×20×10 mm 3=100×80×10.5 mm 4= 120×80×18 mm 5=140×115×18 mm 6=19”1U Rackmount X= Others |
9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
05=0.5m 10=1.0m 15=1.5m X=Others |
OO=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LC/APC X=Others |
More Picture:
|
|
