1x12 Optical CWDM Mux Demux 1271nm - 1571nm For 5G Telecom

Name: 1x12 Optical CWDM Mux Demux 1271nm - 1571nm For 5G Telecom
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: CWDM12CH
Price: 399.98 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	CWDM12CH
MOQ:	1
Price:	Get Latest Price
Delivery Time:	5-10 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/FCC/RoHS/TUV/UL

Product Name:

5G CWDM

Channel:

1x12

Channel Spcaing:

20nm

Wavelength:

1271~1371 & 1471~1571

Pakcage:

Insert ABS Box

Application:

5G Network

Packaging Details:

paper box with foam

Supply Ability:

100000Channel per month

Highlight:

1x12 Optical CWDM Mux Demux

5G Telecom CWDM Mux Demux

1x12 CWDM Module

Product Description

1x12 Optical CWDM Mux Demux for 5G telecom

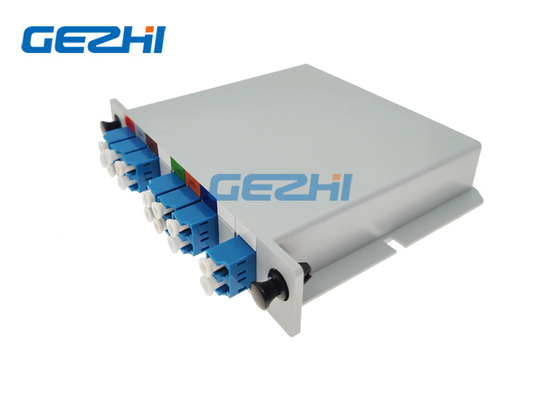

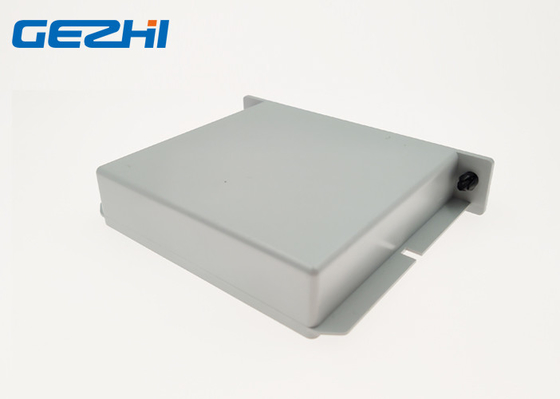

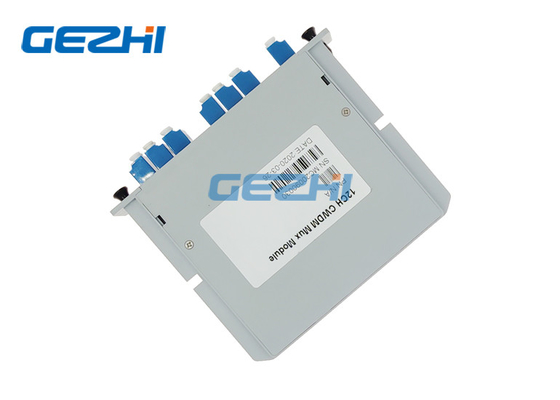

GEZHI 1x12 Optical CWDM Mux Demux for 5G telecom based on dielectric thin-film filter technology which with insert type ABS box package connect by LC/UPC adaptor. The wavelength of 1x12 Optical CWDM Mux Demux for 5G telecom is from 1271nm to 1571nm, transmission on a single optical fiber with only 3dB link insertion loss. The 1x12 Optical CWDM Mux Demux for 5G telecom has high channel isolation and can therefore be used in a bi-directional system. The module can be used as a multiplexer or de-multiplexer.

Features

Applications

12 channels per fiber
Bi-directional

Low insertion loss
Can be used as multiplexer or de-multiplexer

Can be insert on 3U Rackmount Equipment

Optical video networks

Line Monitoring
Dark fiber networks

Data Center
Broadcast contribution networks

Specification

Parameter		Unit	1x12 CWDM Module
			Mux	Demux

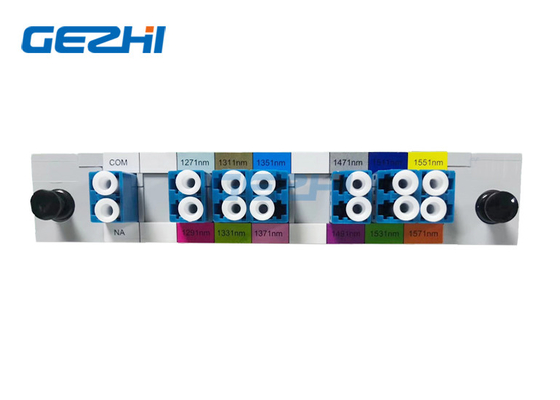

Channel Wavelength		nm	1271~1371nm & 1471~1571nm
Center wavelength Accuracy		nm	±0.5
Channel Spacing		nm	20
Channel Passband (@-0.5dB bandwidth		nm	>14
Max Insertion Loss		dB	<3.0	<3.0
Channel Ripple		dB	0.3
Isolation	Adjacent	dB	>30
	Non-adjacent	dB	>40
Inertion Loss Temperature Sensitivity		dB/℃	<0.005
Wavelength Temperature Shifting		nm/ ℃	<0.002
Polarization Dependent Loss		dB	<0.1
Polarization Mode Dispersion		dB	<0.1
Directivity		dB	>50
Return Loss		dB	>45
Maximum Power Handling		mW	300
Opterating Temperature		℃	-5~+75
Storage Temperature		℃	-40~85
Package dimension		mm	L130x100x125

Note: 1. Customization is available.

2. Specified with connector

Ordering Information

CWDM

XXX

Number of Channels

Module type

Cable type

Fiber length

Input connector

Output

connector

CWDM

01=1Channel
02=2 Channel
03=3 Channel
04=4 Channel
......
12=12Channel
16=16Channel
18=18Channel

0=100x80x10 mm
1=142x102x14.5 mm
2=LGX Box
3=19″1U Rack
X=Others

00=none
09=900um
Loose tube
20=2.0mm
30=3.0mm

05=0.5m
10=1.0m
15=1.5m
30=3.0m
40=4.0m
50=5.0m
......

0=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
X=Customized

1x12 Optical CWDM Mux Demux for 5G telecom Filter Cascading

1x12 Optical CWDM Mux Demux 1271nm - 1571nm For 5G Telecom 0

1x12 Optical CWDM Mux Demux for 5G telecom Solution

1x12 Optical CWDM Mux Demux 1271nm - 1571nm For 5G Telecom 1
