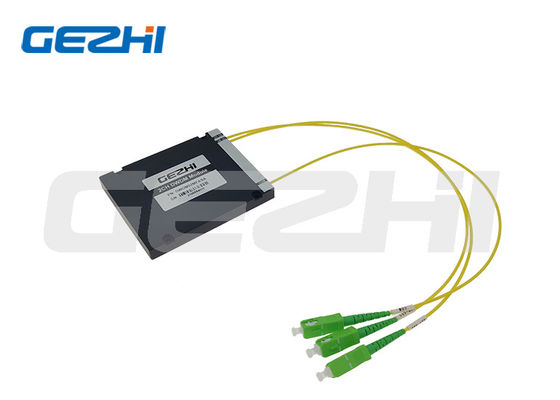

100Ghz DWDM Mux Demux with Low Insertion Loss in Compact ABS Box for WDM Networks

Name: 100Ghz DWDM Mux Demux with Low Insertion Loss in Compact ABS Box for WDM Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: DOADM101XXX
Price: 78.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	DOADM101XXX
MOQ:	1pc
Price:	US$48-US$108
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Features:

Low Insertion Loss

Name:

2CH Dwdm Wdm ABS Box Single Mode Optical Fiber Solutions

Wavelength:

1510/1530nm

Channel Number:

2CH

Application:

WDM Network

Fiber Connector:

LC/UPC, FC/APC, SC/APC Etc.

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

2CH DWDM WDM

ABS DWDM WDM

Product Description

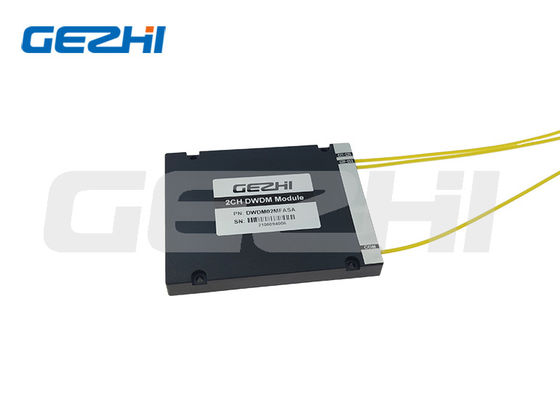

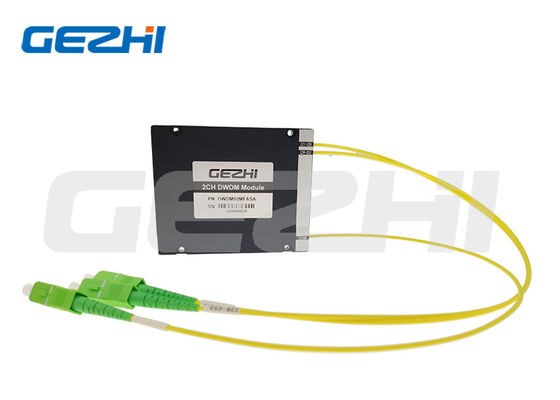

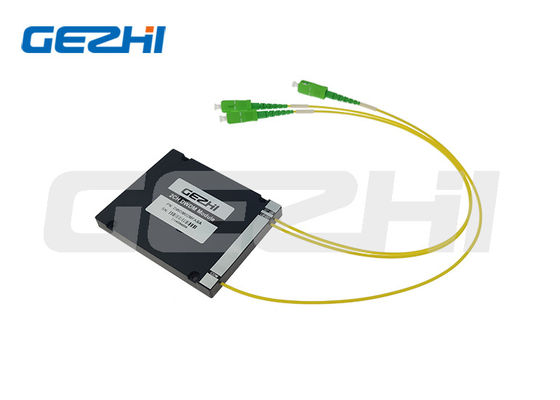

100Ghz 2CH DWDM WDM ABS Box Single Mode Optical Fiber Solutions

GEZHI offers a comprehensive range of DWDM and Optical Switches. This C53-C60 DWDM fiber multiplexer is a low-loss, high-density passive optical module based on thin film coating technology, featuring wavelengths from C53 to C60 with an express port for future development and a monitor port for equipment status monitoring.

The module contains a multiplexer or demultiplexer in a compact ABS box measuring 100*80*10mm for single fiber applications. With low insertion loss, high stability, and reliability, it's ideally suited for FTTX, WDM networks, data centers, and other demanding applications.

Key Features

Low Insertion Loss
High Channel Isolation
High Stability and Reliability

Applications

Data Center

WDM Network

Long-haul Transport

DWDM Filter Cascading

Single Fiber DWDM Optics Transmission Solution

Technical Specifications

Parameter	Unit	DWDM Fiber Multiplexer
Channel Number	--	8+1CH
Operation Wavelength	nm	C53 to C60
Channel Central Wavelength	nm	ITU-T Grid @DWDM
Channel Passband	nm	0.8 (100Ghz)
Insertion Loss @PB	dB	<2.5
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>34
Isolation @Reflect Channel	dB	>15
Passband Ripple	dB	<0.5
Polarization Dependent Loss	dB	<0.15
Polarization Mode Dispersion	ps	<0.1
Directivity & Return Loss	dB	Directivity: >50 Return Loss:>45
Power Handling	mW	<500
Connector	--	LC/UPC or customized
Fiber Type	--	SMF-28e or Customized
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85
Package Dimension	mm	ABS box 100x80x10

Package
