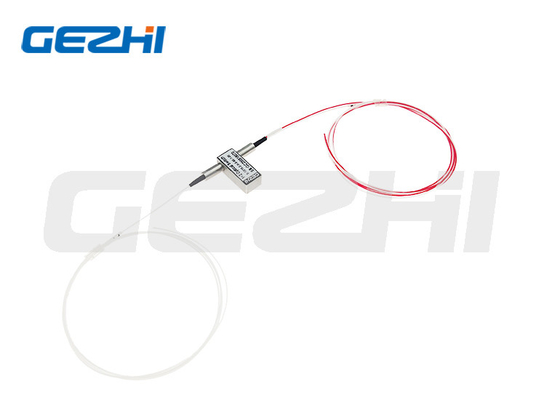

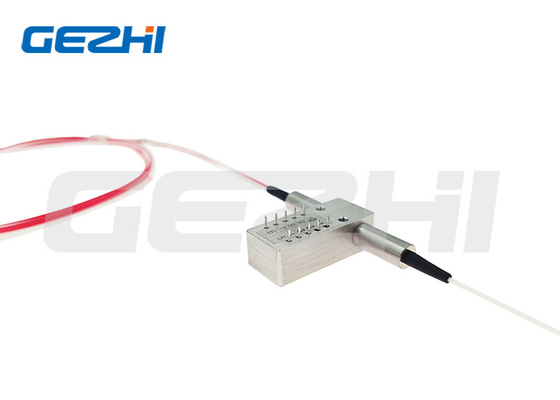

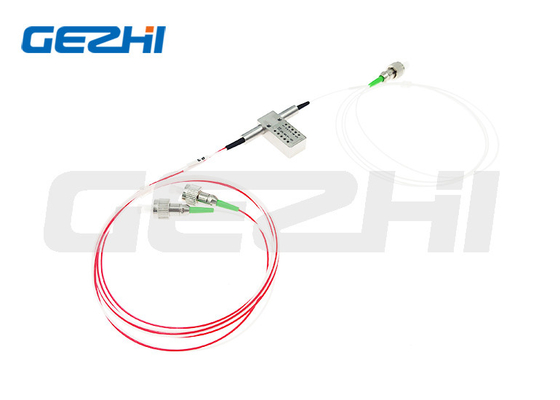

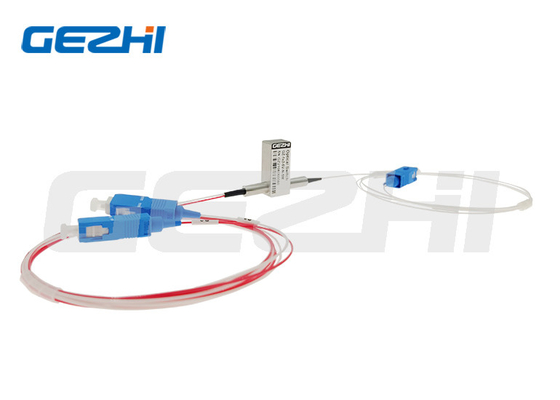

Broad Wavelength 1x2 Optical Switch Non-Latching Opto-Mechanical Fiber Optic Switch with High Reliability

Brand Name:	GEZHI or OEM
Model Number:	GZ-1x2-13/15
MOQ:	1pc
Price:	US$28-US$58
Delivery Time:	2-7 work days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

1x2 Optical Switches

Control Type:

Non-Latching

Voltage:

5V Or 3V

Wavelength:

1310/1550nm

Feature:

High Reliability

Connector:

FC/UPC Or Customized

Wavelength Range:

850±40 / 1300±40 | 1260~1650

Packaging Details:

2pcs in a foam with plastic Box

Supply Ability:

50000pcs per month

Highlight:

5V 1x2 switch

mmf 1x2 switch

latched 2 port fiber switch

Product Description

Broad Wavelength 1x2 Switch MMF or SMF Opto-Mechanical Latched Type

Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.

1x2 Optical Switches

The 1x2 optical switch is connected to the optical path by connecting or blocking the optical signal. The product is controlled by electrical signal to switch the optical path. The excellent design makes the product have the advantages of high stability, high reliability, and low loss, which are widely used in the switching and protection of optical networks.

Features & Applications

Features

Fail-Safe Latching
Unmatched Low Cost
Low Optical Distortions
Epoxy-Free Optical Path
High Reliability

Applications

Channel Blocking
Configurable Add/Drop
System Monitoring
Instrumentation

Specifications

Parameters	Unit	GZ-FSW-1*2
Wavelength Range	nm	850±40 / 1300±40 \| 1260~1650
Operating Wavelength	nm	850/1300 \| 1310/1490/1550/1625/1650
Insertion Loss	dB	Typ:0.8 Max:1.2 \| Typ:0.5 Max:1.0
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	V	3.0 or 5.0
Lifetime	Time	≥10⁷
Switch Time	ms	≤8
Transmission Power	mW	≤500
Operating Temperature	℃	-20~+80
Storage Temperature	℃	-40~+85
Weight	g	16
Dimension	mm	(L)27(W)12.0(H)8.2

Pin Configuration

Type	Pin	Electric Drive	Status Sensor
Latching	P1-P2	-- \| -- \| GND \| V+	Close \| Open \| Open \| Close
Latching	P1-P3	V+ \| GND \| -- \| --	Open \| Close \| Close \| Open
Non-latching	P1-P2	-- \| -- \| -- \| --	Close \| Open \| Open \| Close
Non-latching	P1-P3	V+ \| -- \| -- \| GND	Open \| Close \| Close \| Open

Order Information

GZ-1*2-13/15

Mode	Wavelength	Voltage Type	Control Model	Fiber Type	Fiber Diameter	Fiber Length	Connector
S=SM M=MM	85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others	3=3V 5=5V	L=Latching N=Non-Latching	5=50/125 6=62.5/125 9=9/125 X=Others	25=250um 90=900um 20=2.0mm 30=3.0mm X=Others	1=1m 2=1.5m X=Others	00=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LP/APC X=Others

Optical Route

Mechanical Drawing
