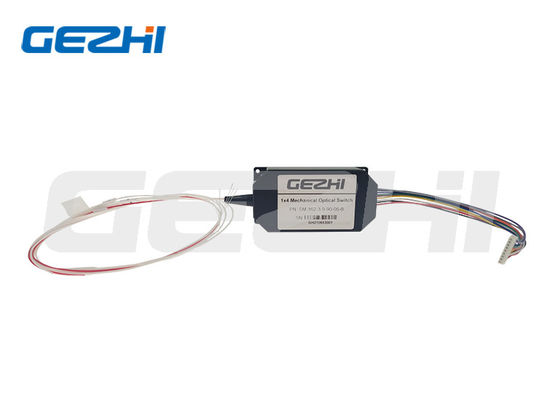

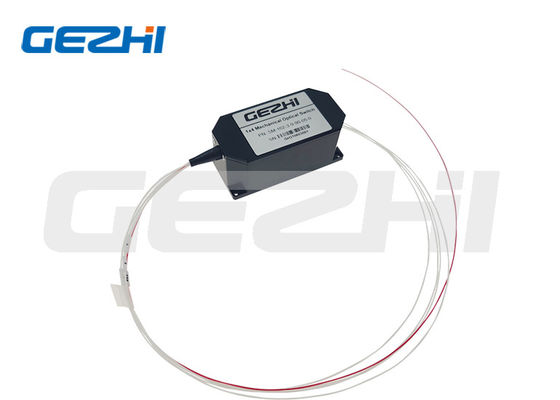

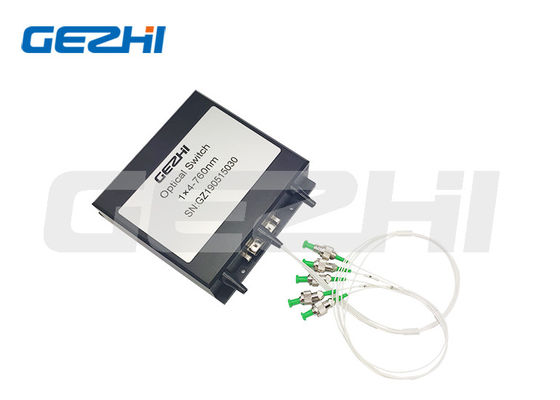

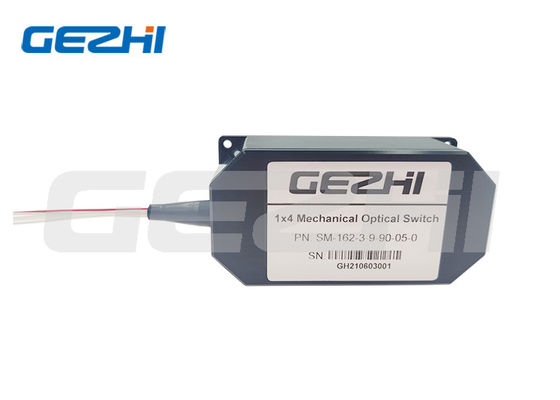

1x4 Ports Single Mode Non Latching Fiber Optical Switch for Ring Network Applications

Name: 1x4 Ports Single Mode Non Latching Fiber Optical Switch for Ring Network Applications
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: OSW-1x4-13/15
Price: 434.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	OSW-1x4-13/15
MOQ:	1pc
Price:	US$280-US$589
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Port Configuration:

1x4

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

1x4 ports single mode fiber switch

Non Latching single mode fiber switch

singlemode switch fiber optic 4 port

Product Description

1x4 Ports Single Mode Fiber Switch Non Latching

Product Overview

GEZHI 1×4 Multi-Channel Fiber Optical Switches are functional components with optical route switching capabilities. In optical fiber transmission systems, they are used for multi-light source/detector selection, multi-channel fiber monitoring, and optical fiber path protection. Additionally, they are employed in optical fiber test systems for fiber and component testing, outdoor cable testing, and multi-spot optical sensors monitoring systems.

Key Features

Low Insertion Loss
More Than 128 Channels
High Stability & Reliability
Parallel Interface (TTL)
Modularized Design
Customized Wavelength Available

Product Specifications

Parameter	Unit	OSW-1x4
Wavelength Range	nm	850±40/1300±40 \| 1260~1650
Operating Wavelength	nm	850/1300 \| 1310/1550
Insertion Loss	dB	<1.2 \| <1.0
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
Polarization Dependent Loss	dB	0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	V	5.0 or 12v
Lifetime	times	≥10⁷
Switch Time	ms	≤8
Optical Power	mW	≤500
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Dimension	mm	135×64×32

Frequently Asked Questions

Q1: Can I have a sample order? What is your MOQ?

Sample orders are welcome for testing and quality verification. We have no minimum order quantity (MOQ), and single-piece samples are available. Mixed samples are also acceptable.

Q2: What's the Lead Time?

Normal lead time is approximately 1 week. For large quantities and special products, please check lead time with our sales representative. We maintain stock for some products and can ship within 1-3 days after payment receipt.

Q3: What are the payment terms?

Payment terms include T/T, PayPal, Western Union, cash payment, and ALI.

Q4: What is your warranty time?

3 years warranty.

Q5: Could I use our own logo, label and package?

Yes, we provide OEM services according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
