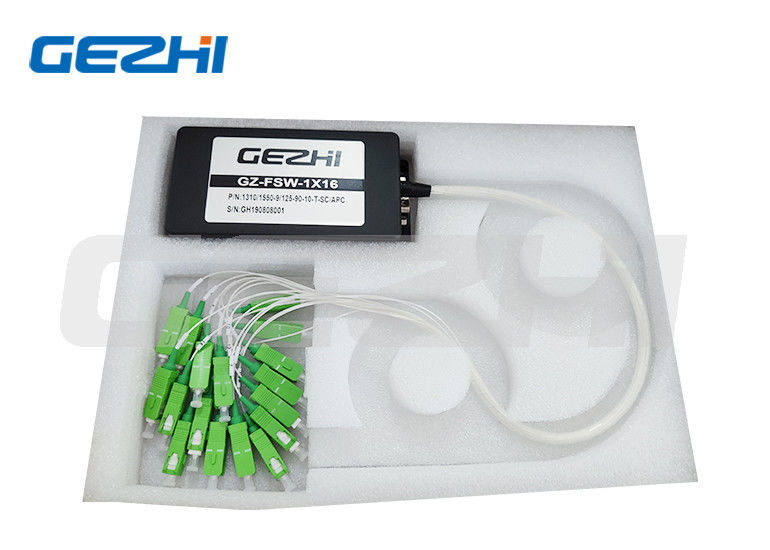

Customizable Wavelength 1x16 Multi Channel Fiber Optical Switch with Low Insertion Loss

Name: Customizable Wavelength 1x16 Multi Channel Fiber Optical Switch with Low Insertion Loss
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: OSW-1x16-13/15
Price: 670.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	OSW-1x16-13/15
MOQ:	1pc
Price:	US$560-US$780
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Type:

FTTx Solutions

Port:

1x16

Warranty Time:

3 Years

Wavelength:

1260-1650nm

Application:

Ring Network

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

multi channel fiber optical switches

1x32 fiber optical switches

customizable fiber optic switch 16 port

Product Description

Customizable Wavelength Fiber Optical Switches 1x16 Multi Channel Single Mode Multimode

Product Overview

The 1x16 Multi Channel Optical Switches feature 1 input and 16 output fiber ports that selectively transmit, redirect, or block optical power in fiber optic transmission lines.

GEZHI Photonics produces a full range of optical switches with customized specifications including 1x4, 1x8, 1x12, 1x16, 1x24, 1x32, 1x64, and up to 1x128 multi-channel configurations.

Key Features

Low Insertion Loss
More Than 128 Channels
High Stability & Reliability
Parallel Interface (TTL)
Customized Wavelength Available
Modularized Design

Product Specifications

Parameter	Unit	OSW-1x16 Specifications
Wavelength Range	nm	850±40/1300±40 \| 1260-1650
Operating Wavelength	nm	850/1300 \| 1310/1550
Insertion Loss	dB	<1.2
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
Polarization Dependent Loss	dB	0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	V	3.0 or 5.0
Lifetime	times	≥10⁷
Switch Time	ms	≤8
Optical Power	mW	≤500
Operating Temperature	℃	-20 to +75 (-40 to +85 available)
Storage Temperature	℃	-40 to +85
Dimension	mm	27.0×12.0×8.2 (L×W×H)

Frequently Asked Questions

Q1: Can I have a sample order? What is your MOQ?

A1: Sample orders are welcome for quality testing. We have no minimum order quantity - even 1 piece samples are available. Mixed samples are also acceptable.

Q2: What's the Lead time?

A2: Normal lead time is approximately 1 week. For large quantities and special products, please check with our sales representative. We maintain stock for some products and can ship within 1-3 days after payment.

Q3: What are the payment terms?

A3: We accept T/T, PayPal, Western Union, cash payment, and ALI.

Q4: What is your warranty time?

A4: 3 years warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we provide OEM services according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
