Industrial 16 Ports Fiber Optic Ethernet Switch with 100M Speed and Fast Switching Time

Name: Industrial 16 Ports Fiber Optic Ethernet Switch with 100M Speed and Fast Switching Time
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: OSW-1x16-13/15-U
Price: 543.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	OSW-1x16-13/15-U
MOQ:	1pc
Price:	US$398-US$688
Delivery Time:	2-7 work days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength Range:

1260~1650 Nm

Packaging Details:

2pcs in a foam with plastic Box

Supply Ability:

50000pcs per month

Highlight:

fiber optic ethernet switch 100M

16 port fiber optic ethernet switch

Industrial switch fiber optic 16 port

Product Description

Industrial 16 Ports Fiber Optic Ethernet Switch 100M

Product Overview

The 1×16 rack-mounted optical switch is a functional device with optical route control and switching capabilities. It can be manually selected from the front panel or controlled via RS232 port, Ethernet port, and auto-scanned at certain frequencies. In optical fiber transmission systems, it is used for multi-channel fiber monitoring, multi light source/detector selection, and optical fiber path protection. It is also employed in optical fiber test systems for fiber and component testing, outdoor cable testing, and multi-spot optical sensors monitoring systems.

Product Specifications

Parameter	Unit	OSW-1x8-U or OSW-1x16-U
Wavelength Range	nm	850±40/1300±40 \| 1260~1650
Operating Wavelength	nm	850/1300 \| 1310/1550
Insertion Loss	dB	Typ. ≤0.8dB, Max.≤1.5dB \| Typ. ≤0.8dB,Max.≤1.5 dB
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
Polarization Dependent Loss	dB	0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	V	AC:100～240 (50/60Hz)
Lifetime	times	≥107
Switch Time	ms	≤10
Optical Power	mW	≤500
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Dimension	mm	1U:483 x 230 x 45

Features at a Glance

Low insertion loss, fast switching
SerialNet, high reliability, high stability
LED display panel with visual display
Transparent transmission signal
RS232 Control & RJ45 Ethernet Remote Management

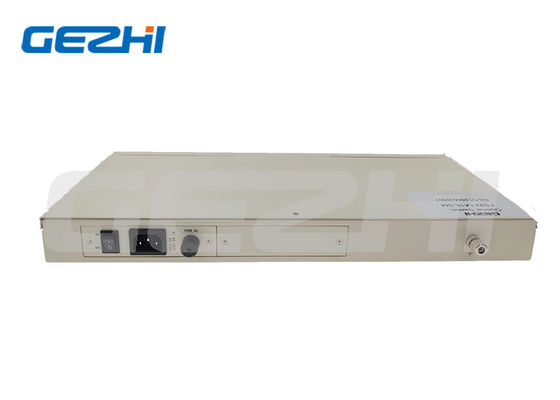

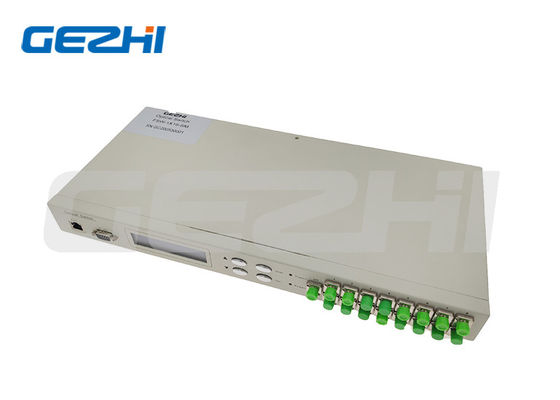

Product Images

Product Packaging

Frequently Asked Questions

Q1: Can I have a sample order? What is your MOQ?

A1: Sample orders are welcome to test and check quality. We don't have a minimum order quantity (MOQ), 1 piece sample is available. Mixed samples are also acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1 week. For large quantities and special products, please check lead time with our sales representative. We keep stock for some products and can ship within 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment terms: T/T, PayPal, Western Union, cash payment, AliPay, etc.

Q4: What is your warranty time?

A4: 3 years warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we provide OEM service according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
