RJ45 Ethernet Remote Management 1x32 Ports Fiber Optical Switch with Low Insertion Loss for Optical Networks

Name: RJ45 Ethernet Remote Management 1x32 Ports Fiber Optical Switch with Low Insertion Loss for Optical Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: OSW-1x32-13/15-U
Price: 1,095.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	OSW-1x32-13/15-U
MOQ:	1pc
Price:	US$890-US$1300
Delivery Time:	2-7 work days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Feature:

Fast Switching Time

Connector:

FC/UPC Or Customized

Warranty Time:

3 Years

Application:

Cable Monitoring And Maintaining System

Control Type:

Latching Or Non-Latching

Wavelength:

1310/1550nm

Packaging Details:

2pcs in a foam with plastic Box

Supply Ability:

50000pcs per month

Highlight:

Low Insertion Loss fiber optical switches

100M fiber optical switches

32 Ports fiber optic ethernet switch

Product Description

RJ45 Ethernet Remote Management 1x32 Ports 100M Fiber Optical Switches

Product Overview

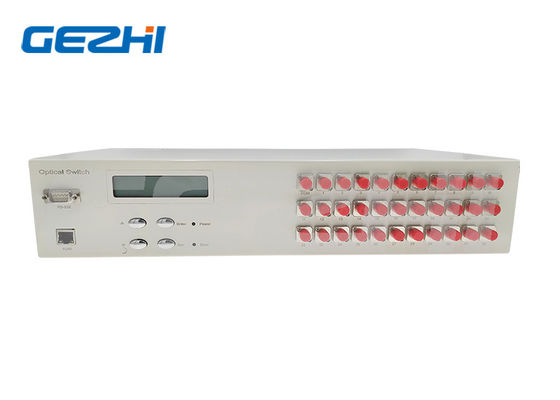

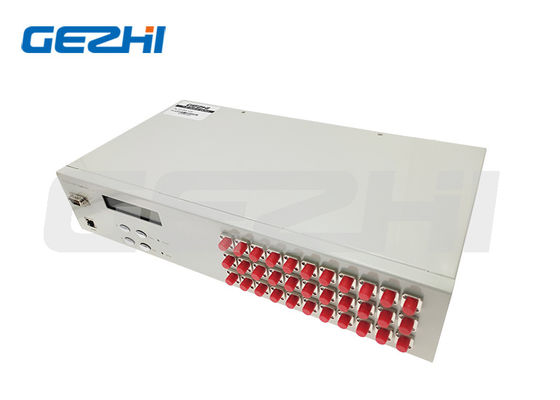

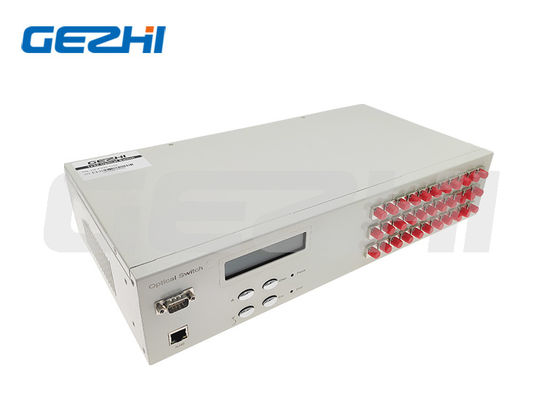

This 1x32 Optical Switches Rackmount features one input and 32 output optical fiber ports, designed for selective transmission, redirection, or blocking of optical power in fiber transmission lines. These bidirectional optical switches support operation in both 1x128 and 128x1 directions, making them ideal for optical fiber communication networks and measuring instruments.

The front panel bulkheads accommodate various connector types including FC/APC, FC/UPC, SC/APC, SC/UPC, LC/APC, LC/UPC, ST/APC, ST/UPC, and MPO connectors. The standard 2RU 19" rackmount configuration supports 1x24, 1x32, 1x48, 1x64, or customized optical switch arrangements.

Product Specifications

Parameter	Unit	OSW-1x32-U
Wavelength Range	nm	850±40/1300±40 \| 1260~1650
Operating Wavelength	nm	850/1300 \| 1310/1550
Insertion Loss	dB	Typ. ≤0.8dB, Max.≤1.5dB \| Typ. ≤0.8dB, Max.≤1.5 dB
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
Polarization Dependent Loss	dB	0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	V	AC:100～240 (50/60Hz)
Lifetime	times	≥107
Switch Time	ms	≤10
Optical Power	mW	≤500
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Dimension	mm	1U:483 x 230 x 45

Key Features

Low Insertion Loss and Fast Switching
SerialNet, High Reliability, High Stability
LCD Display

Frequently Asked Questions

Q1: Can I have a sample order? What is your MOQ?

Sample orders are welcome for quality testing. We have no minimum order quantity - single unit samples are available, and mixed samples are acceptable.

Q2: What's the Lead time?

Normal lead time is approximately 1 week. For large quantities and special products, please check with our sales representative. Some products are kept in stock and can ship within 1-3 days after payment.

Q3: What are the payment terms?

Payment methods include T/T, PayPal, Western Union, cash payment, and ALI.

Q4: What is your warranty time?

3 years warranty.

Q5: Could I use our own logo, label and package?

Yes, we provide OEM services according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
