Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optical Switches
Created with Pixso. GEZHI Photonics 1x32 Ports Optical Switch for FTTx Solutions with 1310/1550nm Wavelength

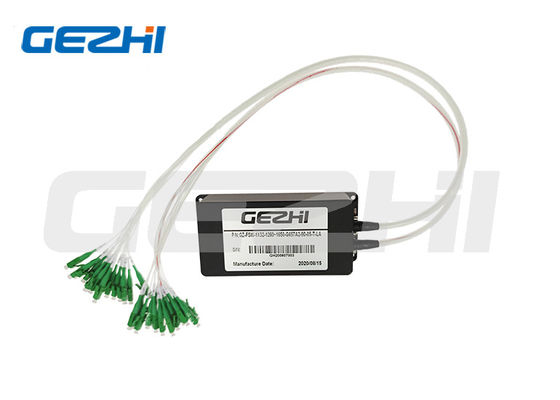

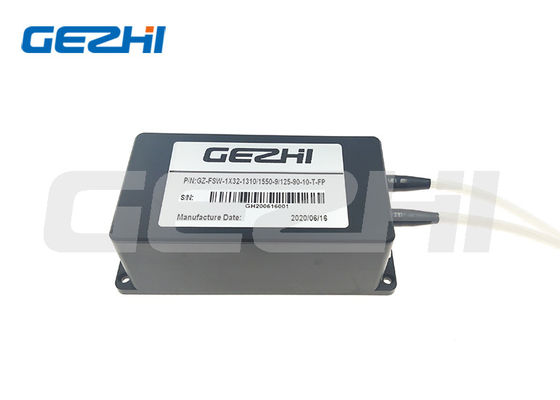

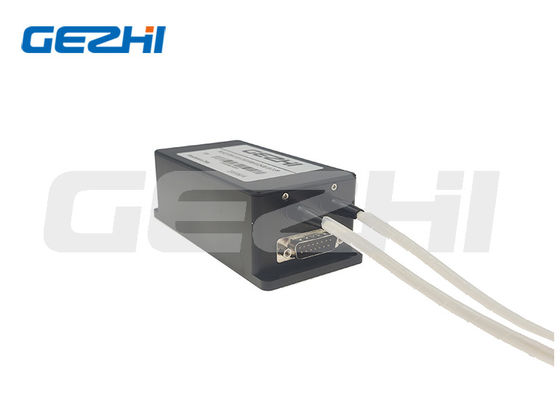

GEZHI Photonics 1x32 Ports Optical Switch for FTTx Solutions with 1310/1550nm Wavelength
  • name
  • name
  • name

GEZHI Photonics 1x32 Ports Optical Switch for FTTx Solutions with 1310/1550nm Wavelength

Brand Name: GEZHI or OEM
Model Number: OSW-1x32-13/15
MOQ: 1pc
Price: US$780-US$890
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Type:
FTTx Solutions
Port:
1x32
Warranty Time:
3 Years
Control Type:
Latching Or Non-Latching
Application:
Ring Network
Packaging Details:
Paper box
Supply Ability:
100000Channel per month
Highlight:

1x32 Ports optical network switch

,

FTTx optical network switch

,

network 32 port fiber optic switch

Product Description
GEZHI Photonics 1x32 Ports Optical Network Switch
Professional FTTx solutions operating at 1310/1550nm wavelengths for optical fiber communication networks and measurement instruments.
Product Overview
The 1x32 Opto-Mechanical Optical Switch features 1 input and 32 output fiber ports that selectively transmit, redirect, or block optical power in fiber optic transmission lines. These bi-directional all-optical switches can be used in either 1xN or Nx1 configurations.
Key Features
  • Supports more than 128 channels
  • Low loss and high reliability performance
  • Parallel interface (TTL) compatibility
  • Modularized design for easy integration
  • Epoxy-free optical path design
Applications
Ring networks, remote monitoring in optical networks, and testing of fiber and optical components.
Technical Specifications
Parameter Unit OSW-1x32
Wavelength Range nm 850±40/1300±40 | 1260-1650
Operating Wavelength nm 850/1300 | 1310/1550
Insertion Loss dB <1.2
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
Polarization Dependent Loss dB 0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply V 3.0 or 5.0
Lifetime times ≥10⁷
Switch Time ms ≤8
Optical Power mW ≤500
Operating Temperature ℃ -20 to +75 (-40 to +85 available)
Storage Temperature ℃ -40 to +85
Dimension mm 27.0*12.0*8.2 (L*W*H)
1xN Optical Switches Control Chart
GEZHI Photonics 1x32 Ports Optical Switch for FTTx Solutions with 1310/1550nm Wavelength 0
Frequently Asked Questions
Q: Can I place a sample order? What is your MOQ?
A: Sample orders are welcome for quality testing. We have no minimum order quantity - even 1 piece samples are available. Mixed samples are also acceptable.
Q: What is the lead time?
A: Normal lead time is approximately 1 week. For large quantities and special products, please check with our sales team. We maintain stock for some products and can ship within 1-3 days after payment confirmation.
Q: What are your payment terms?
A: We accept T/T, PayPal, Western Union, cash payment, and Alibaba transactions.
Q: What is your warranty period?
A: We provide a 3-year warranty on all products.
Q: Can I use my own logo, label, and packaging?
A: Yes, we offer OEM services and can customize product labels, logos, part numbers, serial numbers, and packaging according to your requirements.
