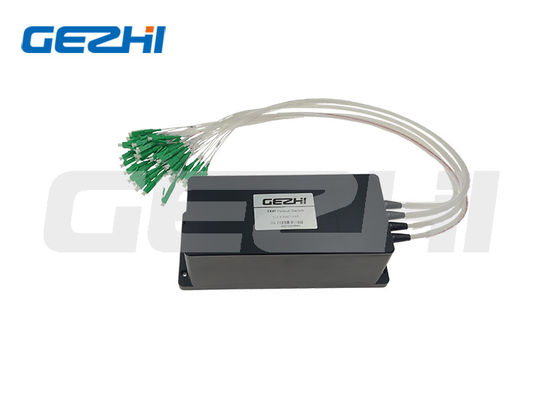

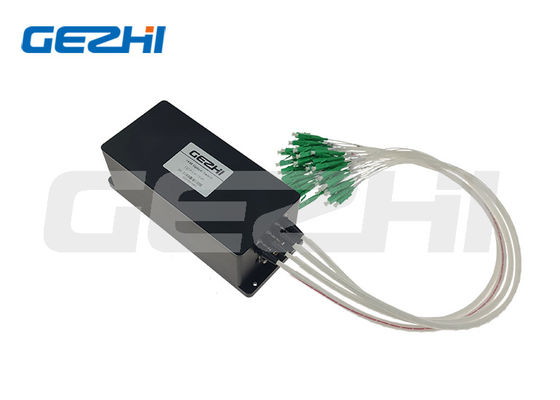

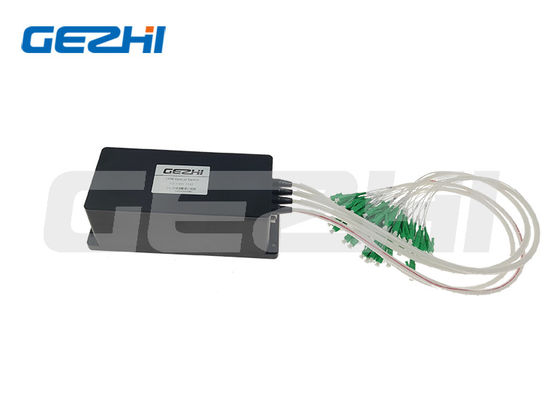

1x48 Ports Fiber Optical Switch for FTTx Ring Network Remote Monitoring with Low Loss

Name: 1x48 Ports Fiber Optical Switch for FTTx Ring Network Remote Monitoring with Low Loss
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: OSW-1x48-13/15
Price: 488.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	OSW-1x48-13/15
MOQ:	1pc
Price:	US$289-US$688
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength Range:

1260-1650nm

Supply Ability:

50000pcs per month

Highlight:

1x48 Ports fiber optical switches

FTTx fiber optical switches

1x48 Ports fiber optic network switch

Product Description

1x48 Ports Fiber Optical Switches For FTTx Ring Network Remote Monitoring

Product Overview

GEZHI 1×48 Multi-Channel Fiber Optical Switches are functional components with optical route switching capability. In optical fiber transmission systems, they are used for multi-light source/detector selection, multi-channel fiber monitoring, and optical fiber path protection. They are also employed in optical fiber test systems for fiber and component testing, outdoor cable testing, and multi-spot optical sensors monitoring systems.

Features & Applications

Features	Applications
More Than 128 Channels	Ring Network
Low Loss and High Reliability	Remote Monitoring in Optical Network
Parallel Interface (TTL)	Testing of Fiber, Optical Component
Modularized Design
Epoxy-free on Optical Path

Technical Parameters

Parameters	Unit	GZ-FSW-1 ×N
Insertion Loss	dB	1 < N ≤ 45: Typ: 0.8 Max: 1.0 45 < N ≤ 88: Typ: 1.2 Max: 1.5 88 < N ≤ 128: Typ: 1.5 Max: 1.8
Wavelength Range	nm	850±40 / 1300±40 \| 1260 ~ 1650
Test Wavelength	nm	850 / 1300 \| 1310 / 1550
Return Loss	dB	MM ≥ 30 SM ≥ 50
Crosstalk	dB	≥ 55
PDL	dB	≤ 0.05
WDL	dB	≤ 0.25
TDL	dB	≤ 0.25
Repeatability	dB	≤ ±0.05
Durability	Cycles	≥ 10 Million
Switching Time	ms	≤ 10 (Sequence switch time of adjacent channel)
Optical Power	mW	≤500
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Dimension	mm	135×40×32 (N≤4) \| 135×64×32 (N≤12) \| 184×78×36 (N≤16) 184×78×66 (N≤45) \| 184×156×66 (N≤88) \| 184×220×66 (N≤128) 140×77.5×32 (N≤16) \| 140×77.5×64 (N≤32)

Product Packaging

Ordering Information

Channel	Fiber Type	Test Wavelength	Tube Type	Fiber Length	Connector
1 ~ 128	SM: SM, 9/125 M5: MM, 50/125 M6: MM, 62.5/125 X: Others	850: 850nm 1310: 1310nm 1550: 1550nm 13/15:1310/1550nm X:Others	90: 900um 20: 2.0mm 30: 3.0mm X: Others	05: 0.5m 10: 1.0m 15: 1.5m X: Others	OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others

Frequently Asked Questions

Q1: Can I have a sample order? What is your MOQ?

A1: Sample orders are welcome to test and check quality. We don't have MOQ requirements - 1 piece samples are available. Mixed samples are also acceptable.

Q2: What's the Lead time?

A2: Normal lead time is about 1 week. For large quantities and special products, please check lead time with our sales representative. We keep stock for some products and can ship within 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment terms: T/T, PayPal, Western Union, cash payment, ALI, etc.

Q4: What is your warranty time?

A4: 3 years warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we provide OEM services according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
