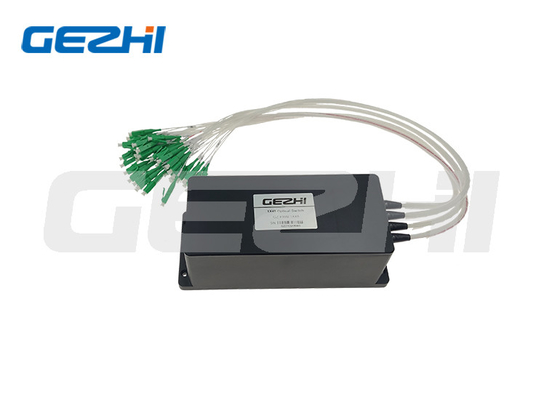

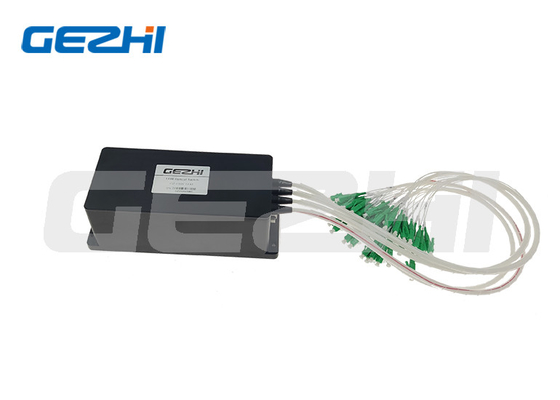

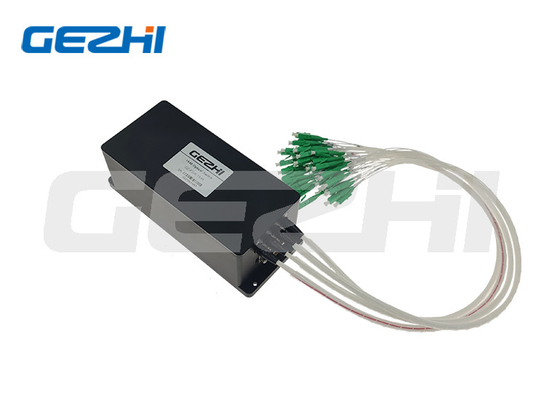

1x48 Ports Fiber Optical Switches For FTTx Ring Network Remote Monitoring

1x48 Ports Fiber Optical Switches For FTTx Ring Network Remote Monitoring

1x48 Ports Fiber Optical Switches For FTTx Ring Network Remote Monitoring

Brand Name:	GEZHI or OEM
Model Number:	OSW-1x48-13/15
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Type:

FTTx Solutions

Use:

System Monitor

Warranty Time:

3 Years

Wavelength:

1260-1650nm

Voltage:

5V Or 12V

Fiber Connector:

LC/UPC, LC/APC, SC/UPC Etc.

Supply Ability:

50000pcs per month

Highlight:

1x48 Ports fiber optical switches

,

FTTx fiber optical switches

,

1x48 Ports fiber optic network switch

Product Description

Product Overview

1x48 Multi Channel Optical Switches

GEZHI 1×48 Multi-Channele Fiber Optical switches is a kind of functional component, with the ability of switching optical route. In optical fiber transmission system, it is used for multi light source/ detector selection, multi-channel fiber monitoring, and ptical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test,outdoor cable test and multi-spot optical sensors monitoring system.

Features At a Glance


			Features:
			Application:

			More Than 128 Channels
			Ring Network

			Low Loss and High Reliability
			Remote Monitoring in Optical Network

			Parallel Interface (TTL)

			Testing of Fiber, Optical Component

			Modularized Design

			Epoxy-free on Optical Path

Technical Paremeter

			Parameters
			Unit
			GZ-FSW-1×N

			Insertion Loss
			dB
			1 < N ≤ 45
			45 < N ≤ 88
			88 < N ≤ 128

			Typ: 0.8 Max: 1.0
			Typ: 1.2 Max: 1.5
			Typ: 1.5 Max: 1.8

			Wavelength Range
			nm
			850±40 / 1300±40
			1260 ~ 1650

			Test Wavelength
			nm
			850 / 1300
			1310 / 1550

			Return Loss
			dB
			MM ≥ 30 SM ≥ 50

			Crosstalk
			dB
			≥ 55

			PDL
			dB
			≤ 0.05

			WDL
			dB
			≤ 0.25

			TDL
			dB
			≤ 0.25

			Repeatability
			dB
			≤ ±0.05

			Durability
			Cycles
			≥ 10 Million

			Switching Time
			ms
			≤ 10 (Sequence switch time of adjacent channel)

			Optical Power
			mW
			≤500

			Operating Temperature
			℃
			-20 ~ +70

			Storage Temperature
			℃
			-40 ~ +85

			Relative Humidity
			%
			5 ~ 95

			Dimension
			mm
			135×40×32 (N≤4)
			135×64×32 (N≤12)
			184×78×36 (N≤16)

			184×78×66 (N≤45)
			184×156×66 (N≤88)
			184×220×66 (N≤128)

			140×77.5×32 (N≤16)
			140×77.5×64 (N≤32)

Product Packing

Ordering Information

			Channel
			Fiber Type
			Test Wavelength
			Tube Type
			Fiber Length
			Connector

			1 ~ 128
			SM: SM, 9/125

			M5: MM, 50/125

			M6: MM, 62.5/125

			X: Others
			850: 850nm

			1310: 1310nm

			1550: 1550nm

			13/15:1310/1550nm

			X:Others
			90: 900um

			20: 2.0mm

			30: 3.0mm

			X: Others
			05: 0.5m

			10: 1.0m

			15: 1.5m

			X: Others
			OO:None

			FP: FC/PC

			FA: FC/APC

			SP: SC/PC

			SA: SC/APC

			STP: ST/PC

			STA: ST/APC

			LP: LC/PC

			LA: LC/APC

			X: Others

FAQ

Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time

A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
