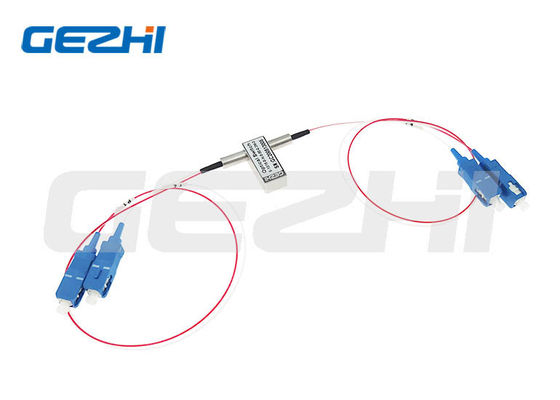

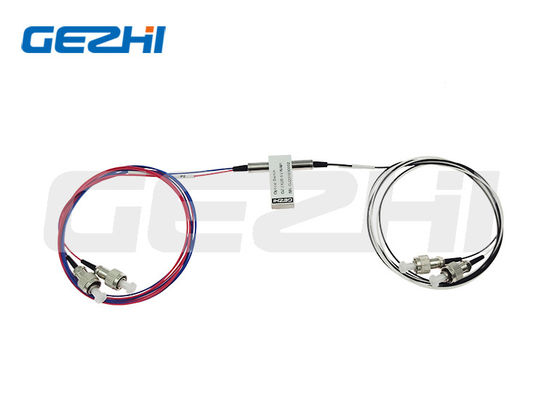

3V 2x2B Fiber Optical Switch with 1260-1650nm Wavelength and Latching or Non-Latching Control

Name: 3V 2x2B Fiber Optical Switch with 1260-1650nm Wavelength and Latching or Non-Latching Control
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 2x2B-SM-13/15-5N
Price: 71.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	2x2B-SM-13/15-5N
MOQ:	1pc
Price:	US$58-US$85

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Type:

FTTx Solutions

Use:

System Monitor

Warranty Time:

3 Years

Wavelength:

1260-1650nm

Voltage:

3V Or 5V

Fiber Connector:

LC/UPC, FC/APC, SC/APC Etc.

Port:

2x2B

Control Type:

Latching Or Non-Latching

Application:

Configurable OADM

Packaging Details:

Paper box

Supply Ability:

Negotiable

Highlight:

LC/UPC Fiber Optical Switches

3V Fiber Optical Switches

SC/UPC Fiber Switch

Product Description

3V 2x2B Fiber Optical Switches With LC/UPC LC/APC SC/UPC

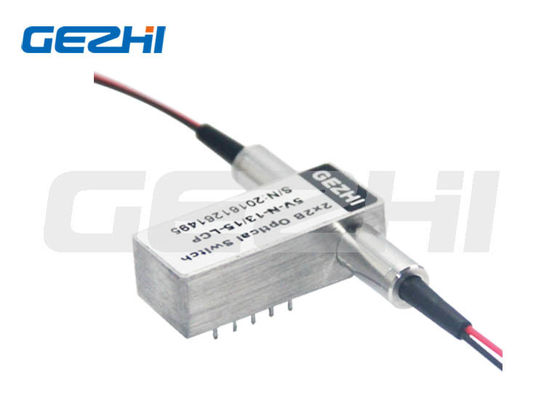

2x2 Bypass Opto-Mechanical Optical Switches

The 2x2B Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 2 incoming optical signals into 2 output fibers. This is achieved using an opto-mechanical configuration and activated via an electrical control signal. The switch has integrated electrical position sensors.

Based on thin film filter technology that provides a robust method of altering the light path, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.

Key Features & Applications

Features

Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching

Applications

Network switching
System monitoring
Channel Blocking
Module and System Integration
Metropolitan Area Network
Network protection and restoration

Technical Parameters

Parameters	Unit	GZ-FSW-2*2B
Wavelength Range	nm	850±40/1300±40 \| 1260～1650
Operating Wavelength	nm	850/1300 \| 1310/1550
Insertion Loss	dB	Typ:0.8 Max:1.2 \| Typ:0.6 Max:0.8
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	v	3.0 or 5.0
Lifetime	times	≥10⁷
Switch Time	ms	≤8
Transmission Power	mW	≤500
Operating Temperature	℃	-20～+70
Storage Temperature	℃	-40～+85
Weight	g	16
Dimension	mm	(L)27.0(W)12.0(H)8.2

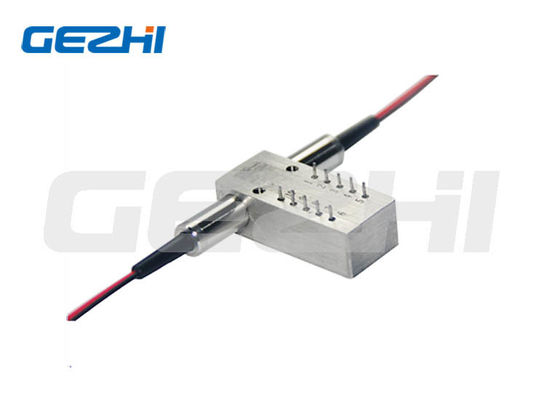

Pin Configuration

Parameters	Pins	Electric Drive	Status Sensor
2*2B Optical Path	Non-latching P1-P3	--	Close \| Open \| Open \| Close
2*2B Optical Path	Non-latching P1-P4,P2-P3	V+ \| -- \| -- \| GND	Open \| Close \| Close \| Open
2*2B Optical Path	Latching P1-P3	-- \| -- \| GND \| V+	Close \| Open \| Open \| Close
2*2B Optical Path	Latching P1-P4 P2-P3	V+ \| GND \| -- \| --	Open \| Close \| Close \| Open

Optical Route Diagrams

Frequently Asked Questions

Q1: Can I have a sample order? What is your MOQ?

A1: Sample order is welcome to test and check quality. We don't have MOQ, 1pcs sample is available. Also mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1 week. For big quantity and special products, please check lead time with our sales representative. We keep stock for some products and could ship within 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment terms: T/T, PayPal, Western Union, cash payment, ALI etc.

Q4: What is your warranty time?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we provide OEM service according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
