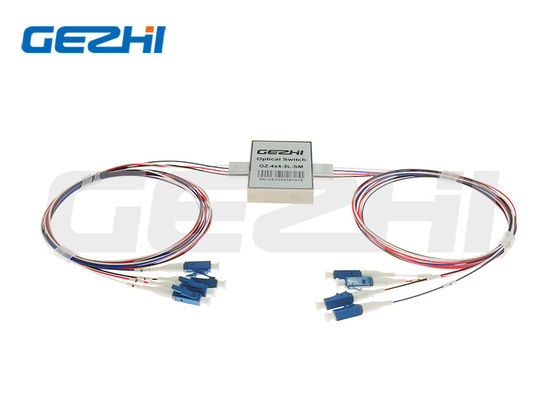

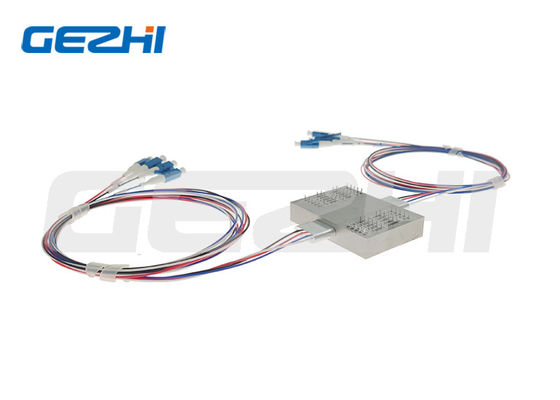

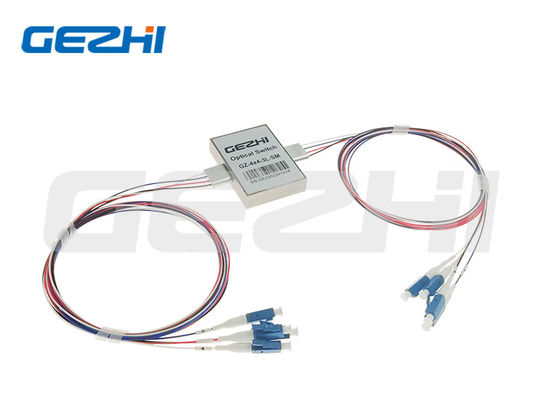

4x4 Fiber Optical Switch with 1260-1650nm Wavelength Low Insertion Loss and Fast Switching Speed

Name: 4x4 Fiber Optical Switch with 1260-1650nm Wavelength Low Insertion Loss and Fast Switching Speed
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: FSW-4x4-15-5N
Price: 372.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	FSW-4x4-15-5N
MOQ:	1pc
Price:	US$288-US$456
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Port:

4x4

Packaging Details:

Paper box

Supply Ability:

5000 pc per month

Highlight:

4x4 fiber optical switches

Mechanical Multimode fiber optical switches

4x4 single mode fiber switch

Product Description

Singlemode Multimode 4x4 Fiber Optical Switches Mechanical

4×4 Optical Switches

GEZHI Photonics' 4×4 Mechanical Fiber Optic Switch (4×4 Optical Switch) supports all wavelengths at 1260nm~1650nm or 850nm Multimode wavelength. It offers ultra-high reliability, low insertion loss, fast switching speed, and bi-directional performance. These optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection, Network Test System, and Instrumentations.

Features

Compact design, Miniature size
Short switching time
Bi-directional
Low optical distortions
Low cross talk
Low Insertion Loss
Wide operating wavelength Range

Applications

R&D in Laboratory
System monitoring
Metropolitan Area Network
Network protection and restoration
Instrumentation, testing, and measurement

Product Specifications

Parameters		GZ-FSW-4×4
Operating Wavelength	nm	1260~1620(SM),850(MM)
Insertion Loss	dB	≤1.0
Wavelength Dependent Loss	dB	≤0.40
Polarization Dependent Loss	dB	≤0.05
Temperature Dependent Loss	dB	≤0.20
Return Loss	dB	SM≥50 MM≥30
Cross Talk	dB	SM≥55 MM≥35
Switch Time	ms	≤8
Repeatability	dB	≤±0.02
Durability	times	≥107
Operating Voltage	V	3 or 5
Switch Type		Non-Latching/Latching
Operating Temperature	℃	－20~＋70
Storage Temperature	℃	－40~＋85
Optical Power	mW	≤500
Dimension	mm	52.7.0L×37.2W×10.0H

Frequently Asked Questions

Q1: Can I have a sample order? What is your MOQ?

A1: Sample order is welcome to test and check quality. We don't have MOQ, 1pcs sample is available. Also mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1 week. For big quantity and special products, please check lead time with our sales representative. We keep stock for some products and could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union, cash payment, ALI etc.

Q4: What is your warranty time?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service according to your requirements, designing products label, logo, PN, SN, and package.
