Product Details:
Payment & Shipping Terms:
|
| Type: | FTTx Solutions | Warranty Time: | 3 Years |
|---|---|---|---|
| Port: | 4x4 | Wavelength: | 1260-1650nm |
| Voltage: | 3V Or 5V | Application: | Configurable OADM |
| Fiber Connector: | LC/UPC, LC/APC, SC/UPC Etc. | ||
| High Light: | 4x4 fiber optical switches,Mechanical Multimode fiber optical switches,4x4 single mode fiber switch |
||

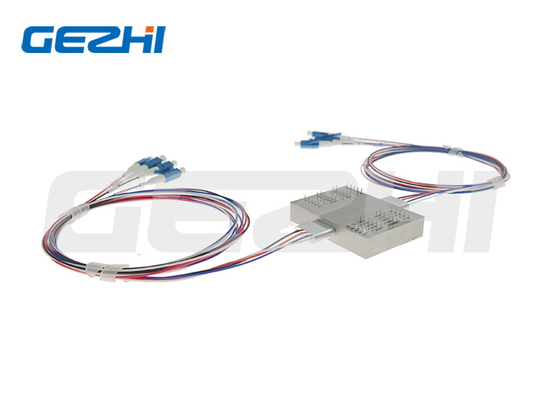

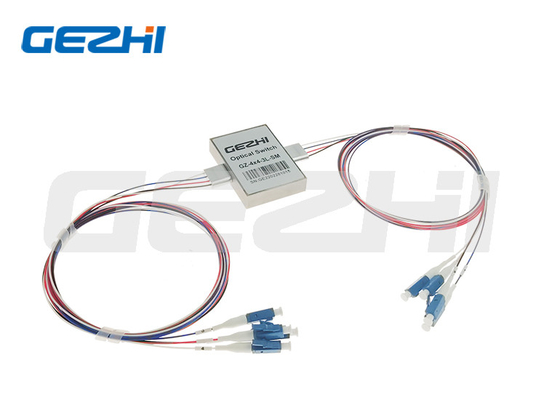

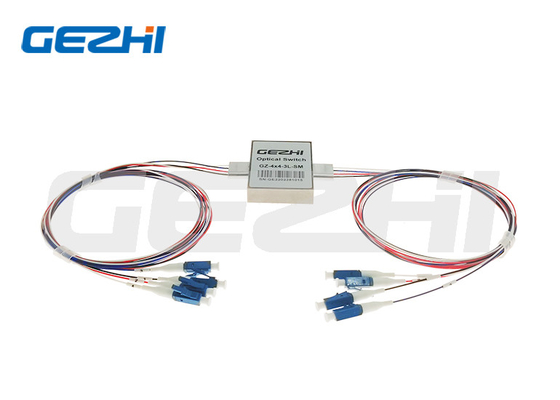

4×4 Optical Switches
Description
GEZHI Photonics’ 4×4 Mechanical Fiber Optic Switch (4×4 Optical Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
|
Features Compact design, Miniature size Short switching time Bi-directionalLow optical distortions Low cross talk, Low Insertion Loss Wide operating wavelength Range |
Applications R&D in Laboratory System monitoring Metropolitan Area Network Network protection and restoration Instrumentation, testing, and measurement |
PRODUCT SPECIFICATIONS
| Parameters | GZ-FSW-4×4 | |
| Operating Wavelength | nm | 1260~1620(SM),850(MM) |
| Insertion Loss | dB | ≤1.0 |
| Wavelength Dependent Loss | dB | ≤0.40 |
| Polarization Dependent Loss | dB | ≤0.05 |
| Temperature Dependent Loss | dB | ≤0.20 |
| Return Loss | dB | SM≥50 MM≥30 |
| Cross Talk | dB | SM≥55 MM≥35 |
| Switch Time | ms | ≤8 |
| Repeatability | dB | ≤±0.02 |
| Durability | times | ≥107 |
| Operating Voltage | V | 3 or 5 |
| Switch Type | Non-Latching/Latching | |
| Operating Temperature | ℃ | －20~＋70 |
| Storage Temperature | ℃ | －40~＋85 |
| Optical Power | mW | ≤500 |
| Dimension | mm | 52.7.0L×37.2W×10.0H |
FAQ
Q1:Can I have a sample order? What is your MOQ?
