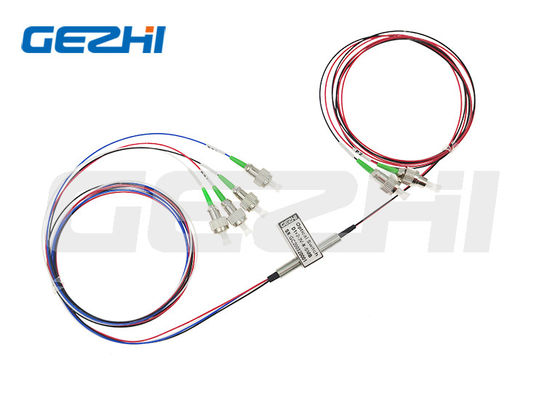

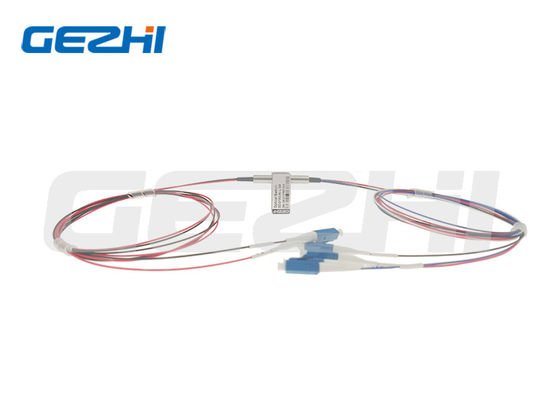

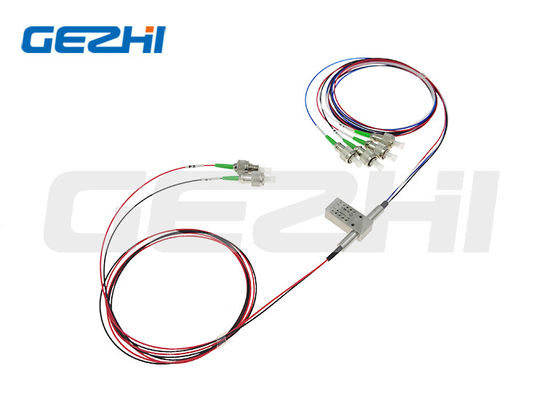

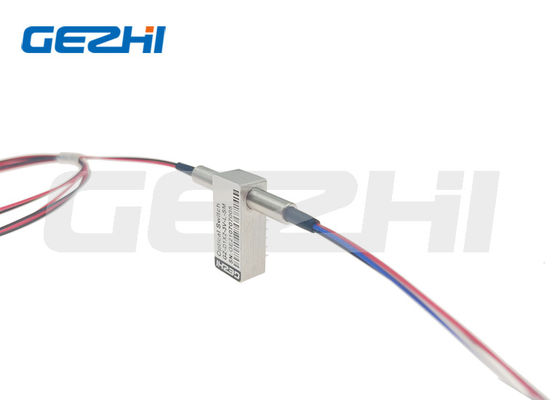

Dual 1x2 Ports Fiber Optical Switch 1260-1650nm with Latching or Non-Latching Control
  • name
  • name
  • name
  • name

Dual 1x2 Ports Fiber Optical Switch 1260-1650nm with Latching or Non-Latching Control

Brand Name: GEZHI or OEM
Model Number: D1x2-SM-13/15-5N
MOQ: 1pc
Price: US$46-US$98
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Wavelength Range:
1260-1650nm
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

D1x2 Fiber Optical Switches

,

1650nm Fiber Optical Switches

,

1260nm switch fiber optic 4 port

Product Description
D1x2 Ports Fiber Optical Switches 1260-1650nm
Dual 1x2 Opto-Mechanical Optical Switches

The D1x2 Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 2 incoming optical signals into 4 output fibers. This is achieved using an opto-mechanical configuration and activated via an electrical control signal. The switch has integrated electrical position sensors.

Based on thin film filter technology that provides a robust method of altering the light path, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.

Features & Applications
Features Applications
  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Crosstalk
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Latching and Non-latching
  • Metropolitan Area Network
  • R&D in Laboratory System
  • Monitor Configurable
  • OADM Component testing
Product Specifications
Parameters GZ-FSW-D1x2
670～980 nm 1260～1650 nm
Wavelength Range nm 670～980 1260～1650
Testing Wavelength nm 850±40/1300±40 1310/1550
Insertion Loss dB Typ:1.0 Max:1.5 Typ:1.0 Max:1.5
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power supply v 3.0 or 5.0
Lifetime time ≥10⁷
Switch Time ms ≤8
Transmission Power mw ≤500
Operation Temperature ℃ -20～+70
Storage Temperature ℃ -40～+85
Weight g 16
Dimension mm (L)27×(W)12×(H)8.2 (±0.2mm) Customization is available
Electrical Specifications
Specifications Voltage Current Resistance
5V Latching 4.5~5.5 36~44mA 125Ω
5V Non-latching 4.5~5.5 26~32mA 175Ω
3V Latching 2.7~3.3 54~66mA 50Ω
3V Non-latching 2.7~3.3 39~47mA 70Ω
High Quality & Stability Material
Dual 1x2 Ports Fiber Optical Switch 1260-1650nm with Latching or Non-Latching Control 0
Dual 1x2 Ports Fiber Optical Switch 1260-1650nm with Latching or Non-Latching Control 1
Dual 1x2 Ports Fiber Optical Switch 1260-1650nm with Latching or Non-Latching Control 2
Use Original New and Stable Panasonic Relay
Use High Reliable Prism
Use High Quality C-Lens and Collimator
Product Details
Dual 1x2 Ports Fiber Optical Switch 1260-1650nm with Latching or Non-Latching Control 3
Dual 1x2 Ports Fiber Optical Switch 1260-1650nm with Latching or Non-Latching Control 4
Dual 1x2 Ports Fiber Optical Switch 1260-1650nm with Latching or Non-Latching Control 5
Frequently Asked Questions
Q1: Can I have a sample order? What is your MOQ?
A1: Sample order is welcome to test and check quality. We don't have MOQ, 1pcs sample is available. Also mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1 week. For big quantity and special products, please check lead time with our sales representative. We keep stock for some products and could ship within 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment terms: T/T, PayPal, Western Union, cash payment, AliPay etc.
Q4: What is your warranty time?
A4: 3 years warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we provide OEM service according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
