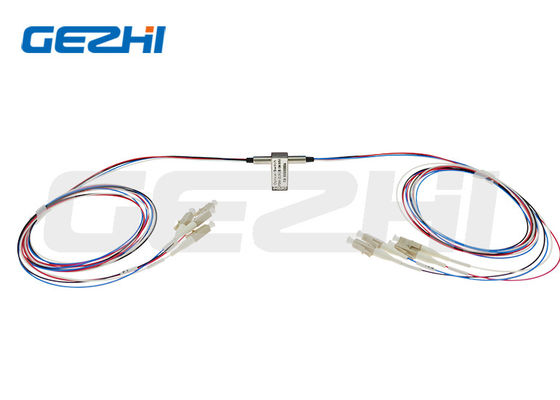

Dual 2x2 Port 5V Voltage Latching/Non-Latching Mechanical Optical Bypass Switch for Fiber Networks
  • name
  • name
  • name
  • name

Dual 2x2 Port 5V Voltage Latching/Non-Latching Mechanical Optical Bypass Switch for Fiber Networks

Brand Name: GEZHI or OEM
Model Number: D2x2B-SM-13/15-5N
MOQ: 1pc
Price: US$68-US$108
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Operating Wavelength:
850±40/1300±40 | 1260～1620 Nm
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

5V fiber bypass switch

,

Non Latching fiber bypass switch

,

Latching switch fiber optic 4 port

Product Description

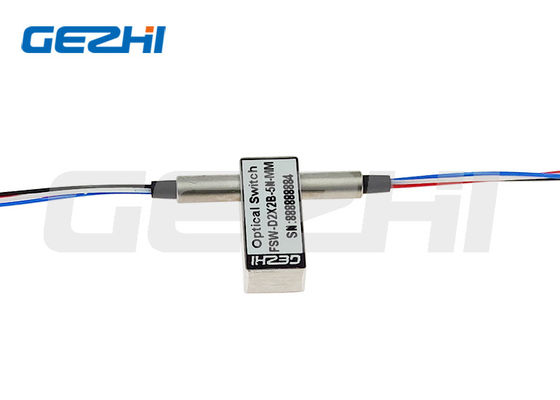

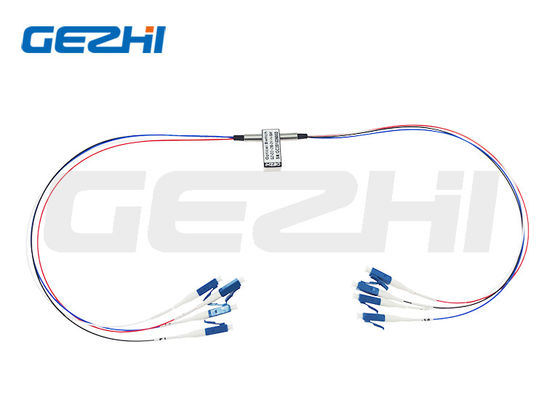

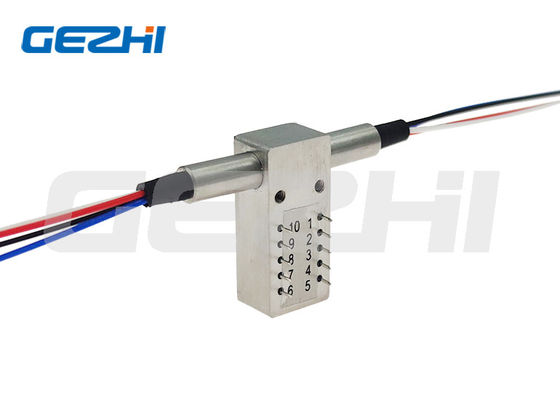

D2x2B Optical 5V Fiber Bypass Switch Latching / Non Latching Dual 2x2 Mechanical
Dual 2x2 Bypass Opto-Mechanical Optical Switches (4x4 Fiber Optical Switch)

GEZHI Photonics Dual 2x2B Single-mode or Multi-Mode Mechanical Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal.

GEZHI's Dual 2x2B (D2x2B) SM or MM Mechanical Optical Switch supports all wavelengths at Singlemode 1310/1550nm and Multimode 850nm wavelength. It offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection, Network Test System and Instrumentations.

Features Applications
  • Low cross talk
  • Low Insertion Loss
  • Wide operating wavelength Range
  • Seam-seal package
  • Highly Stable & Reliable
  • Epoxy-free on Optical Path
  • Single mode or Multimode optional
  • Fail-Safe Latching and Non-latching
  • Network switching
  • System monitoring
  • Module and System Integration
  • Metropolitan Area Network (MAN)
  • Network protection and restoration
  • Instrumentation, testing, and measurement
Technical Parameters
Parameter Unit GZ-FSW-D2x2B
Operating wavelength nm 850±40/1300±40 | 1260～1620
Wavelength nm 850&1300 | 1310&1550
Insertion loss dB Typ:1.0 Max:1.5
Return loss dB MM≥30 SM≥50
Cross talk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Voltage v 3.0 or 5.0±0.5
Operating life Time ≥10⁷
Switch time ms ≤8
Power handling mW ≤500
Operating temperature ℃ -20～+70
Storage temperature ℃ -40～+85
Fiber color P1,P1':Black P2,P2':Red P3,P3':Blue P4,P4':White
Size mm 27.0×12.0×8.2
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors.
