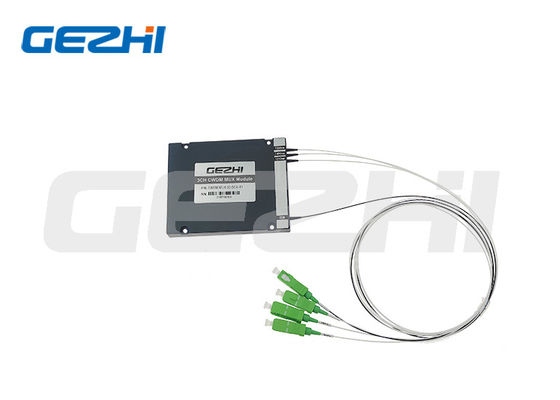

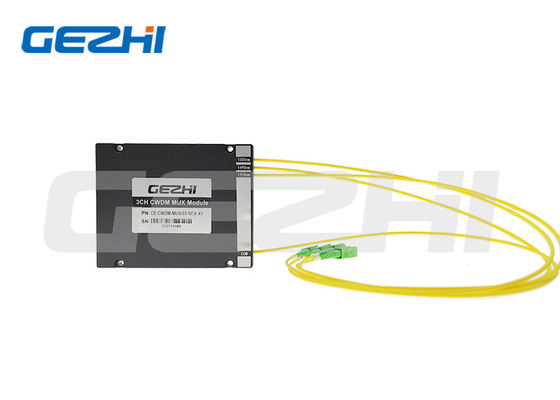

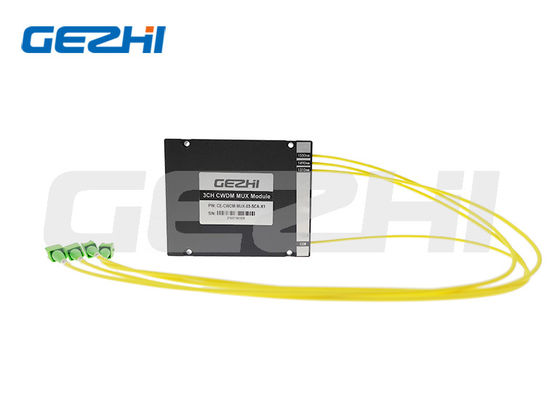

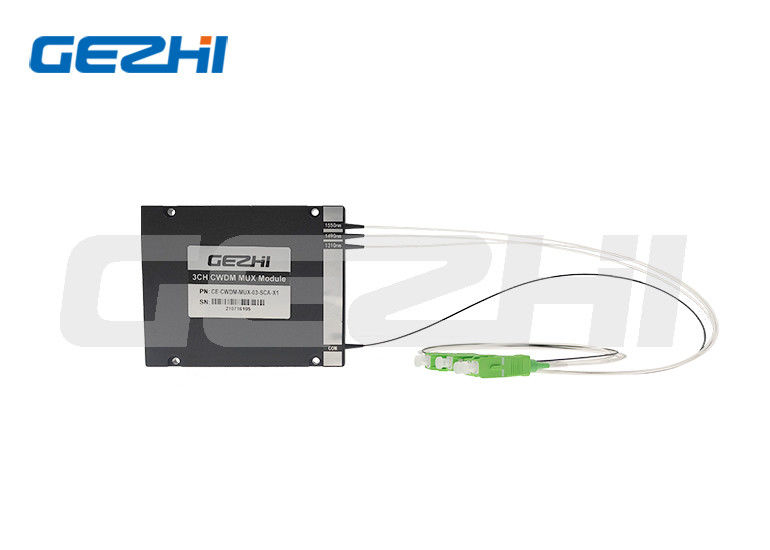

3 Channel CWDM Mux Demux Module Single Fiber 1470nm 1490nm 1510nm 1530nm for WDM Systems

Name: 3 Channel CWDM Mux Demux Module Single Fiber 1470nm 1490nm 1510nm 1530nm for WDM Systems
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 3 Channel CWDM Splitter Module
Price: 83.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	3 Channel CWDM Splitter Module
MOQ:	1pc
Price:	US$58-US$108
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Use:

WDM System

Channel Spacing:

20nm

Center Wavelength:

1270~1610nm

Warranty Time:

3 Years

Application:

Data Center

Fiber Connector:

LC/UPC, FC/APC, SC/APC Etc.

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

3 Channel Cwdm Splitter

1470nm Cwdm Splitter

1490nm CWDM MUX DEMUX

Product Description

3 Channel CWDM Splitter Module Single Fiber 1470nm 1490nm 1510nm 1530nm

This CWDM Mux/Demux (optical multiplexer/demultiplexer) Module provides a cost-effective and simplified alternative to DWDM systems for metro access network applications. With wide channel spacing of 20nm, these systems eliminate the need for precise wavelength control in transmitter lasers, enabling the use of cost-effective non-cooled lasers and lower-cost passive components.

Key Features

Low Insertion Loss
Low Crosstalk
High Stability & Reliability
Epoxy-free on Optical Path

Applications

Line Monitoring
WDM Network
Telecommunication
Access Network

Product Specifications

Parameter	Unit	CWDM Mux Demux
Channel Spacing	nm	20nm
Center Wavelength	nm	1270~1610 or 1271~1611
Channel Passband	nm	±6.5
Channel Number	/	4CH \| 8CH \| 16CH
Insertion Loss	dB	<1.5 \| <2.5 \| <5.5 or <3.5(with skip)
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>40
Isolation @Express Port	dB	>15
Polarization Dependent Loss	dB	<0.2
Polarization Mode Dispersion	dB	<0.1
Directivity	dB	>50
Return Loss	dB	UPC >45 APC>50
Power Handling	mW	<500 (High Power type available)
Fiber Type	/	SMF-28e (Polarization Maintaining Type available)
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Package Type	mm	ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

ABS Package Size

Rackmount Package Size

Ordering Information

CWDM	Number of Channels	Configuration	Module type	Cable type	Fiber length	connector
CWDM	01=1Channel 02=2 Channel 03=3 Channel 04=4 Channel ... 16=16Channel 17=17Channel 18=18Channel	M=Mux D=Demux A=Mux+Demux	A0=ABS box 80x60x12mm A1=ABS box 100x80x10mm A2=ABS box 120x80x18mm A3=ABS box 140x115x15mm L1=LGX 12929130mm L2=LGX insert in 2slot Rack L4=LGX insert in 4slot Rack R1=19" 1 U Rack R2=2slot 19″1U Rack R4=4slot 19″1U Rack S=Specify	09=900um loose tube 20=2.0mm 30=3.0mm	05=0.5m 10=1.0m 15=1.5m S=Specify	00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC S=Specify

Frequently Asked Questions

Q1: Can I have a sample order? What is your MOQ?

A1: Sample orders are welcome for quality testing. We have no minimum order quantity - even 1 piece samples are available. Mixed samples are also acceptable.

Q2: What's the Lead time?

A2: Normal lead time is approximately 1 week. For large quantities and special products, please check lead time with our sales representative. We maintain stock for some products and can ship within 1-3 days after payment receipt.

Q3: What are the payment terms?

A3: We accept T/T, PayPal, Western Union, cash payment, and ALI payments.

Q4: What is your warranty time?

A4: We provide a 3-year warranty on all products.

Q5: Could I use our own logo, label and package?

A5: Yes, we offer OEM services according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
